X-Stream Operator’s Manual
WM-OM-E Rev I 65

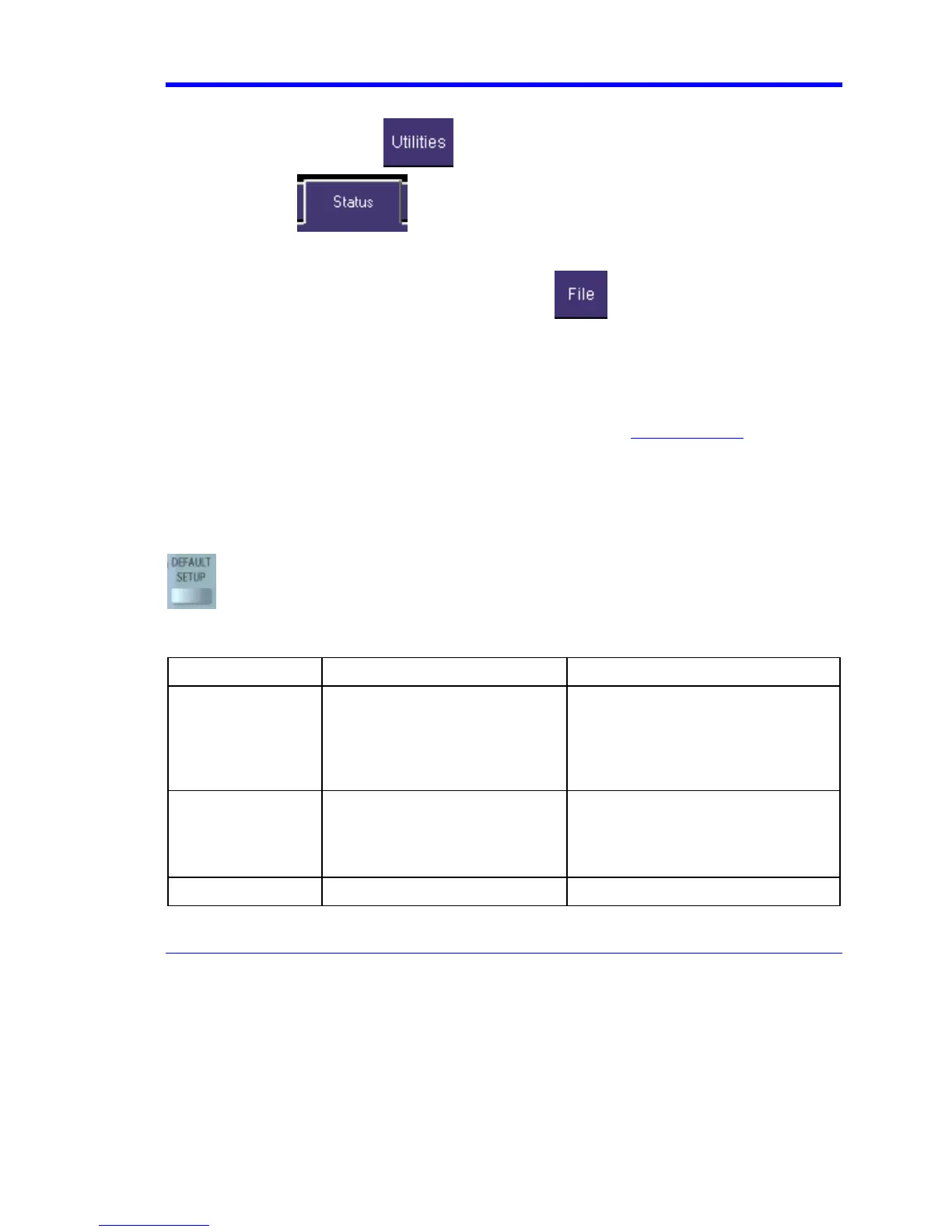

installed options, proceed as follows:
1. In the menu bar, touch
.
2. Touch the
tab.
You can find information related to hard drive memory, etc. as follows:
1. Minimize the instrument application by touching
, then selecting Minimize in the
drop-down menu.
2. Touch the Start taskbar button and, per usual Windows® operation, open Windows
Explorer.
Loading Software Upgrades
You can download software upgrades from the LeCroy Web site at www.lecroy.com
. Follow the
on-screen instructions to download the software. Click the Release Notes link to learn about new
features and fixes.
Default Settings
WaveMaster and WavePro 7000A Series Scopes
You can reset the scope to default settings by simply pressing the Default Setup push button
on the front panel. This feature turns on Channel1 and Channel 2, with no processing
enabled.
Other default settings are as follows:
Vertical Timebase Trigger
50 mV/div 50.0 ns/div
Coupling: DC (WaveSurfer), DC50
(WaveMaster, DDA, SDA), AC1M
(WavePro)
Channel: C1
Level: 0 mV
0 V offset
10.0 GS/s (WaveMaster, WavePro,
DDA, SDA)
5 GS/s (WaveRunner)
1 GS/s (WaveSurfer)
edge trigger
positive edge
0 s delay Auto trigger mode
