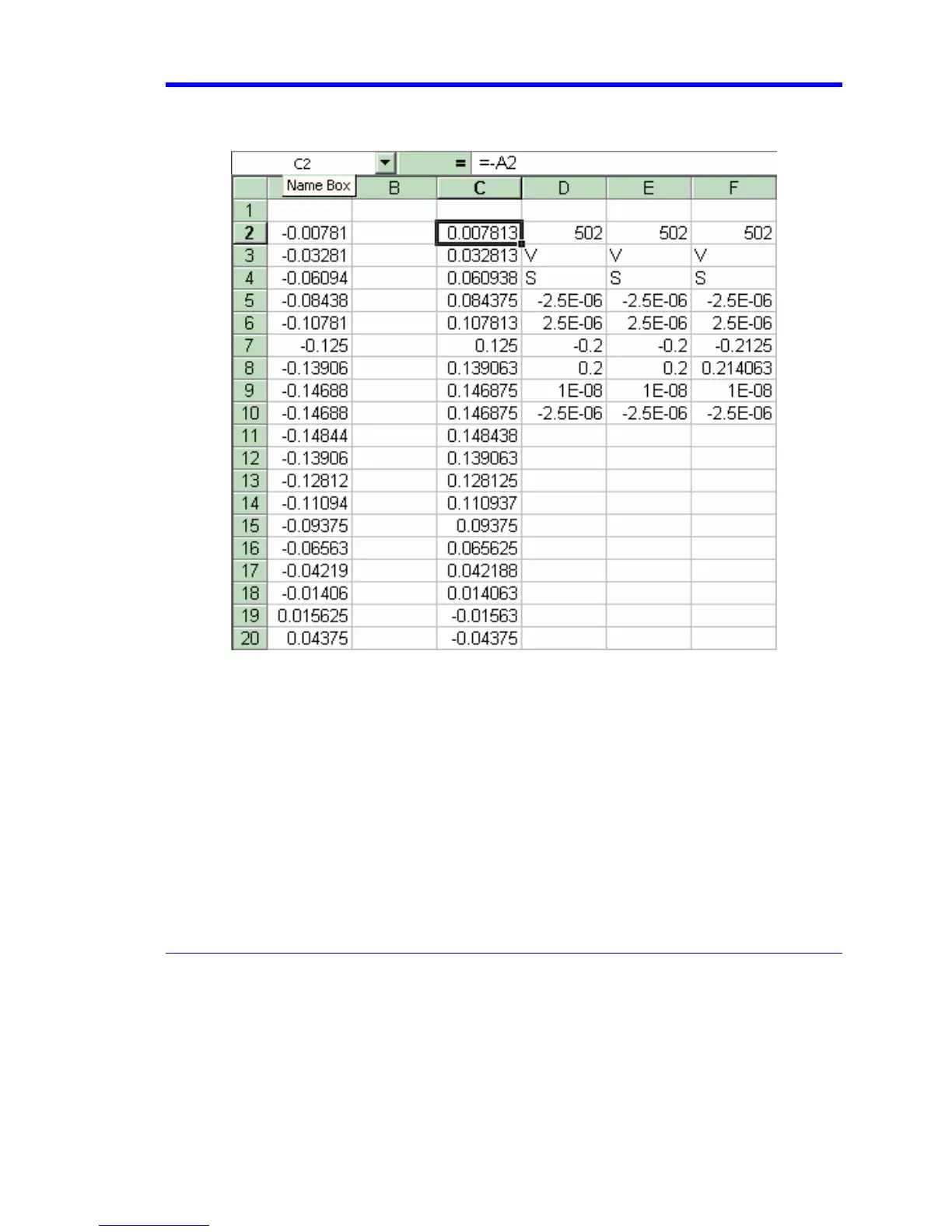

To get the output values in column C, we set C2 = - A2 and copy this formula down the column. This
is the only action needed in Excel, and can be seen in the next figure:
Simple Excel Example 2
In this example we use Excel to invert or negate a waveform. The first figure shows a part of the
instrument screen. The upper trace (C1) is the original signal. The lower trace (F1) is the result
calculated in Excel and displayed on the screen.
