266 WM-OM-E Rev I
All subsequent acquisitions will use this scale
until you make a change.

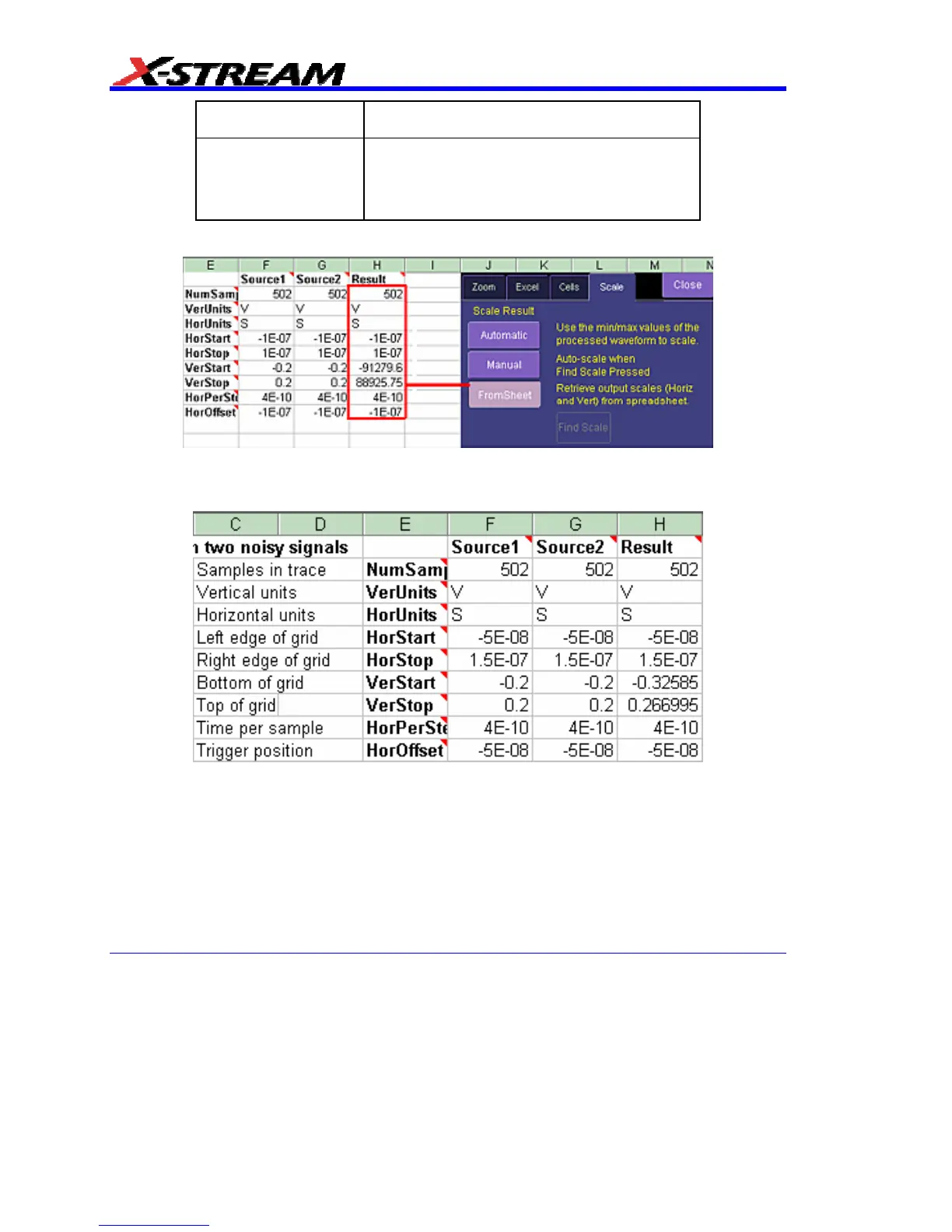

From Sheet
The scale is taken from the specified cells in the
Excel sheet, H2 through H10 in the example
above, where cell H2 was specified as the top of
the data set, as depicted below.
Trace Descriptors
The next figure explains the meanings of the descriptors for each trace.
Multiple Inputs and Outputs
If you invoke two or more instrument parameter functions or waveform functions that call Excel, you
will find that they all refer to the same spreadsheet by default. Thus, your spreadsheet can use the
data from several waveforms, and you can derive many different combinations of output
parameters and waveforms, including some of each, from your spreadsheet. You only have to be
careful about the positioning of your cell ranges within the sheet so that no conflicts occur.
Because filling cells in the spreadsheet is a relatively slow process, all unwanted sources (inputs)
should be left disabled (unchecked). For example, if you want one waveform and two parameters
