X-Stream Operator’s Manual
WM-OM-E Rev I 213
Waveform Gated Parameters
To Set Up Waveform Qualifiers
1. From the menu bar, select Measure, then Measure Setup... from the drop-down menu.
2. Touch a Px tab to open the setup dialog.
3. Touch inside the Source field and select a source from the pop-up menu.
4. Touch inside the Measure field and select a parameter from the pop-up menu.

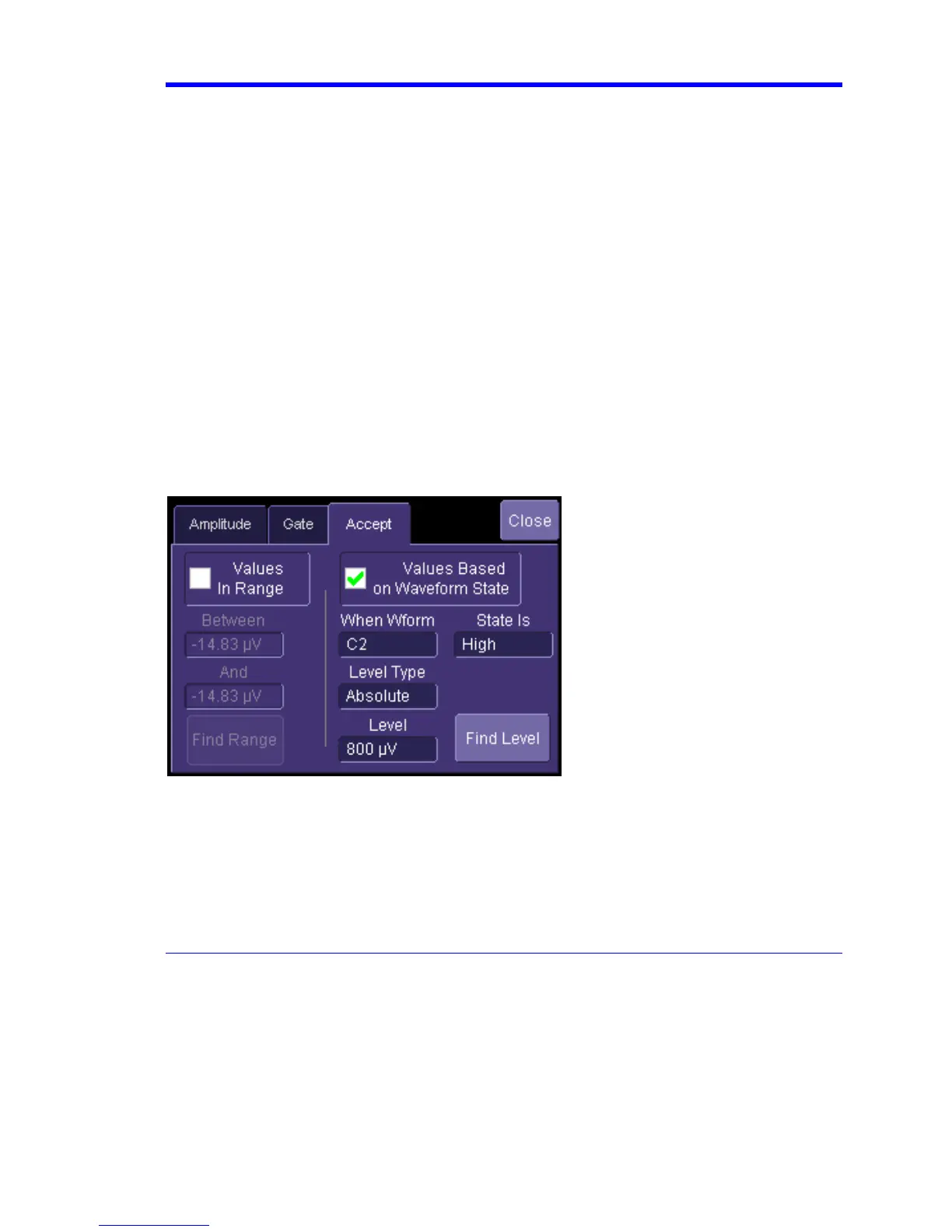

5. Touch the Accept tab of the right-hand dialog, then touch the Values Based on
Waveform State checkbox.
6. Touch inside the When Wform field and select the gating source.
7. Touch inside the State Is field and select High or Low from the pop-up menu. Parameter
measurements on the subject waveform will only be taken when the gating waveform is in
the selected state.
8. Touch inside the Level Type field and select Absolute or Percent from the pop-up menu.
9. Touch inside the Level field and enter the crossing level value at which you want
measurements to begin. Alternatively, touch the Find Level button to automatically select
the 50% level of your gating waveform:
