DISPLAY FORMATS
Display Setup
1. In the menu bar, touch Display; then touch Display Setup in the drop-down menu.

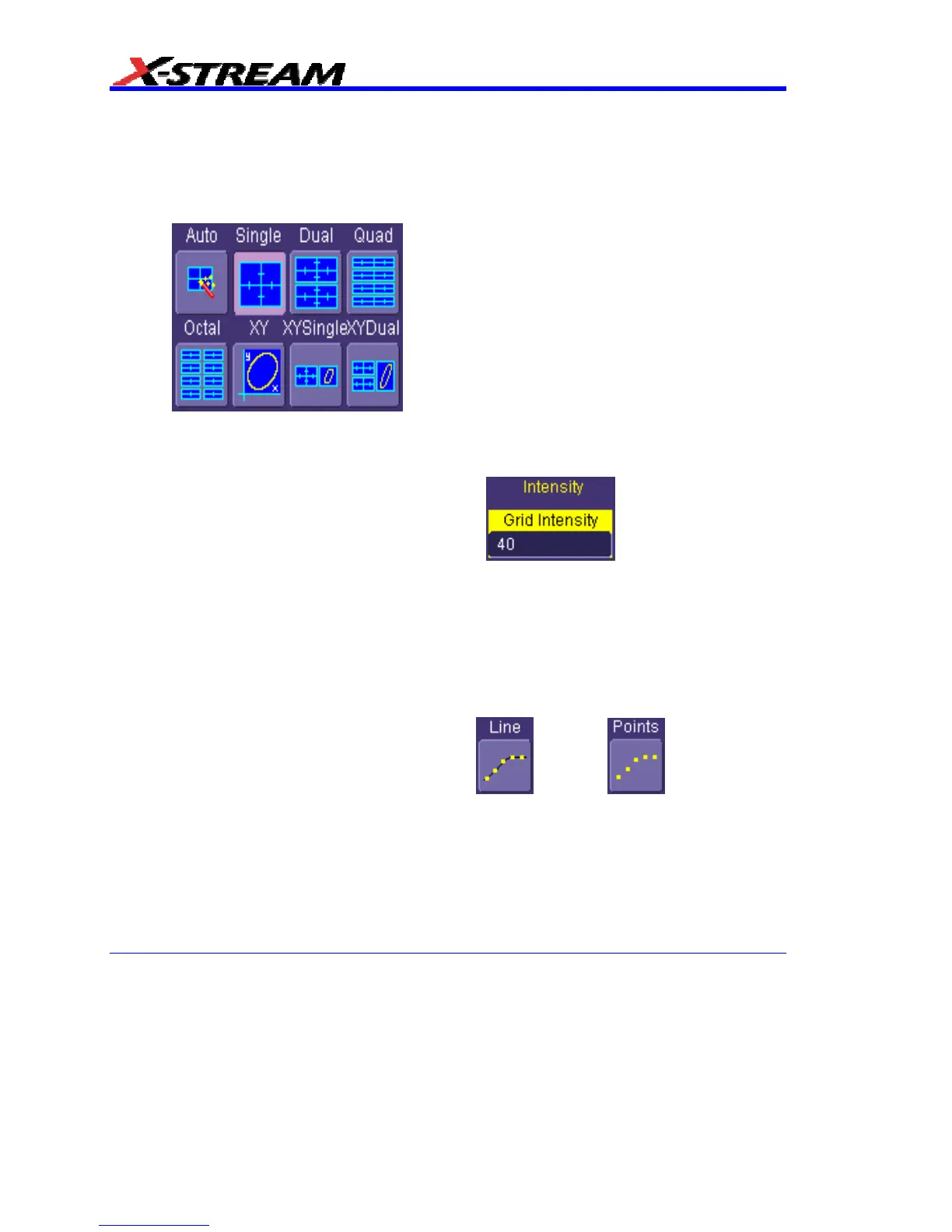

2. Touch one of the Grid combination buttons:
.
Autogrid automatically adds or deletes grids as you select more or fewer waveforms to
display.
3. Touch inside the grid Intensity data entry field
and enter a value from 0
to 100 using the pop-up keypad.
4. Touch the Grid on top checkbox if you want to superimpose the grid over the waveform.
Depending on the grid intensity, some of your waveform may be hidden from view when the
grid is placed on top. To undo, simply uncheck Grid on top.
5. Touch the Axis labels checkbox to permanently display the values of the top and bottom
grid lines (calculated from volts/div) and the extreme left and right grid lines (calculated
from the timebase).
6. Choose a line style for your trace: solid Line
or Points .
Sequence Mode Display
To a set up Sequence Mode display, you must first have selected Sequence trigger mode in the
Timebase "Horizontal" dialog. You must also have entered a Num Segments value.
1. In the menu bar, touch Display; then touch Display Setup in the drop-down menu.
2. Touch inside the Display Mode field and select a display mode from the pop-up menu.
To Next Page
