X-Stream Operator’s Manual
WM-OM-E Rev I 129

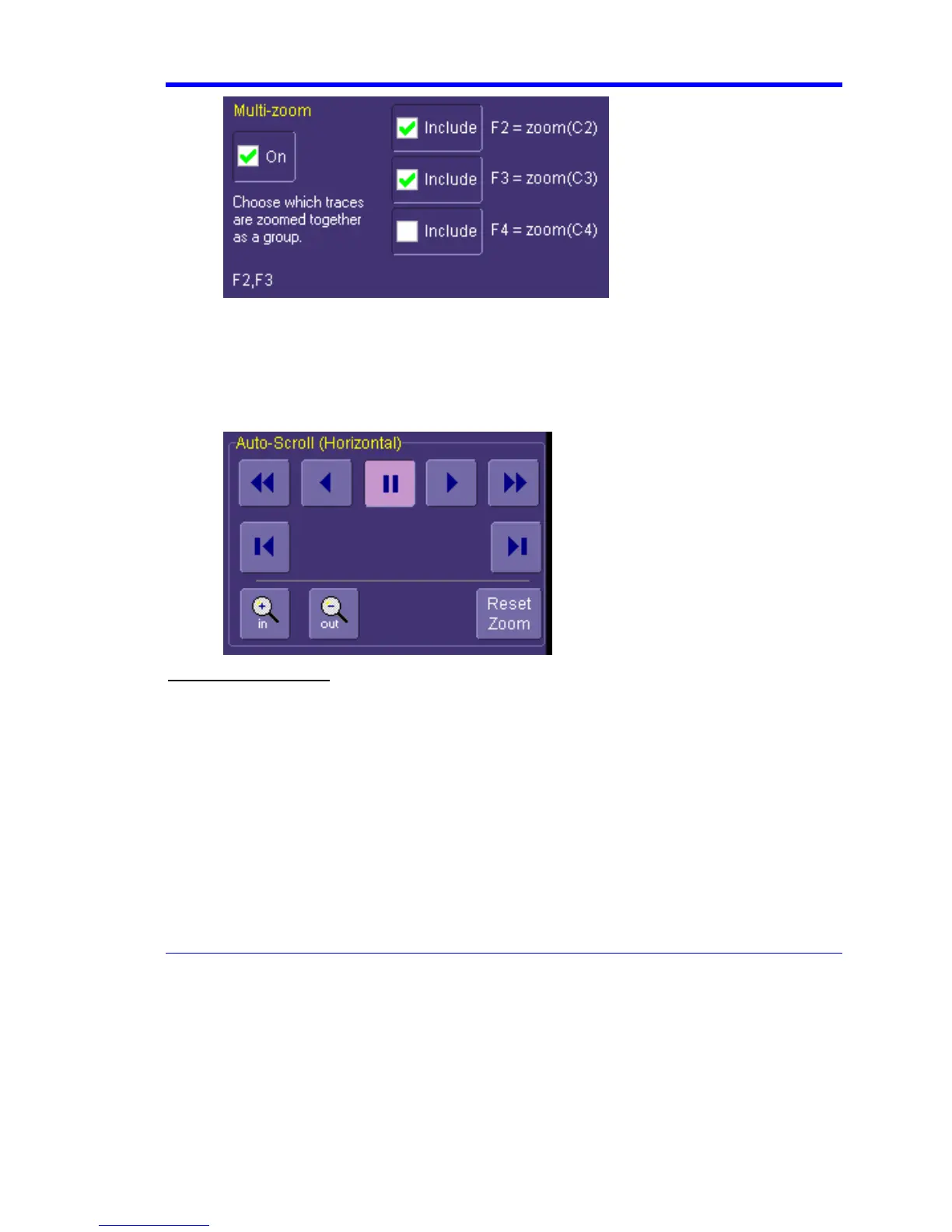

Here the user has chosen to include only F2 and F3 in the Multi-zoom, even though F4 is
also a zoom function and is also displayed. Thus, the scrolling feature will not affect zoom
F4.
6. Use the Auto-Scroll buttons at the right of the Multi-Zoom dialog to control the zoomed
section of your waveforms:
To Turn Off Multi-Zoom
1. In the menu bar, touch Math, then Math Setup... in the drop-down menu.
2. Touch the Multi-Zoom On checkbox to turn off Multi-zoom.
XY Display
Use XY displays to measure the phase shift between otherwise identical signals. You can display
either voltage on both axes or frequency on both axes. The traces must have the same X-axis. The
shape of the resulting pattern reveals information about phase difference and frequency ratio.
To Set Up XY Displays
1. In the menu bar, touch Display; then touch Display Setup... in the drop-down menu.
2. Choose an XY display by touching one of the XY display mode buttons
