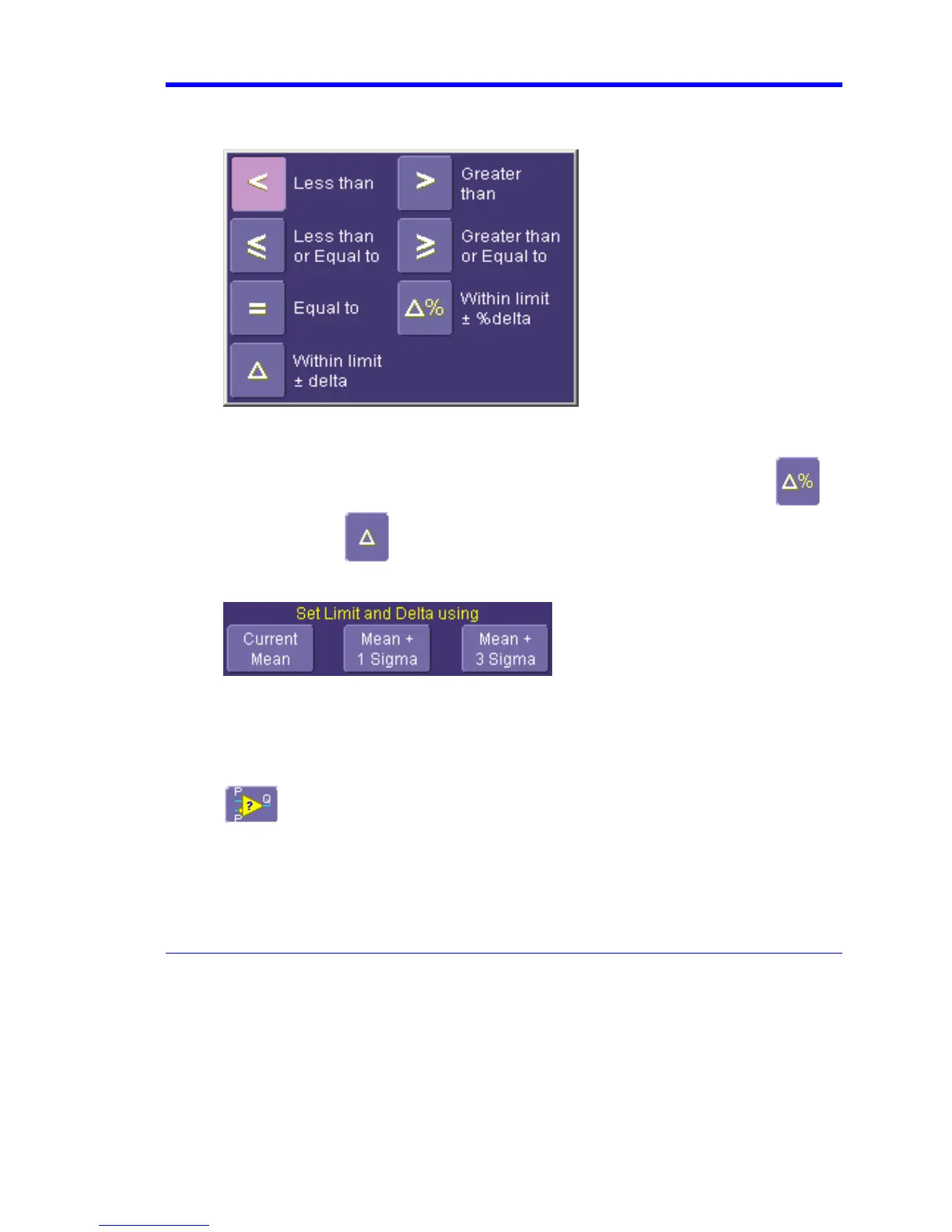

6. Touch inside the Condition field in the "ParamCompare" mini-dialog and select a math
operator from the pop-up menu:
.
7. Touch inside the Limit field and enter a value, using the pop-up numeric keypad. This
value takes the dimensions of the parameter that you are testing. For example, if you are
testing a time parameter, the unit is seconds. If you chose either WithinDeltaPct
or
WithinDeltaAbs
from the Condition menu, you also have the choice of setting the
limit by means of the statistical buttons at the bottom of the "ParamCompare" dialog:
Comparing Dual Parameters
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch a Qx tab; a setup dialog for that position will open.
3. Touch inside the Condition field in the main dialog and select DualParamCompare
4. Touch inside the Source1 and Source2 fields and select a source from the pop-up menu.
5. Touch inside the "ParamCompare" mini-dialog field and select a source from the pop-up
menu.
6. Touch inside the Compare Values field and select All or Any from the pop-up menu
