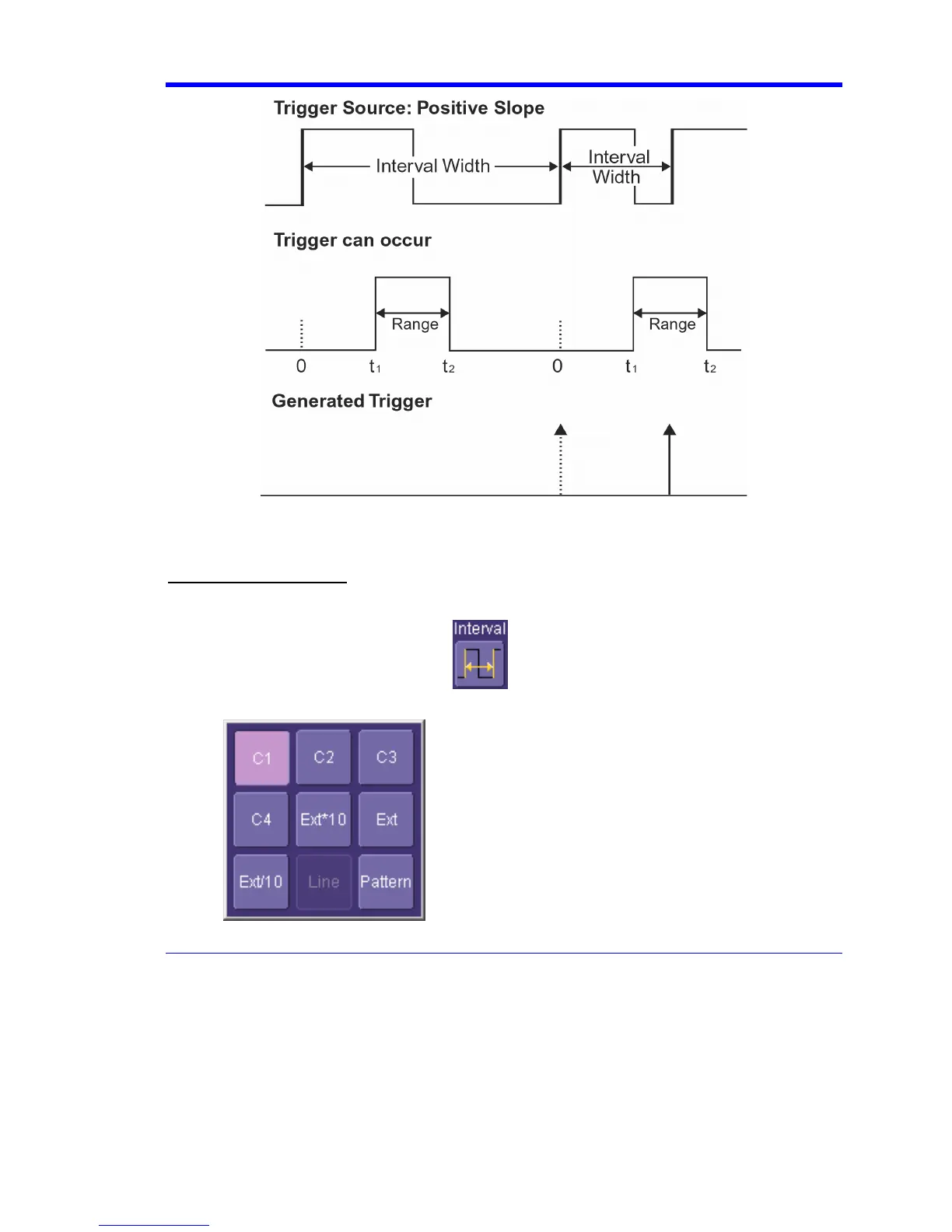

Interval Trigger that triggers when the interval falls within the selected range:
t
1
= range's lower time limit; t
2
= range's upper limit. The broken upward-pointing arrow indicates a potential
trigger, while the bold one indicates where the actual trigger occurs on the positive edge within the selected
range.
To Set Up Interval Trigger
1. In the menu bar, touch Trigger, then Trigger Setup... in the drop-down menu.
2. Touch the Interval trigger button
3. Touch inside the Trigger On data entry field and select a source on which to trigger:
