in memory (M1-M4).
4. Touch inside the Trace Title data entry field if you want to change the default name of your
waveforms. Use the pop-up keyboard to type in the new name.
Note: You can change the name but not the sequence number.
CAUTION
If you use a name that ends in a number instead of a letter, the instrument may truncate the
number. This is because, by design, the first waveform is automatically numbered 0, the
second 1, etc. For example, if you want to use waveform name "XYZ32" but it is not
preceded by waveforms XYZ0 through XYZ31, the waveform will be renumbered with the
next available number in the sequence.
If you need to use a number in your waveform's name, it is recommended that you append
an alpha character at the end of the number : "XYZ32a" for example.

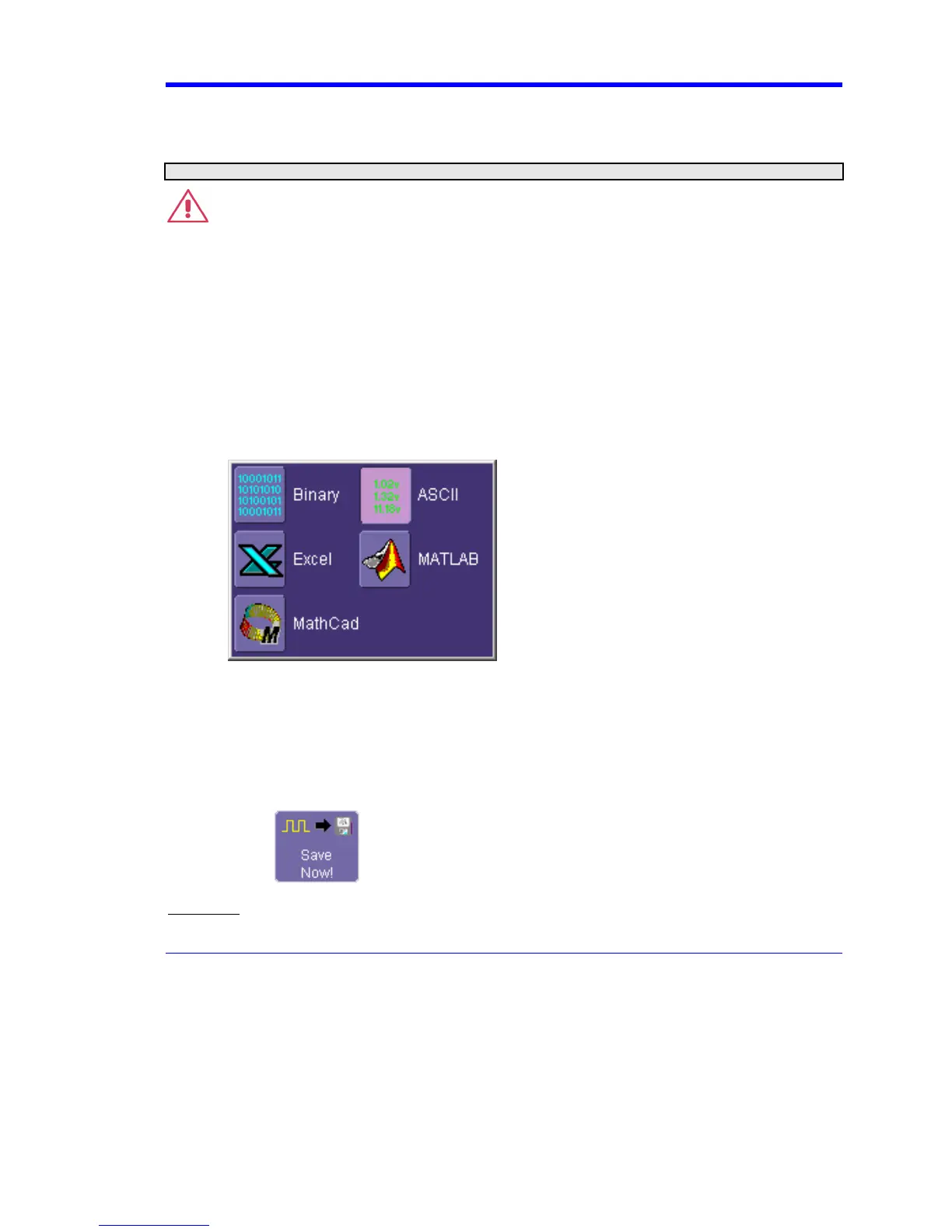

5. If you are saving to file, touch the Data Format field and select a format type from the
pop-up menu:
.
If you select ASCII or Excel, also touch the SubFormat field and select either Time Data
or Time & Ampl. Then touch the Delimiter field and select a delimiter character from the
pop-up menu: comma, space, semicolon, or tab.
6. Touch the Browse button for the Save file in directory field and browse to the location
where you want the file saved. The file name is assigned automatically and is shown below
the field.
7. Touch
.
Auto Save
You can also enable Auto Save from this dialog by touching one of the Auto Save buttons
To Next Page
