320 WM-OM-E Rev I

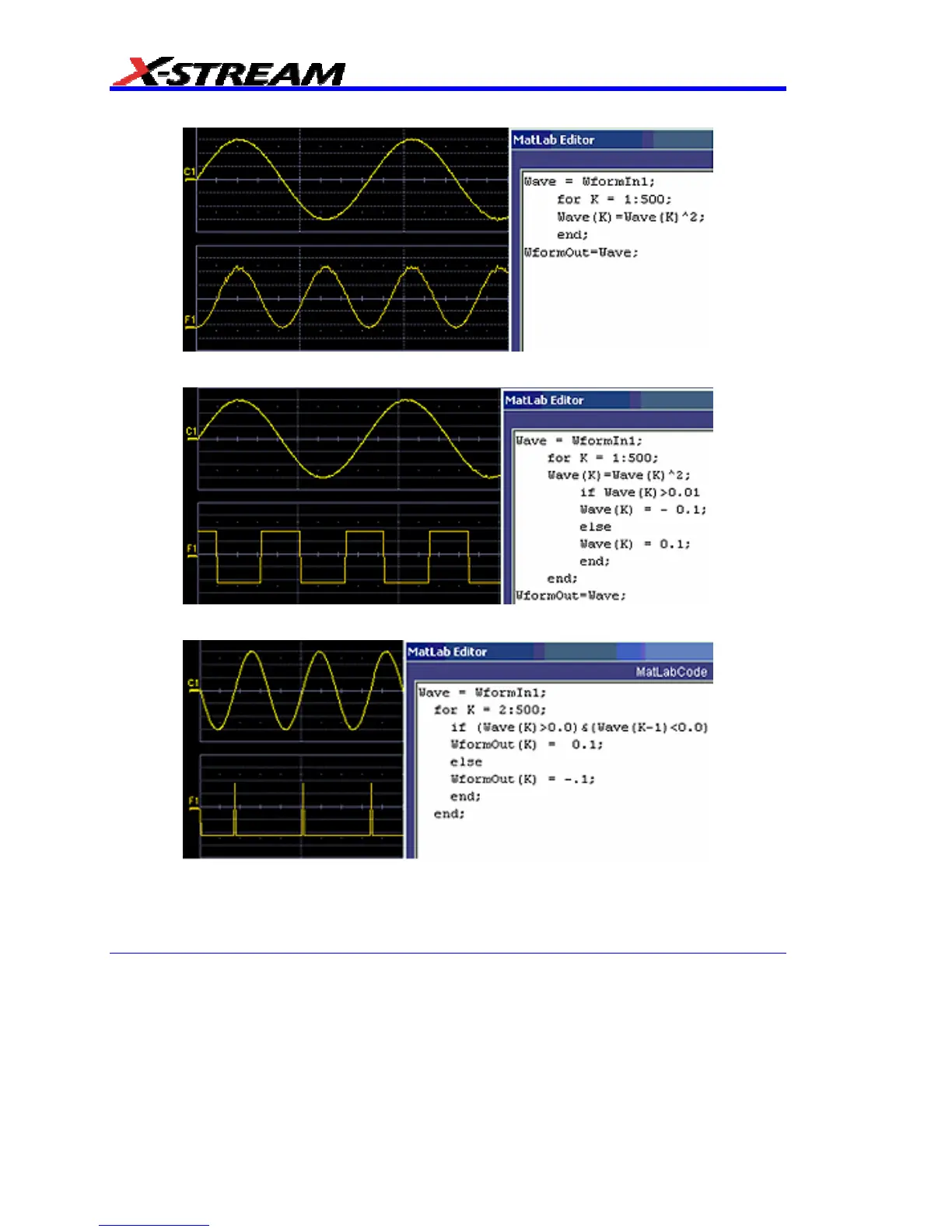

Square the input signal.

Create pulses from a sinusoid.

Create pulses at the zero crossings of the signal.
