X-Stream Operator’s Manual

WM-OM-E Rev I 329

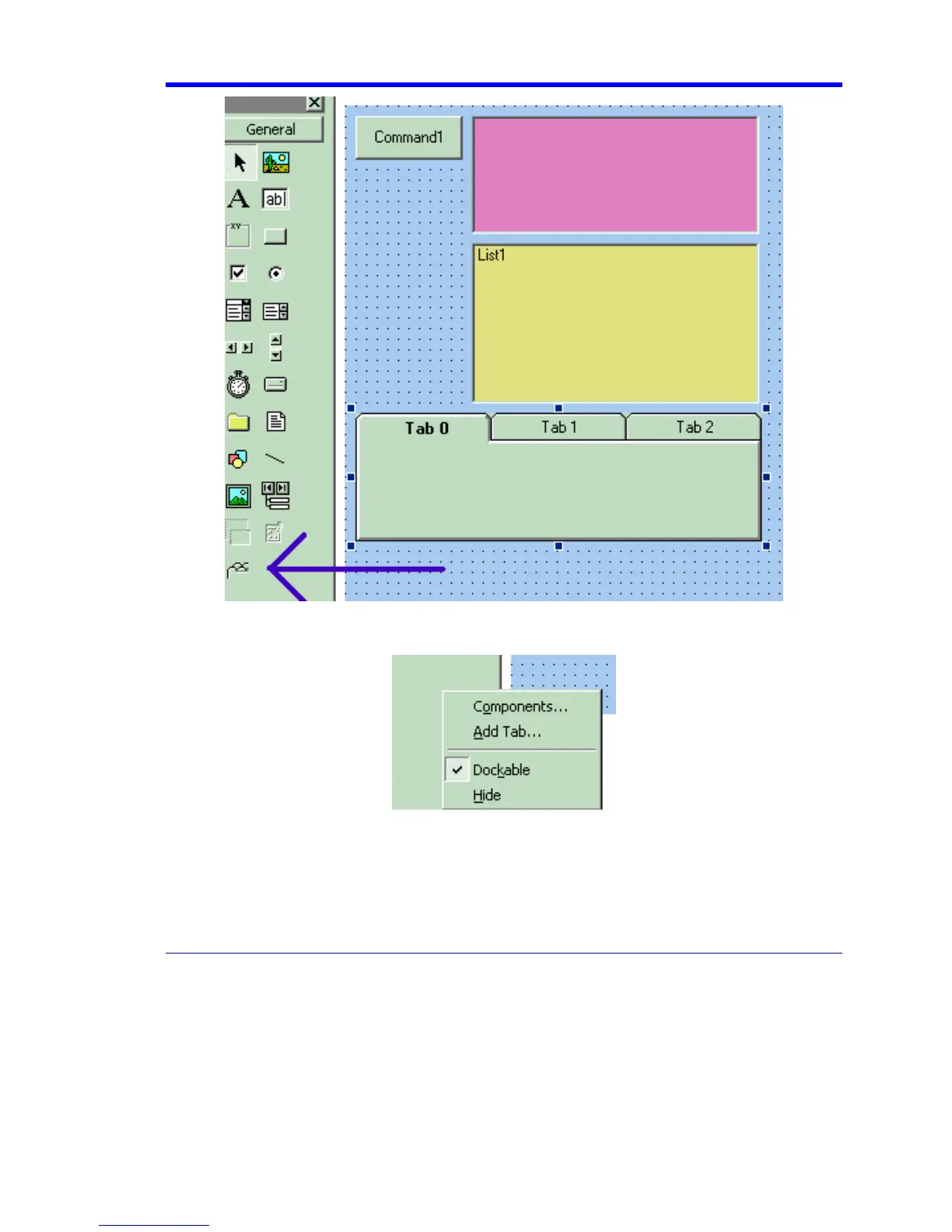

The Tabbed Control (arrow) is not in the basic tool box. To gain access to it, right click in the tool

box at left (but not on an icon.) You will see this menu:

Now select the Microsoft Tabbed Control as shown below, and click on Apply. The control will be

added into the toolbox at the left of the screen, where you can double click on it as usual.
