• Riser 1 assembly (same for riser 2 assembly)

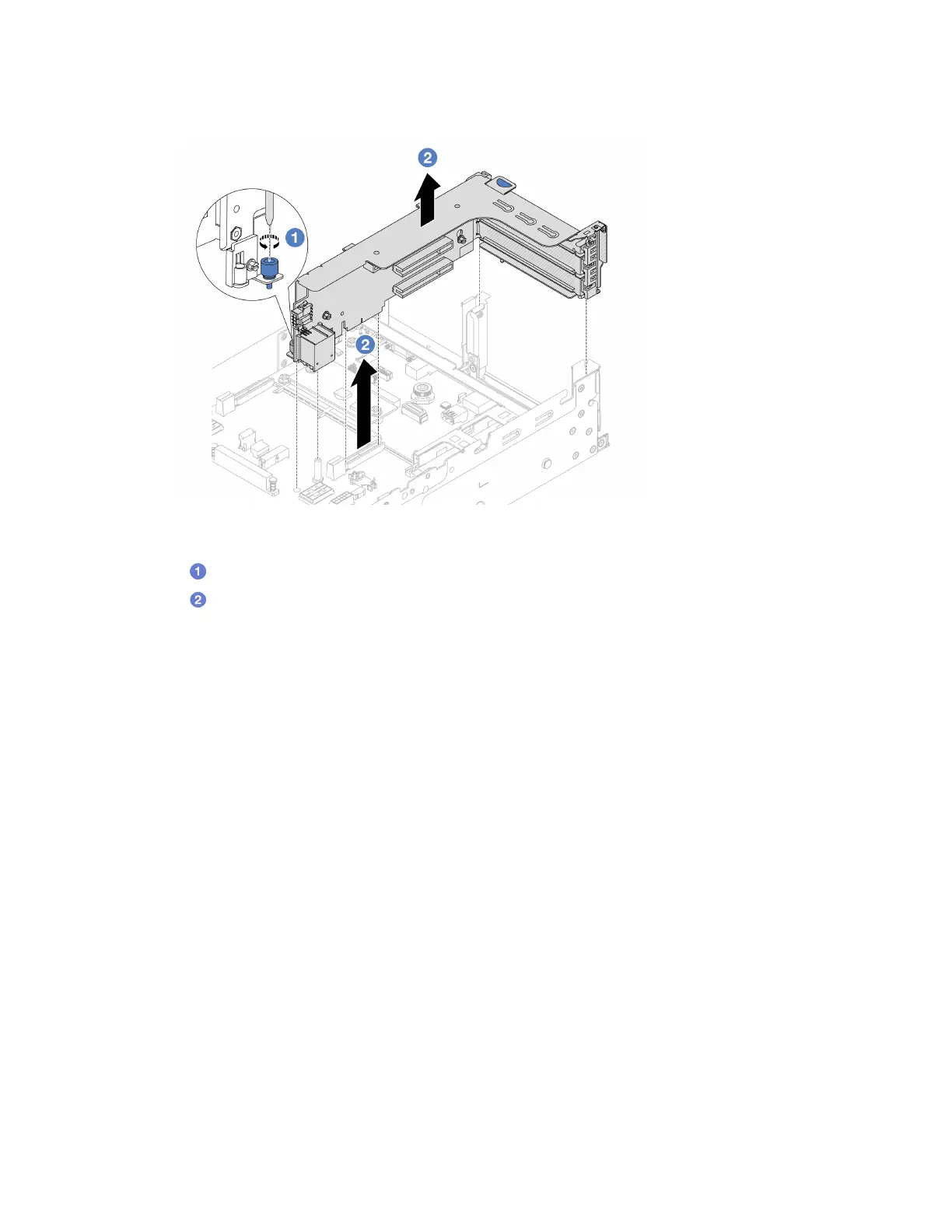

Figure 58. Removing the riser 1 assembly
a. Loosen the screw that secures the riser assembly.
b.
Grasp the riser assembly by its edges and carefully lift it straight up and off the chassis.
After you finish
1. Remove the PCIe adapter from the riser assembly. See
“Remove a PCIe adapter” on page 90.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Remove a PCIe adapter
Follow instructions in this section to remove a PCIe adapter.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 42.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
• Before you remove any component of a RAID array (drive, RAID card, etc.), back up all RAID configuration
information.
Watch the procedure
