Front I/O module
This topic provides cable routing information for the front I/O module.
Notes:
• The front I/O module varies by model. See “Front I/O module” on page 15.
• When routing the front I/O module cable, ensure that it is fixed on the upper frame of the cable retainer.
For details, see
“Install the rack latches” on page 115.

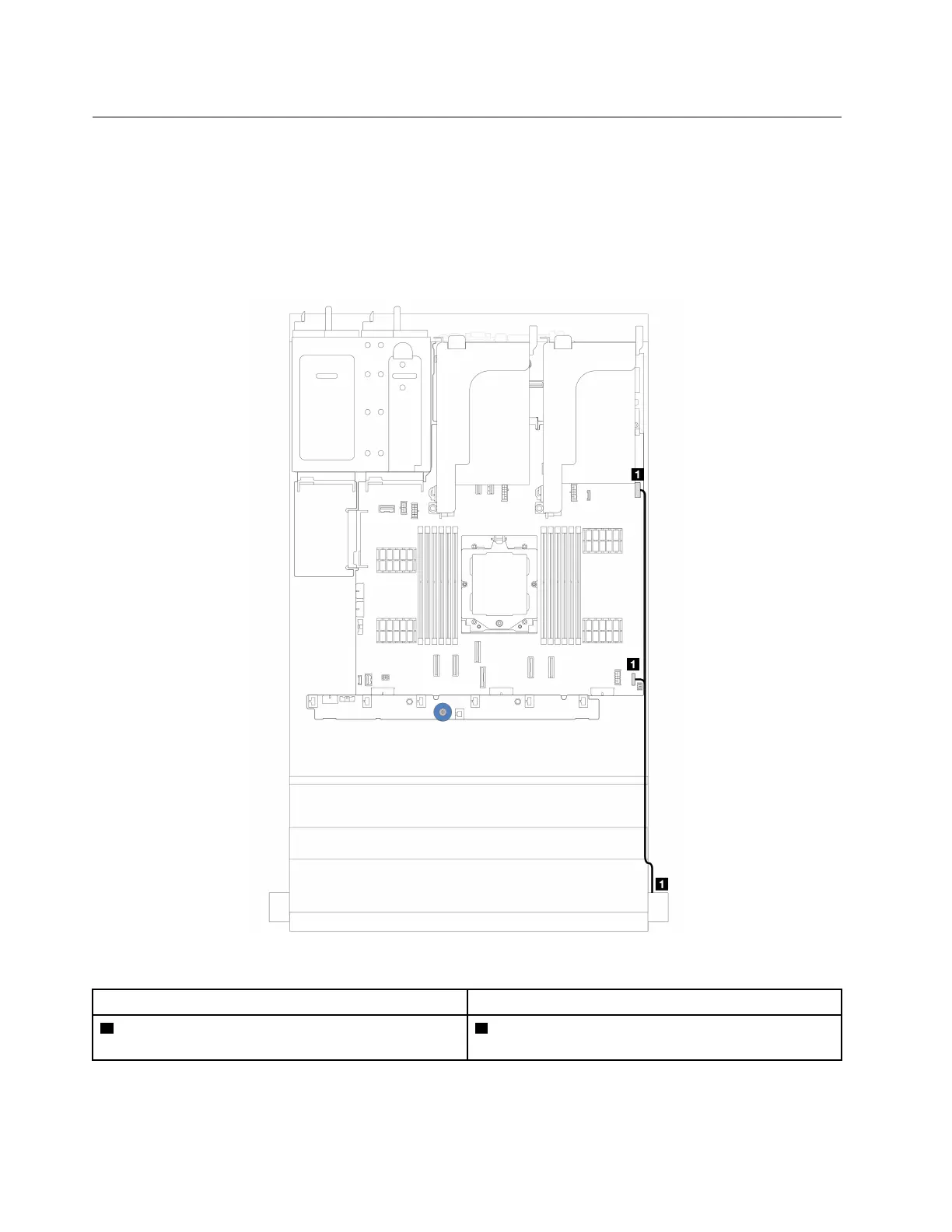

Figure 116. Cable routing for the front I/O module on the right rack latch
From To
1 Front panel and USB cable 1 Front I/O connector and front USB connector on the
system board assembly
158 ThinkSystem SR655 V3 User Guide
