Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 42.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
BashWCNZQEDP7o3EohXPEV
.
Procedure
Step 1. Touch the static-protective package that contains the new part to any unpainted surface on the
outside of the server. Then, take the new part out of the package and place it on a static-protective
surface.
Step 2. Install the RAID flash power module on the air baffle.

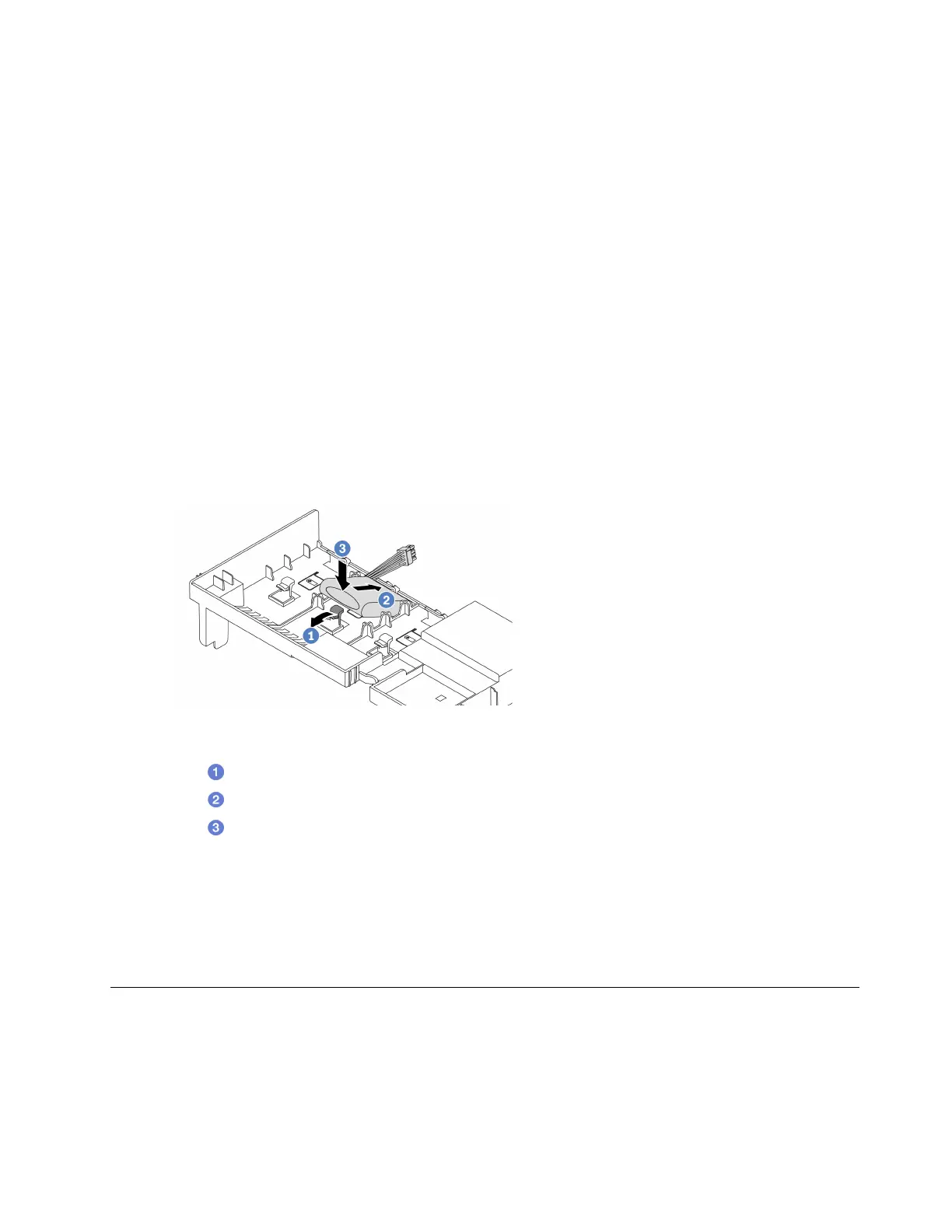

Figure 86. Installing the RAID flash power module on the air baffle
a. Open the retention clip on the holder.
b.
Put the RAID flash power module into the holder.
c.
Press it down to secure it into the holder.
Step 3. Connect the RAID flash power module to an adapter with the extension cable that comes with the
RAID flash power module. See
Chapter 6 “Internal cable routing” on page 153.
After you finish
Complete the parts replacement. See
“Complete the parts replacement” on page 151.
Rearwall bracket replacement
Follow instructions in this section to remove and install a rearwall bracket.
The rearwall brackets vary by server rear configurations.
• “Remove a rearwall bracket” on page 120
Chapter 5. Hardware replacement procedures 119
