Note: Depending on the specific type, your backplane might look different from the illustration.

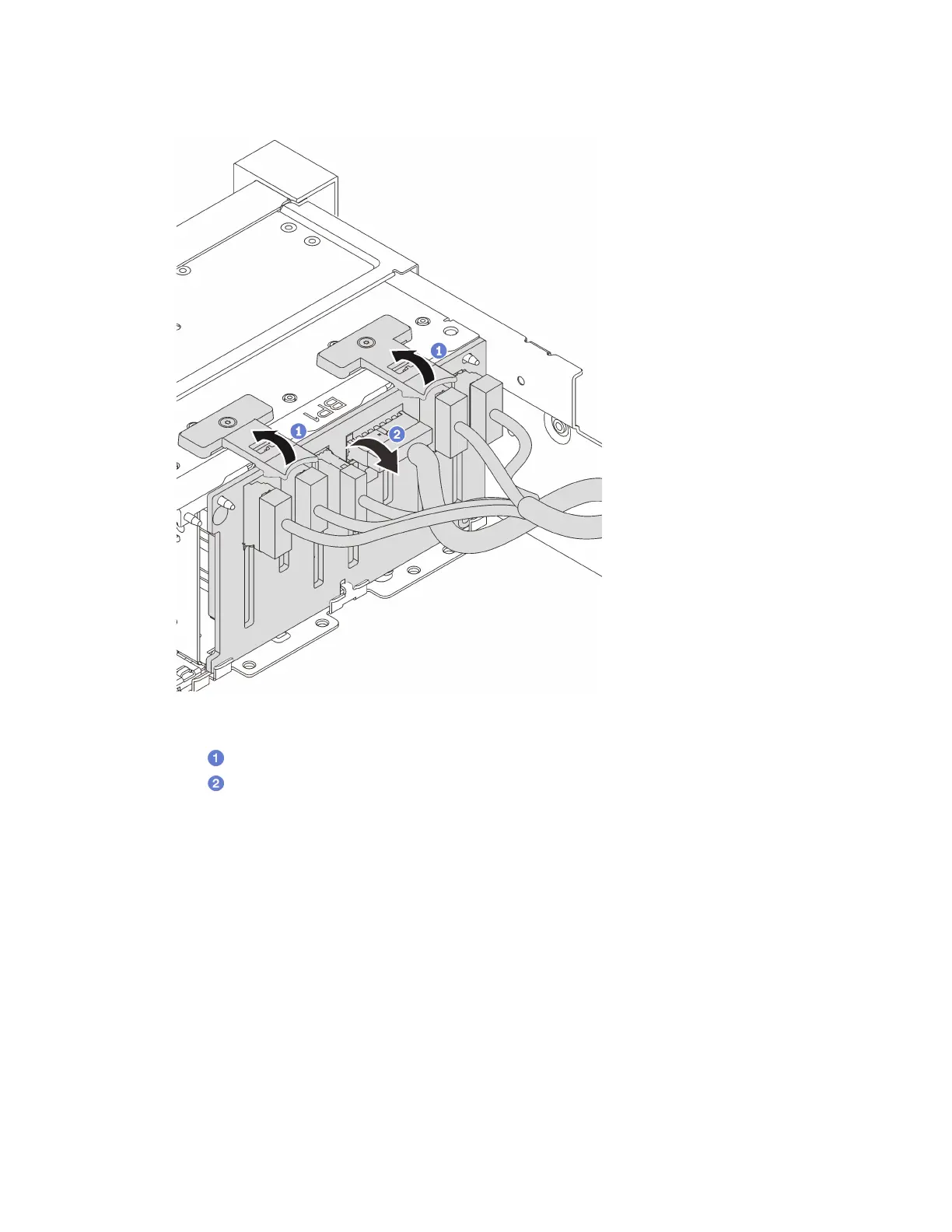

Figure 31. Removing the 2.5-inch drive backplane
a. Lift the release tabs.
b.
Rotate the backplane from the top to disengage it from the two pins on the chassis.
Step 3. Record the cable connections on the backplane and then disconnect all cables from the
backplane.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the front 2.5-inch drive backplane
Follow instructions in this section to install the front 2.5-inch drive backplane.
About this task
The server supports up to three 2.5-inch drive backplanes of below types. Depending on the backplane type
and quantity, the installation location of the backplanes varies.
Chapter 5. Hardware replacement procedures 63

Lenovo ThinkSystem SR655 V3 Specifications

General

Processor	AMD EPYC 9004 Series
Form Factor	2U rack server
Memory	Up to 6TB
Memory Slots	24 DIMM slots
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
NVMe Support	Yes
Networking	Multiple 1Gb/10Gb/25Gb/100Gb options
Expansion Slots	Up to 8x PCIe 5.0 slots
Operating System Support	Windows Server, VMware, Linux distributions
Cores per Processor	Up to 96 cores
