1. Reinstall all the drives and fillers (if any) into the drive bays. See “Install a hot-swap drive” on page 74.
2. Reinstall the fan cage. See
“Install the system fan cage” on page 147.
3. Reinstall the air baffle if you have removed it. See
“Install the air baffle” on page 52.
4. Complete the parts replacement. See
“Complete the parts replacement” on page 151.
Front I/O module replacement
Follow instructions in this section to remove and install the front I/O module.
The front I/O module varies by model. The front I/O modle for most models is on the right rack latch. The
front I/O module on media bay is supported only in the following server models:
• Server models with eight 2.5-inch front drive bays
• Server models with sixteen 2.5-inch front drive bays

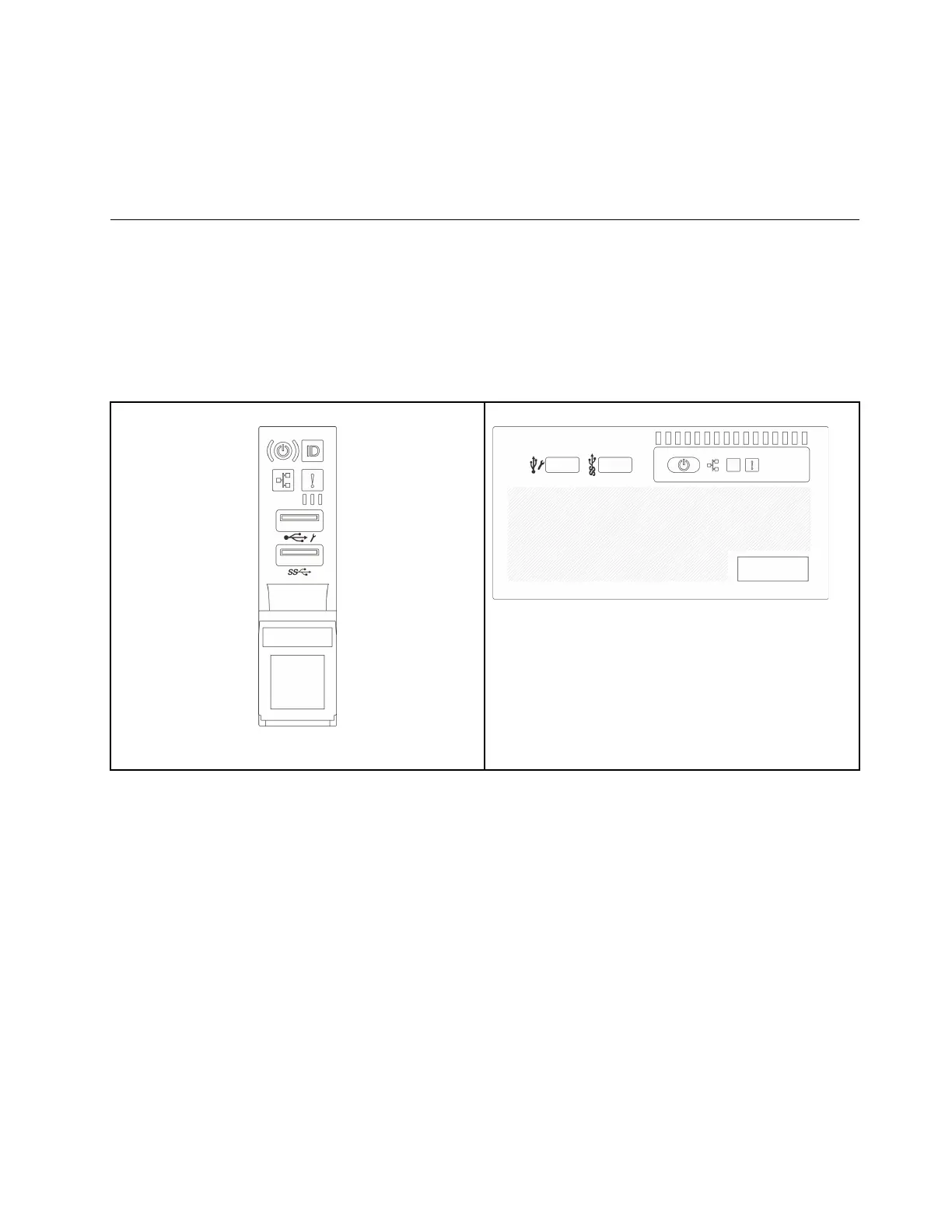

Figure 36. Front I/O module (on rack latch)
Figure 37. Front I/O module (on media bay)
To replace the front I/O module on the rack latch, see “Rack latches replacement” on page 112.
To replace the front I/O module on the media bay:
•
“Remove the front I/O module” on page 69
• “Install the front I/O module” on page 71
Remove the front I/O module
Follow instructions in this section to remove the front I/O module.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
Chapter 5. Hardware replacement procedures 69
