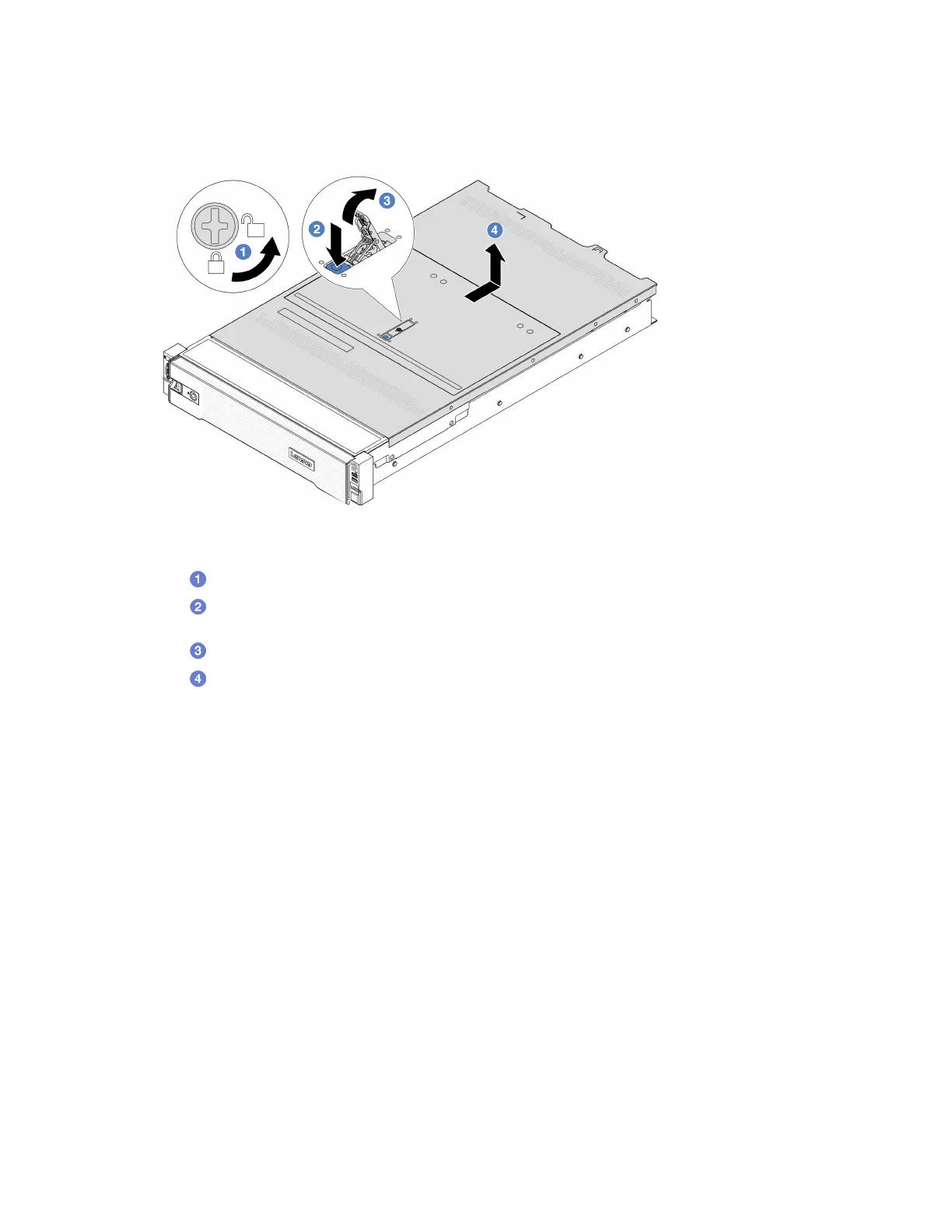

Figure 109. Removing the top cover
a. Use a screwdriver to turn the cover lock to the unlocked position as shown.
b.
Press the release button on the cover latch. The cover latch then gets released to some
extent.
c.
Fully open the cover latch as shown.
d.
Slide the top cover to the rear until it is disengaged from the chassis. Then, lift the top cover
off the chassis and place the top cover on a flat clean surface.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the top cover
Follow instructions in this section to install the top cover.
About this task
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Make sure that all cables, adapters, and other components are installed and seated correctly and that you
have not left loose tools or parts inside the server.
• Make sure that all internal cables are correctly routed. See
Chapter 6 “Internal cable routing” on page 153.
• Handle the top cover carefully. Dropping the top cover with the cover latch open might damage the cover
latch.
