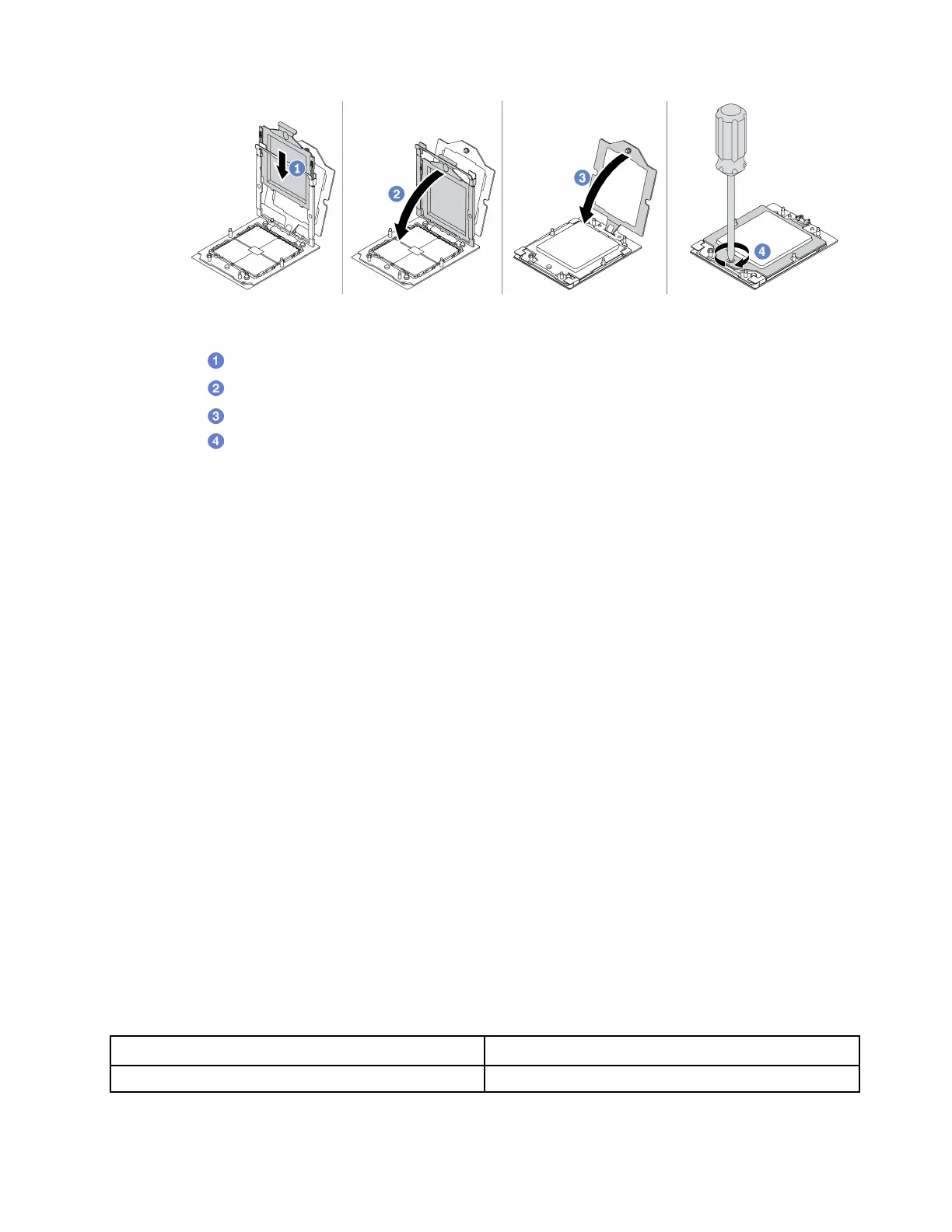

Figure 74. Installing a processor
a. Slide the processor carrier into the rail frame.
b.
Push the rail frame down until the blue latches lock into place.
c.
Close the retention frame.
d.
Use a Torx T20 screwdriver to tighten the screw.
After you finish
Install the heat sink. See
“Install a heat sink” on page 109.
Install a heat sink
Follow the instructions in this section to install a heat sink. This task requires a Torx T20 driver.
About this task
Important: This task must be operated by trained technicians that are certified by Lenovo Service. Do no
attempt to remove or install it without proper training and qualification.
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 42.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
BashWCNZQEDP7o3EohXPEV
.
Note: Prepare the following screwdrivers to ensure you can install and remove the corresponding screws
properly.
Torque screwdriver type list
Screw Type
Torx T20 screwdriver Torx T20 screw
Chapter 5. Hardware replacement procedures 109
