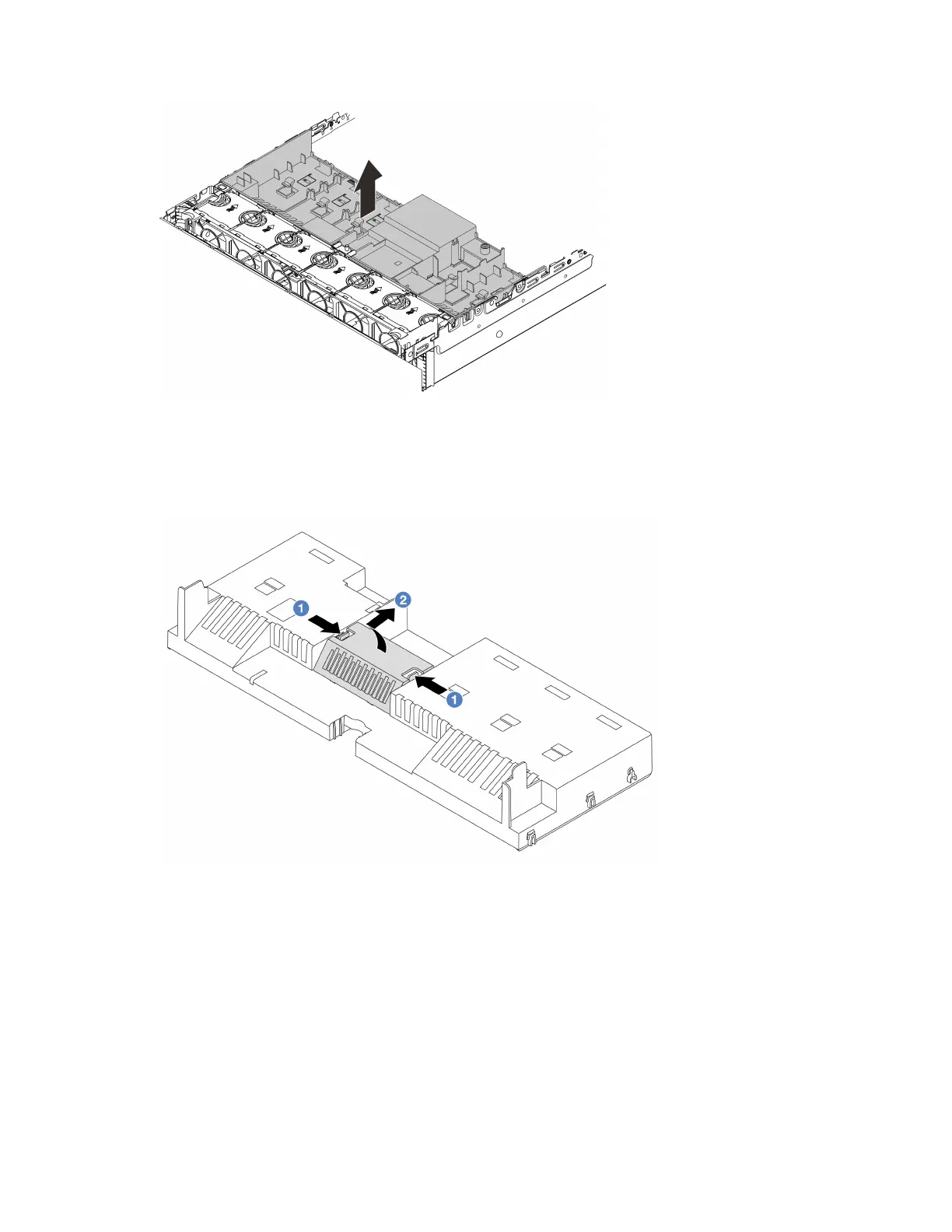

Figure 23. Removing the air baffle
Step 3. (Optional) Remove the fillers from the air baffle if you are using performance heat sinks and need to
change to 2U standard heat sinks.
Figure 24. Removing the air baffle filler
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the air baffle
Follow instructions in this section to install the air baffle.
About this task
52 ThinkSystem SR655 V3 User Guide
