Chapter 2. Server components
This section contains information about each of the components associated with the server.
Front view
The front view of the server varies by model. Depending on the model, your server might look slightly
different from the illustrations in this topic.
Refer to the following front views for different server models:
“Front view with eight 2.5-inch front drive bays” on page 13
“Front view with sixteen 2.5-inch front drive bays” on page 13
“Front view with twelve 3.5-inch front drive bays” on page 14

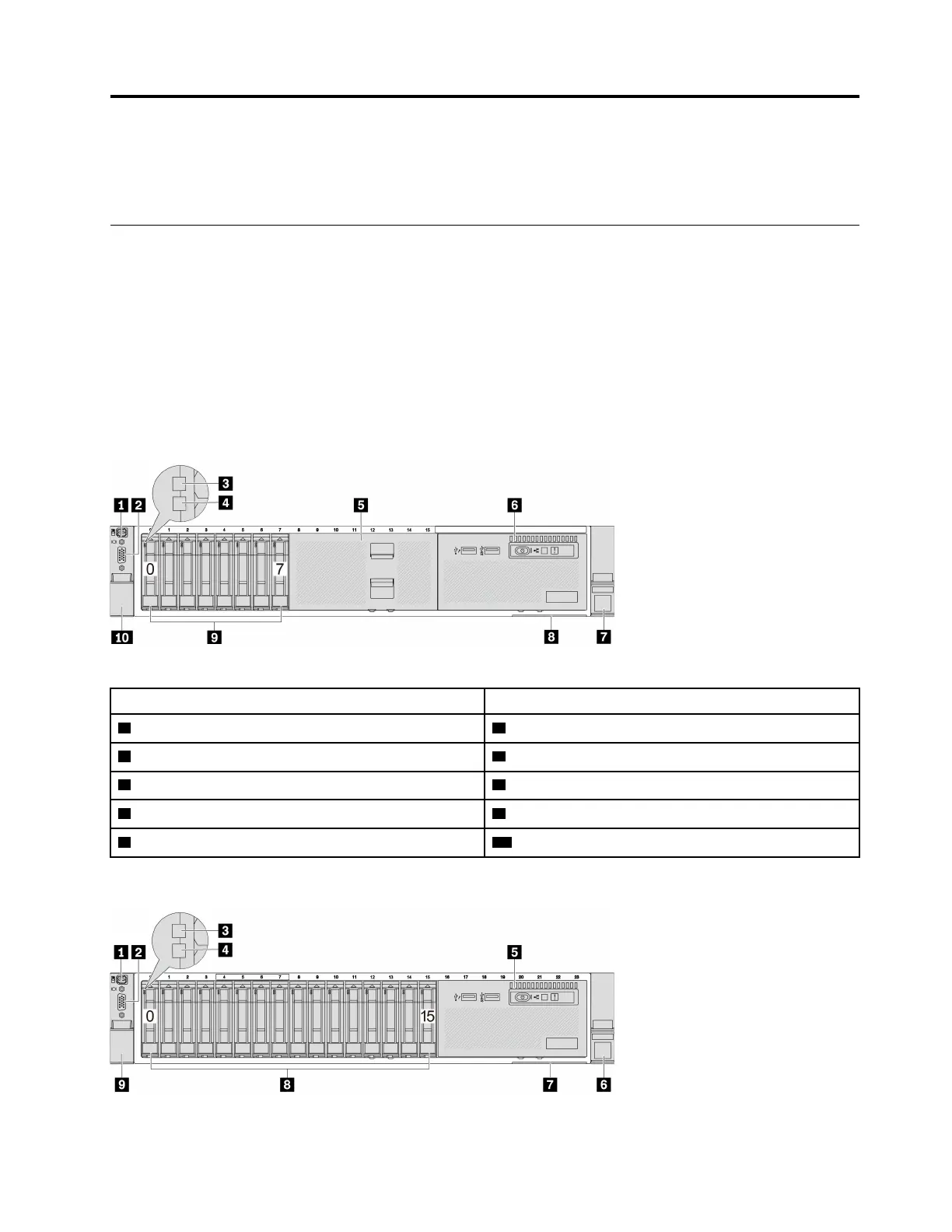

Front view with eight 2.5-inch front drive bays
Table 2. Components on the front of the server
Callout Callout
1 “External diagnostics connector (optional)” on page 15 2 “VGA connector (optional)” on page 15
3 “Drive activity LED” on page 14 4 “Drive status LED” on page 14
5 “Drive bay filler” on page 14
6 “Front I/O module (on media bay)” on page 15
7 “Rack latch (right)” on page 15
8 “Pull-out information tab” on page 15
9 “Drive bays” on page 14
10 “Rack latch (left)” on page 15
Front view with sixteen 2.5-inch front drive bays
© Copyright Lenovo 2023 13
