Lenovo ThinkSystem SR655 V3 User Manual

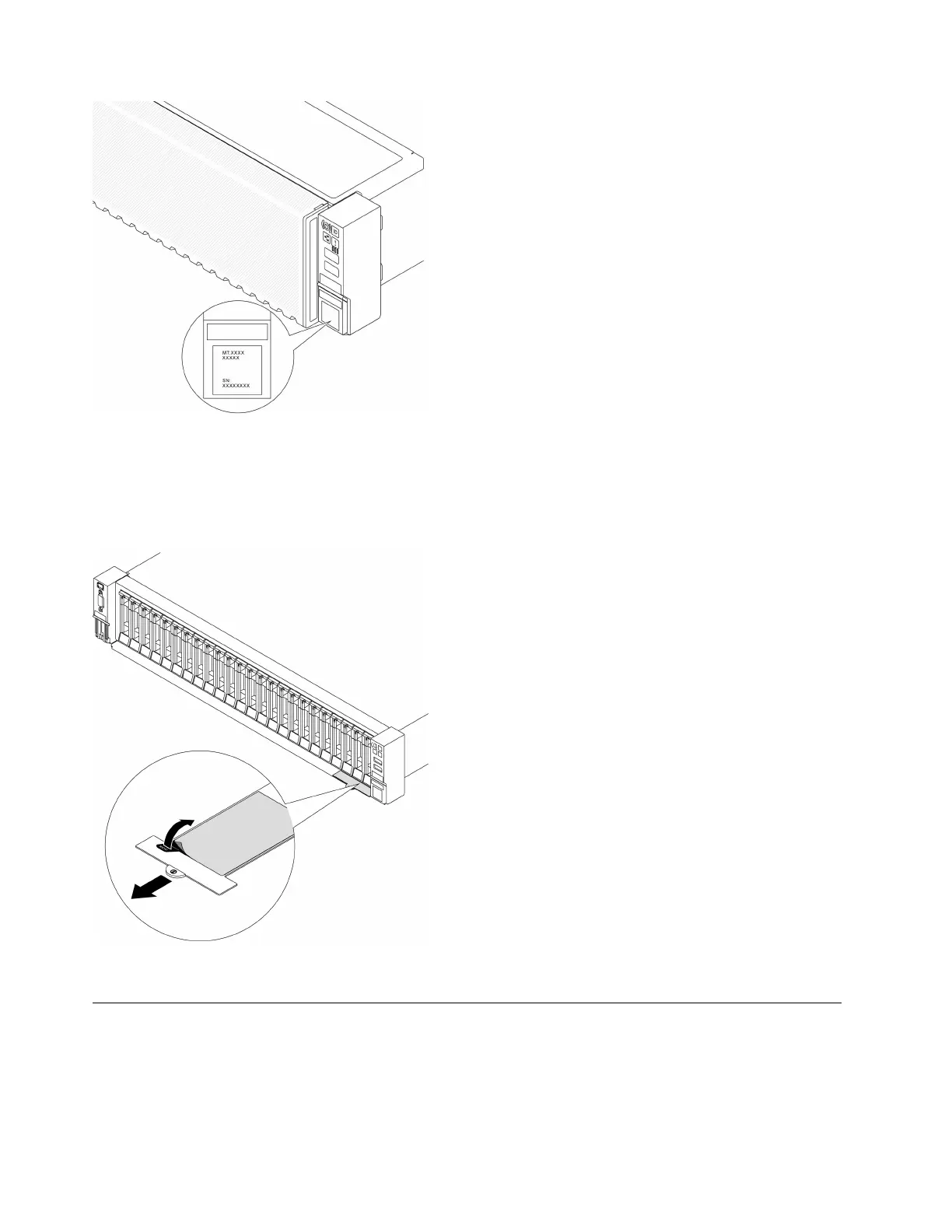

Figure 10. Location of the ID label
Lenovo XClarity Controller network access label
In addition, the Lenovo XClarity Controller (XCC) network access label is attached to the pull-out information
tab located near the lower right corner in the front of the chassis, with MAC address accessible with a pull.
Figure 11. Lenovo XClarity Controller network access label on the pull-out information tab
Server setup checklist
Use the server setup checklist to ensure that you have performed all tasks that are required to set up your
server.
32
ThinkSystem SR655 V3 User Guide

Lenovo ThinkSystem SR655 V3 Specifications

General

Processor	AMD EPYC 9004 Series
Form Factor	2U rack server
Memory	Up to 6TB
Memory Slots	24 DIMM slots
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
NVMe Support	Yes
Networking	Multiple 1Gb/10Gb/25Gb/100Gb options
Expansion Slots	Up to 8x PCIe 5.0 slots
Operating System Support	Windows Server, VMware, Linux distributions
Cores per Processor	Up to 96 cores
