• 2.5-inch SAS/SATA 8-bay backplane
• 2.5-inch AnyBay 8-bay backplane
The following table lists the supported backplane combinations. Install the backplane according to your
server configuration.

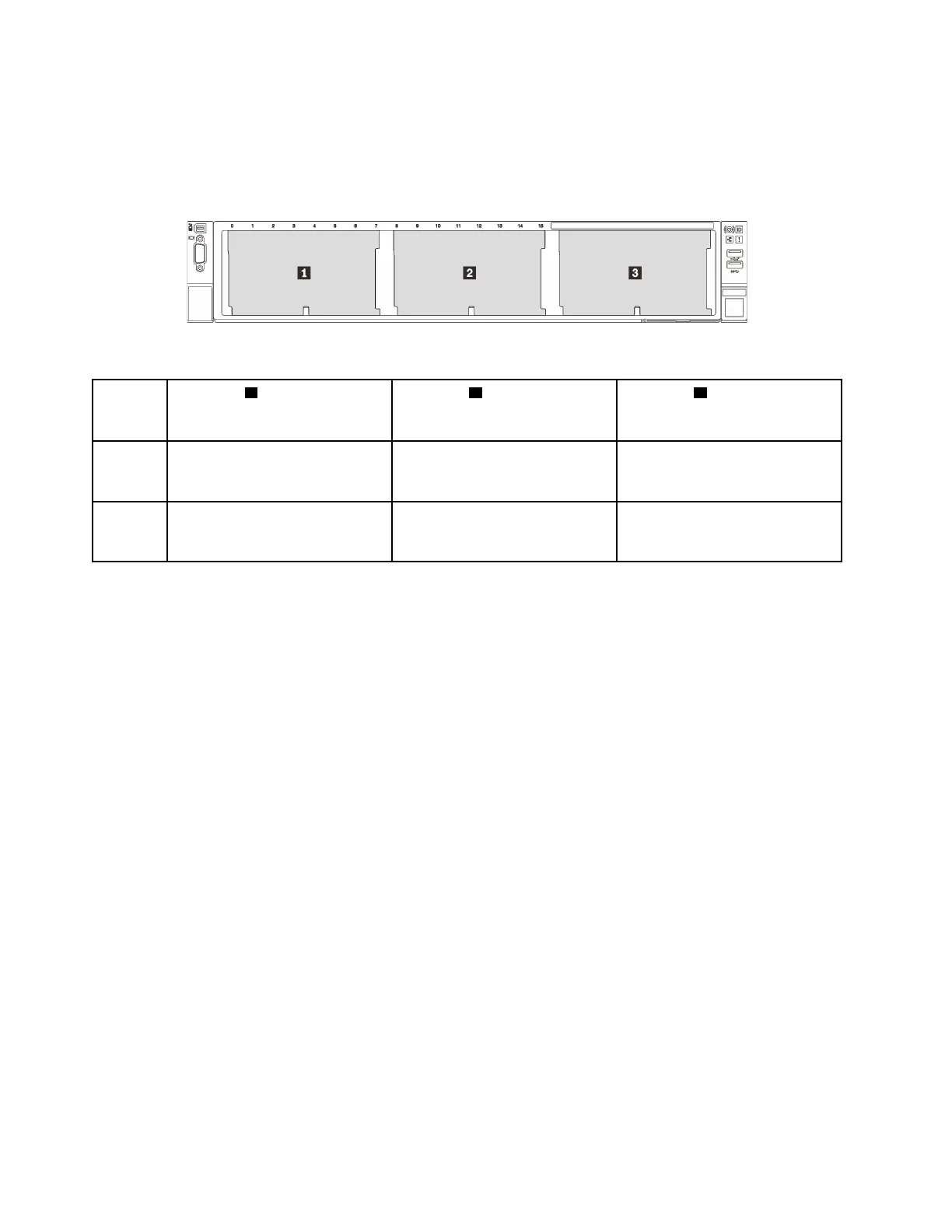

Figure 32. Drive backplane numbering
Back-
plane
quantity
Backplane
1 Backplane 2 Backplane 3
1
• SAS/SATA 8-bay
• AnyBay 8-bay
2
SAS/SATA 8-bay
• SAS/SATA 8-bay
• AnyBay 8-bay
Attention:
• Read
“Installation Guidelines” on page 35 and “Safety inspection checklist” on page 36 to ensure that you
work safely.
• To avoid damage to the drive connectors, make sure that the server top cover is in place and fully closed
whenever you install or remove a drive.
• To make sure that there is adequate system cooling, do not operate the server for more than two minutes
without either a drive or a drive bay filler installed in each bay.
• Before you make changes to drives, drive controllers (including controllers that are integrated on the
system board assembly), drive backplanes, or drive cables, back up all important data that is stored on
drives.
Firmware and driver download: You might need to update the firmware or driver after replacing a
component.
• Go to
https://datacentersupport.lenovo.com/products/servers/thinksystem/sr655v3/7d9e/downloads/driver-
list/
to see the latest firmware and driver updates for your server.
• Go to
“Update the firmware” on page 190 for more information on firmware updating tools.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
BashWCNZQEDP7o3EohXPEV
.
Procedure
Note: If the cables are easy to connect to the backplane, you can perform step 3 before step 2.
64 ThinkSystem SR655 V3 User Guide
