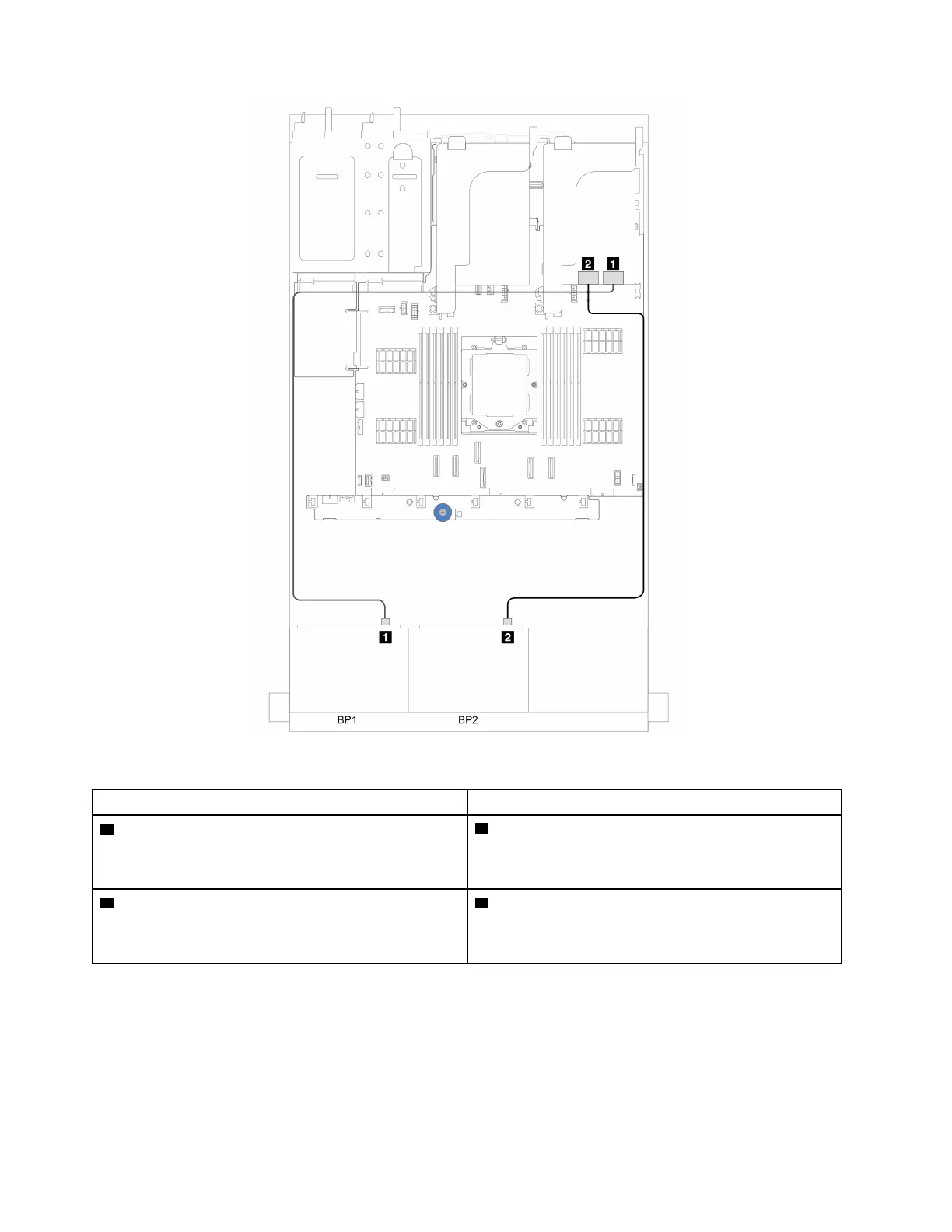

Figure 130. SAS/SATA cable routing to 16i RAID/HBA adapter
From To
1 Backplane 1: SAS
1 16i adapter
• Gen 4: C0
• Gen 3: C0C1
2 Backplane 2: SAS
2 16i adapter
• Gen 4: C1
• Gen 3: C2C3
