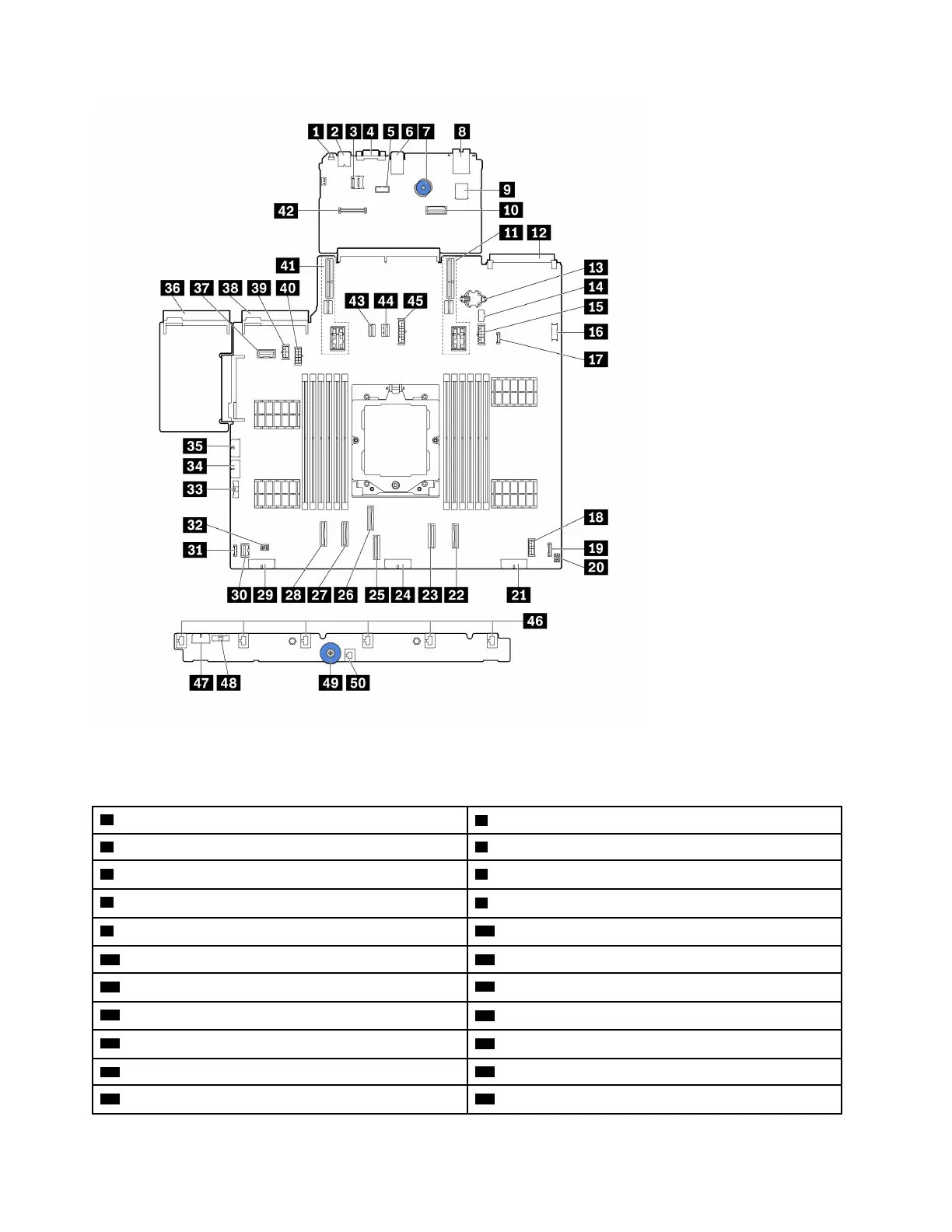

Figure 7. System-board-assembly connectors
Table 8. System-board-assembly connectors
1 NMI button
2 Rear USB connector
3 Micro SD connector 4 VGA connector
5 Serial port connector 6 Rear USB connectors
7 Lift handle
8 XCC system management port
9 Internal USB connector 10 Second management Ethernet connector
11 Riser 1 slot
12 OCP module connector
13 CMOS battery (CR2032)
14 M.2 power connector
15 7mm backplane power connector
16 Front USB connector
17 Leak detection connector
18 Internal Expander Power Connector
19 Front I/O connector
note
20 Front I/O connector for Y cable
note
21 Backplane 3 power connector
22 PCIe connector 8 / SATA connector 1
22 ThinkSystem SR655 V3 User Guide
