Lenze 8200 vector series Mounting Instructions

Extensions for automation
Modules
Mounting and dismounting function modules
6

162
EDK82EV903 DE/EN/FR 5.1
Mounting
8200vec621

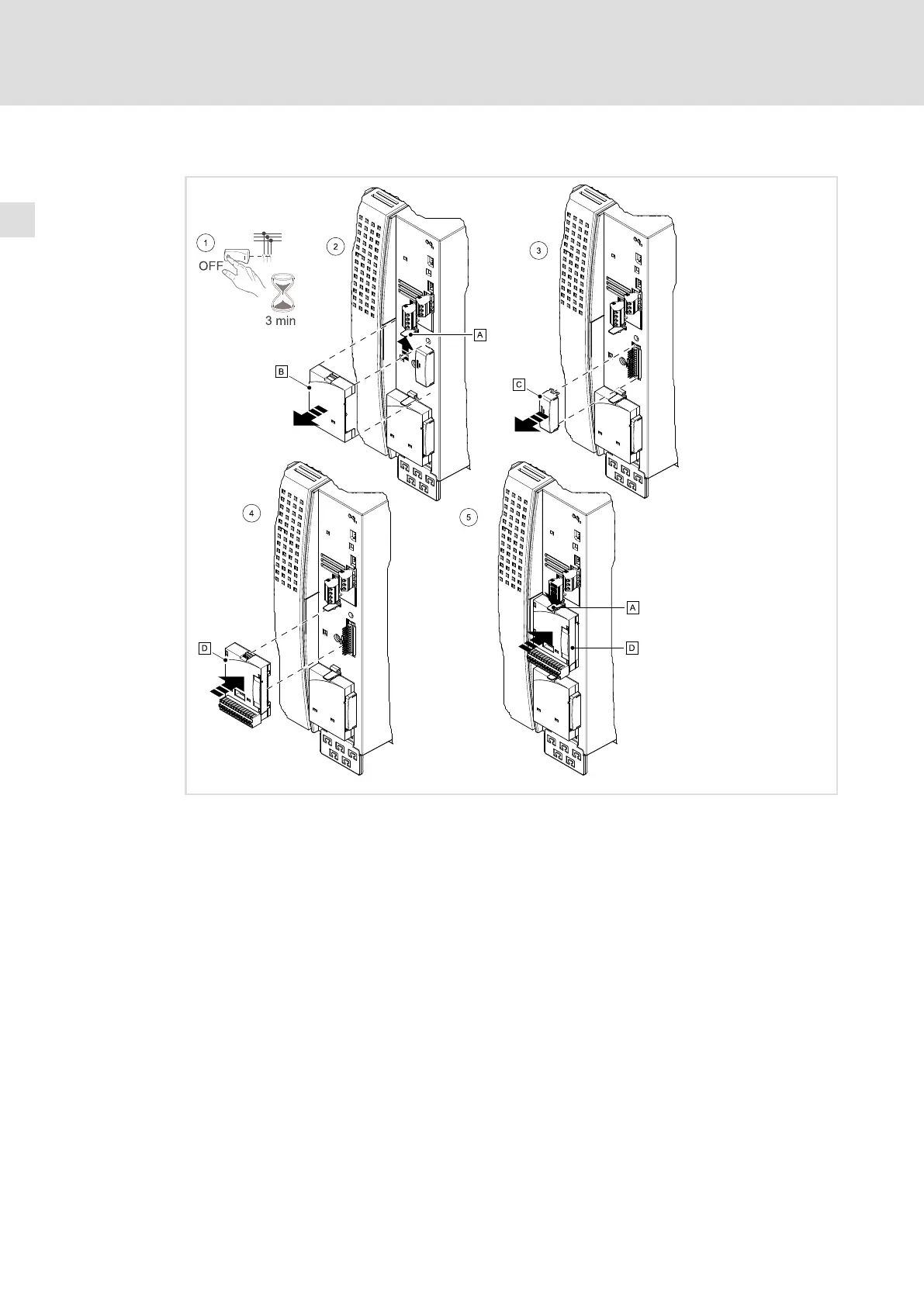

The following worksteps apply to the interfaces FIF I (at the top) and FIF II (at the bottom).
1. Disconnect the drive controller from mains and wait at least 3 minutes!
2. Carefully press the clip  upwards and remove the function module .
3. Remove the FIF cover .
4. Plug the function module  onto the terminals of the interface.
– Make sure that the pins of the FIF interface are plugged correctly in the sockets of
the function module and are not bent.
5. Push the blanking cover  until the clip  locks into place.
– Without the FIF cover , the controller is inhibited.
– If no function module is plugged on, the controller without FIF cover  and
blanking cover  must not be commissioned (dangerous electrical voltage at the
FIF interface).

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
