92

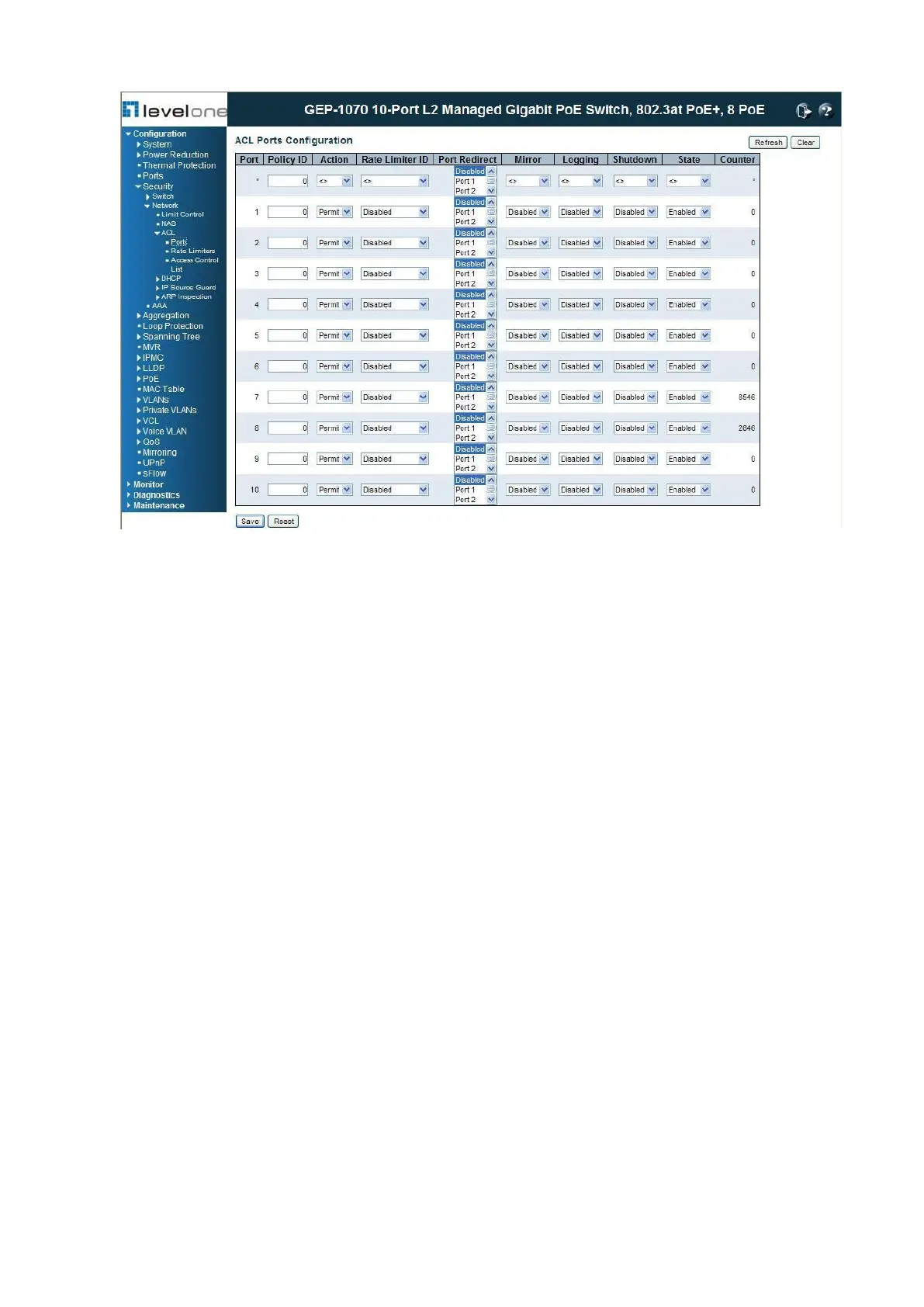

PARAMETERS
These parameters are displayed:
◆ Port – Port Identifier.
◆ Policy ID – An ACL policy configured on the ACL Entry (ACE) Configuration page. (Range:
1-8; Default: 1, which is undefined)
◆ Action – Permits or denies a frame based on whether it matches a rule defined in the
assigned policy. (Default: Permit)
◆ Rate Limiter ID – Specifies a rate limiter (page 91) to apply to the port. (Range: 1-15;
Default: Disabled)
◆ Redirect to – Defines a port to which matching frames are re-directed. (Range: 1-28;
Default: Disabled)
To use this function, Action must be set to Deny for the local port.
◆ Mirror - Mirrors matching frames from this port. (Default: Disabled) To use this function,
the destination port to which traffic is mirrored must be configured on the Mirror Configuration
page (see "Configuring Port Mirroring" on page 198).
ACL-based port mirroring set by this parameter and port mirroring set on the general Mirror
Configuration page are implemented independently. To use ACL-based mirroring, enable the
Mirror parameter on the ACL Ports Configuration page. Then open the Mirror Configuration
page, set the “Port to mirror on” field to the required destination port, and leave the “Mode”
field Disabled.
