D9U001ES2-0101_05

103

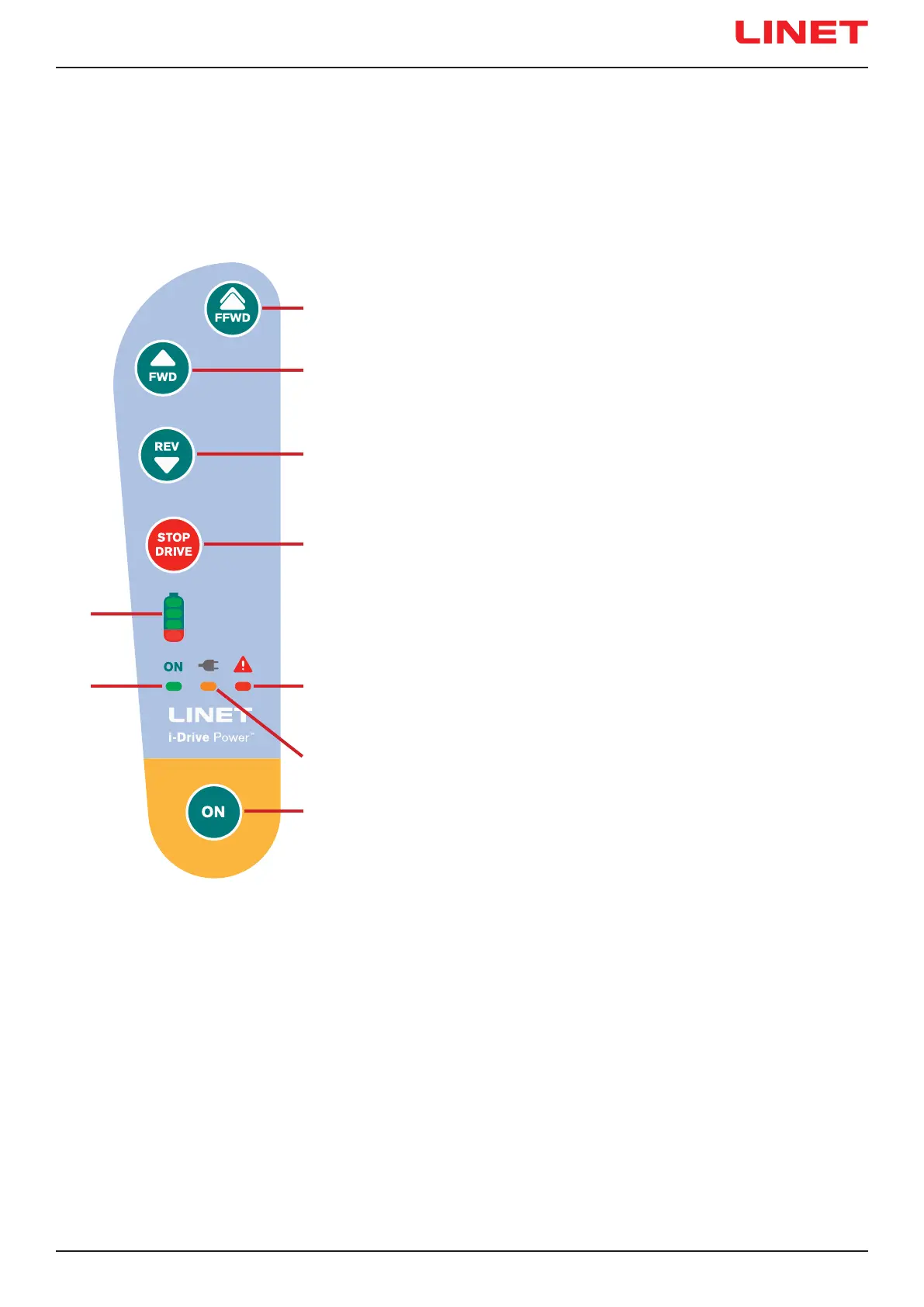

Fig. i-Drive Power Control Panel

1. ON LED (ON Indicator)

2. ON Button (i-Drive Power Wheel Activation Button)

3. Mains Power LED (stretcher connected to the mains)

4. Fault LED

5. STOP DRIVE Button

6. REVERSE Button

7. FORWARD Button

8. FAST FORWARD Button

9. Accumulator Charge Status Indicator

The i-Drive Power Control Panel is enhanced with a touch sensor. Your hand must always be in contact with the i-Drive Power

Control Panel to use the functions. If released, the i-Drive Power will stop. Buttons on the i-Drive Power Control Panel works only if

the i-Drive Power Control Panel with the IV&Drive are in vertical position.

i-Drive Power Control Panel
