19.1 Infusion Stand

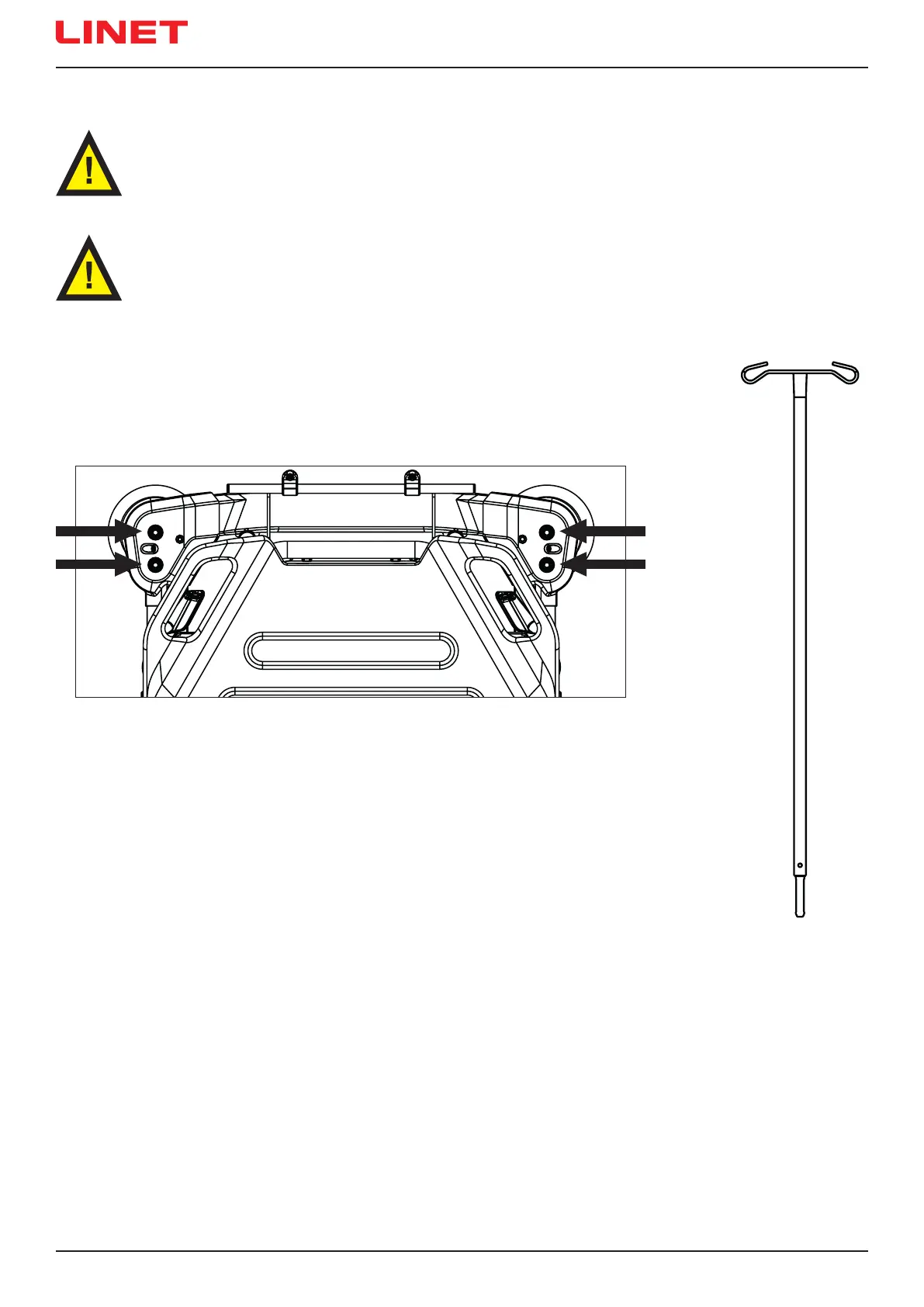

Fig. Infusion stand (at

head end and foot

end corners)

Fig. Positions for Infusion Stand

Infusion Stand is intended for carrying IV bags or baskets for intravenous solutions.

It can be located in bushings for accessories at a stretcher corner.

Maximum load of one hook is 6 kg.

WARNING!

Risk of injury due to incorrect placement of an infusion pump!

► Ensure the infusion pump on the Infusion stand will not collide with any movable parts of the Sprint 200

(especially Backrest) or with the patient!

WARNING!

Risk of injury and risk of material damage due to incorrect use!

► Do not use the infusion stand as driving/pushing device during the stretcher transport.
