D9U001ES2-0101_05
72
14.3.8

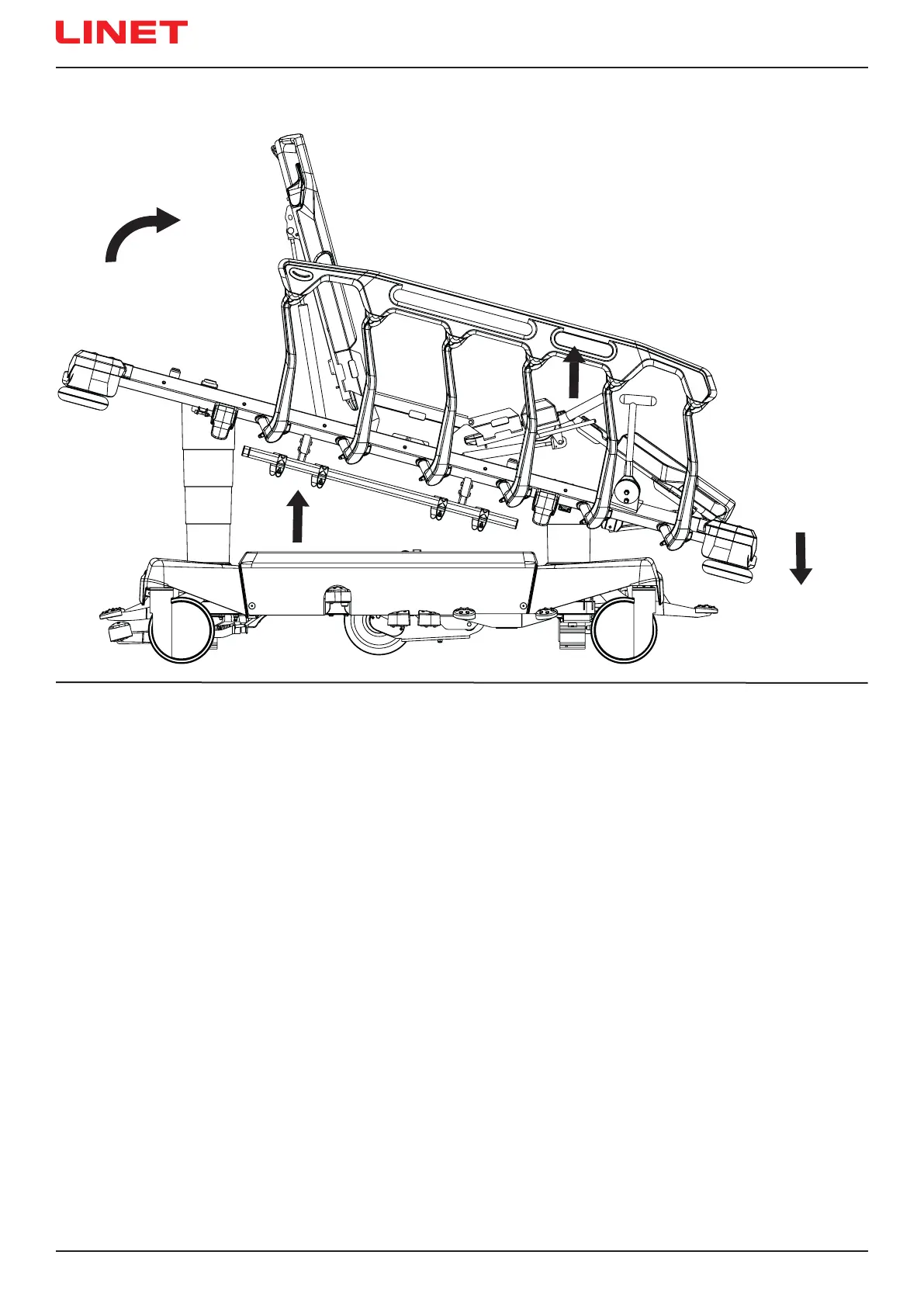

Cardiac Chair Position (only 4-part Mattress Support Platform)
1
4
5
2
3
T
o reach Cardiac Chair Position:
► lift the Mattress Support Platform to facilitate Thighrest and Backrest positioning (
1
)
► lift the Thighrest (
2
)
► lift the Backrest (
3
)
► lift the Mattress Support Platform to the maximum position (
4
)
► use Foot End Lowering pedal until intended position is reached (
5
)
71
73
