D9U001ES2-0101_05
119
19.4 Monitor Shelf
Monitor shelf is intended for carrying a monitor when the monitor shelf is folded towards the stretcher (4). When the monitor shelf is
folded away from the stretcher (3) it serves for writing. When the monitor shelf is folded down (2) it serves as a foot board. Moni-
tor shelf is equipped with straps to x a monitor on the monitor shelf. Maximum load of the monitor shelf in position for carrying a
monitor (4) and for writing (3) is 15 kg.
HOOKS
The position of hooks placed on the frame of Monitor Shelf can
be changed to a more convenient position!
Respect maximum load of the Monitor Shelf when hanging
things on the hooks!

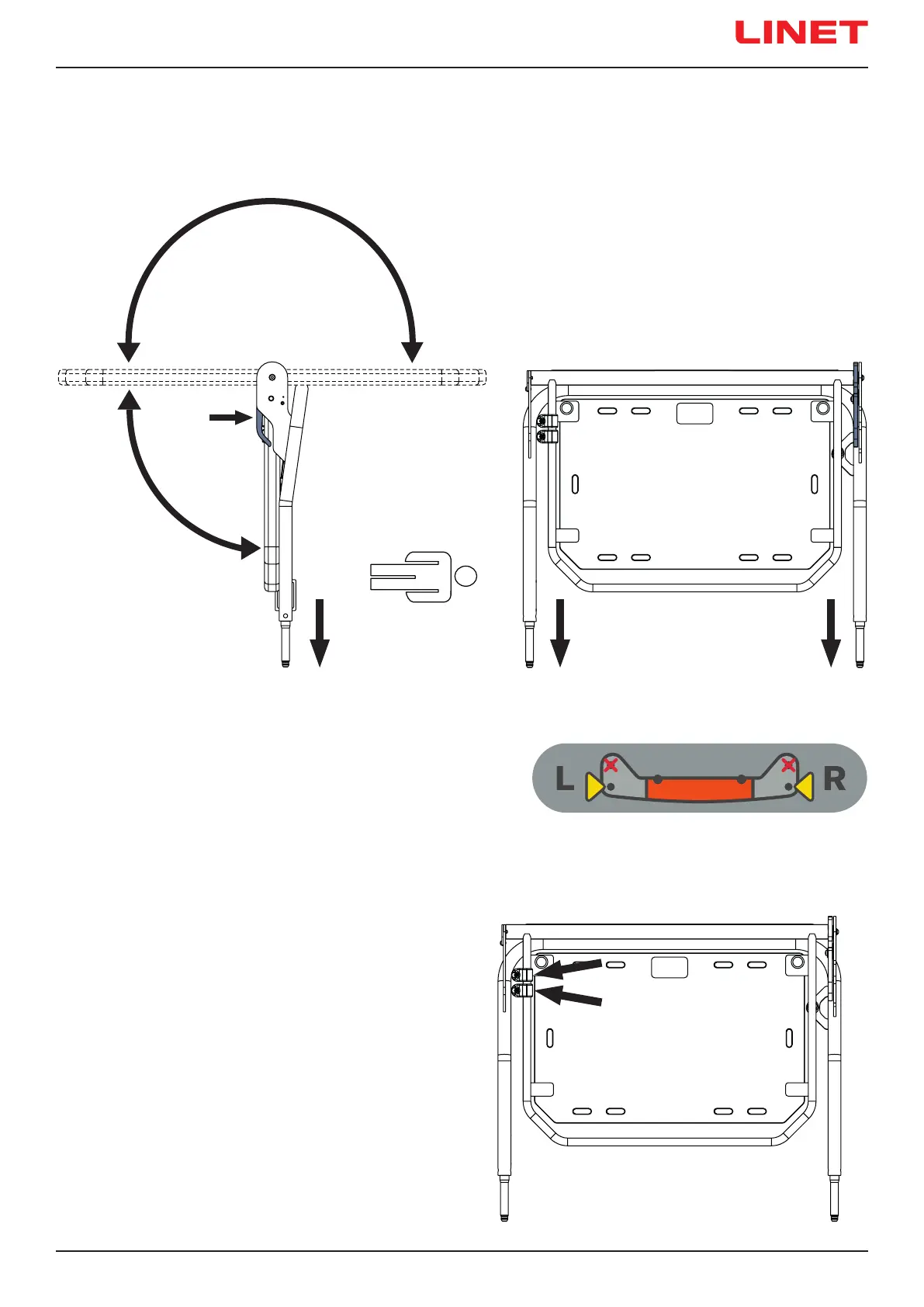

Fig. Instruction for placement of the monitor shelf to
the head end and foot end corners
4
2
2
3
1
To change position of the board:
► Pull a control lever (1).
► Change position of the board.
► Release the control lever (1) in order to the control lever latches.
► Move the board up and down to ensure the board is xed.
Fig. Monitor shelf (at foot end)
