D9U001ES2-0101_05

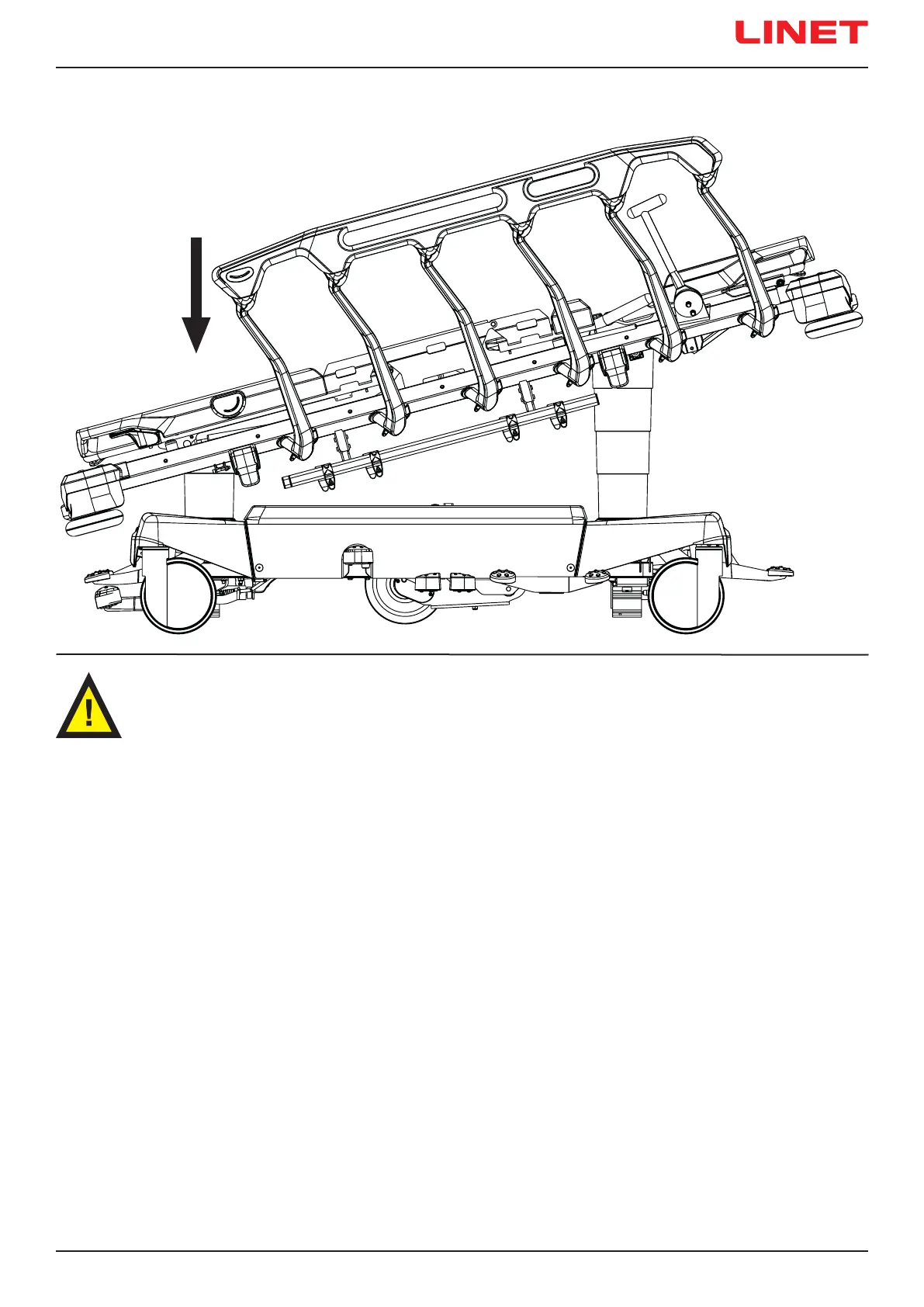

To reach Trendelenburg position:

► press Head End Lowering pedal until intended position is reached

► press Head End Trendelenburg Pedal until intended position is reached

14.3.6 Trendelenburg Position

WARNING!

Risk of injury due to improper use of Trendelenburg Position!

► Hospital sta󰀨 is responsible for assessing if the physical and psychological state of the patient is in accordan-

ce with use of the Trendelenburg Position.

► Hospital sta󰀨 is responsible for assessing whether used bedclothes increase the risk of patient´s sliding from

the stretcher!
