14.2.1 Braked Stretcher

To brake the stretcher:

► Press red Brake pedal (1 or 2) to the lower position.

All four castors are braked.

1. Brake Pedal (standard) - RED

2. Brake Pedal (optional) - RED

3. Drive Pedal (standard) - GREEN

4. Drive Pedal (optional) - GREEN

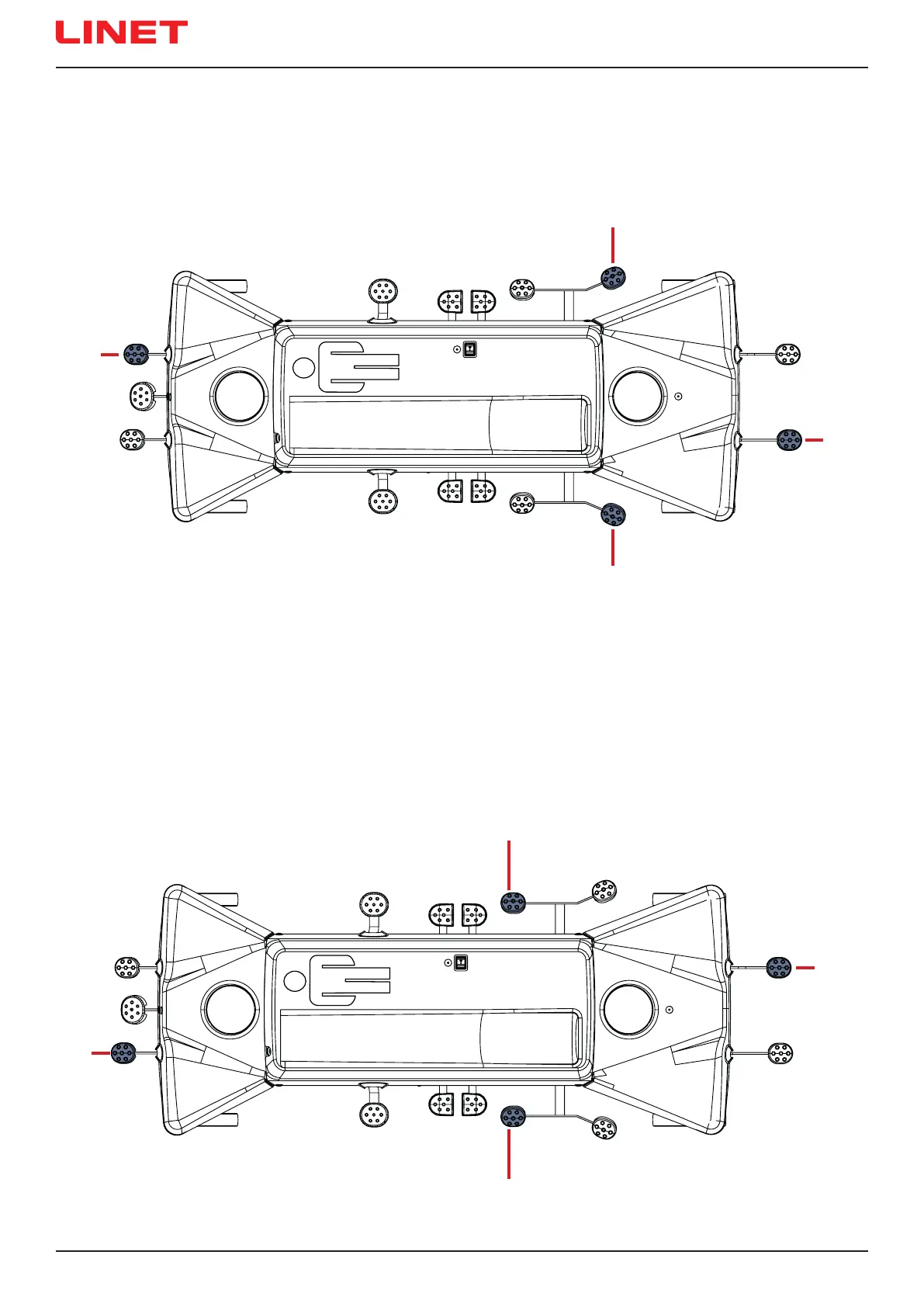

Fig. Positions of Brake pedals

Fig. Positions of Drive pedals

14.2.2 Forward Movement (Steering)

To set forward movement:

► Press green Drive pedal (3 or 4) to the lower position.

The front left castor is locked after its forward movement was reached. The stretcher moves straight ahead.

If the stretcher is equipped with a fth castor or with i-Drive Power, this castor determines the direction of movement.
