D9U001ES2-0101_05
71
Fig.

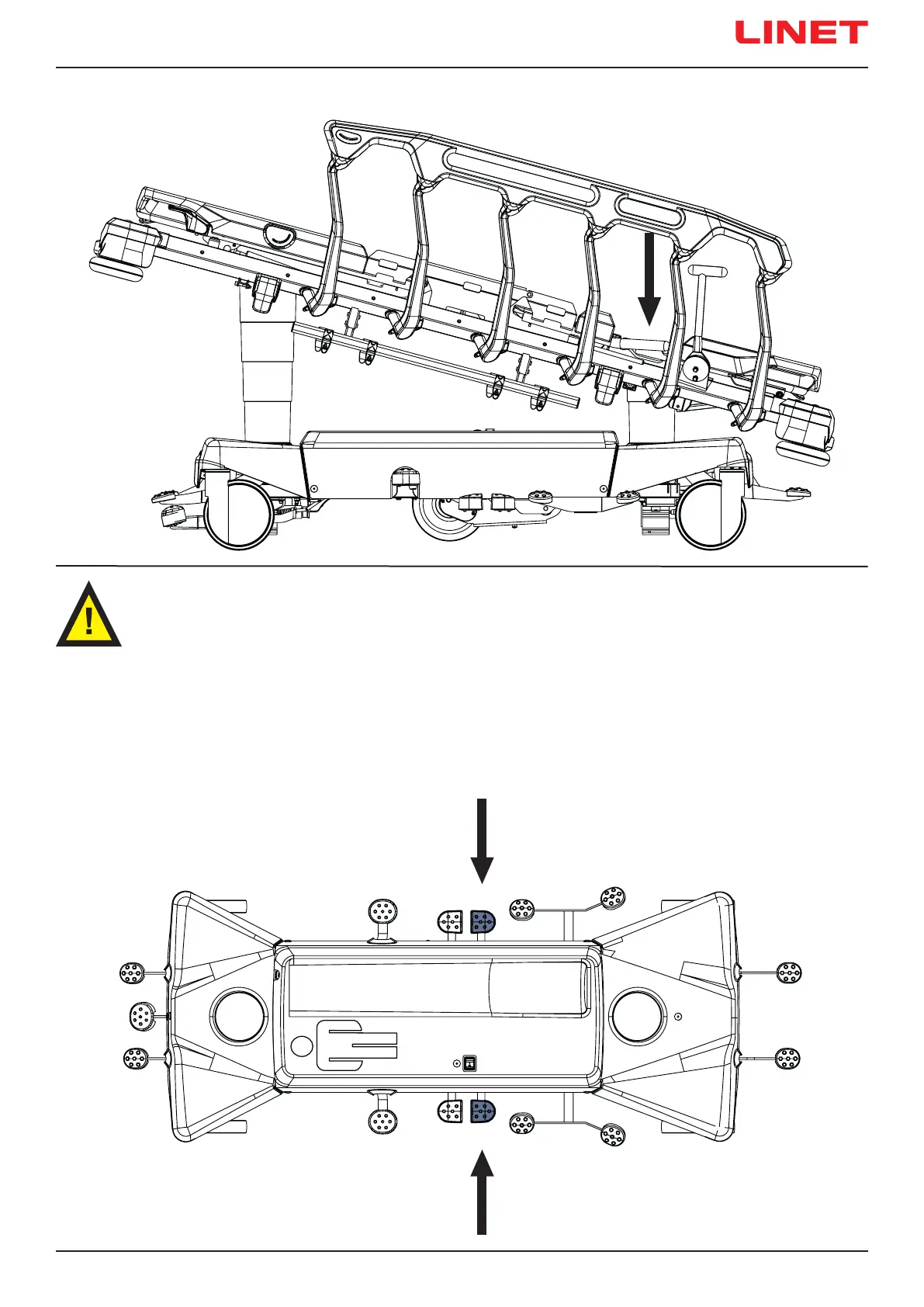

Positions of Foot End Lowering pedals
T
o reach
Anti-T
rendelenburg Tilt:
► press Foot End Lowering pedal until intended position is reached
14.3.7
Anti-T
rendelenburg T
ilt
W
ARNING!
Risk of injury due to patient´s sliding!
►
Hospital sta is responsible for assessing whether used bedclothes increase the risk of patient´s sliding from
the stretcher!
70
72
