LINET Sprint 200

To Next Page

To Previous Page

D9U001ES2-0101_0540

10.1.1 Removal of the Plastic Mattress Support Platform Covers

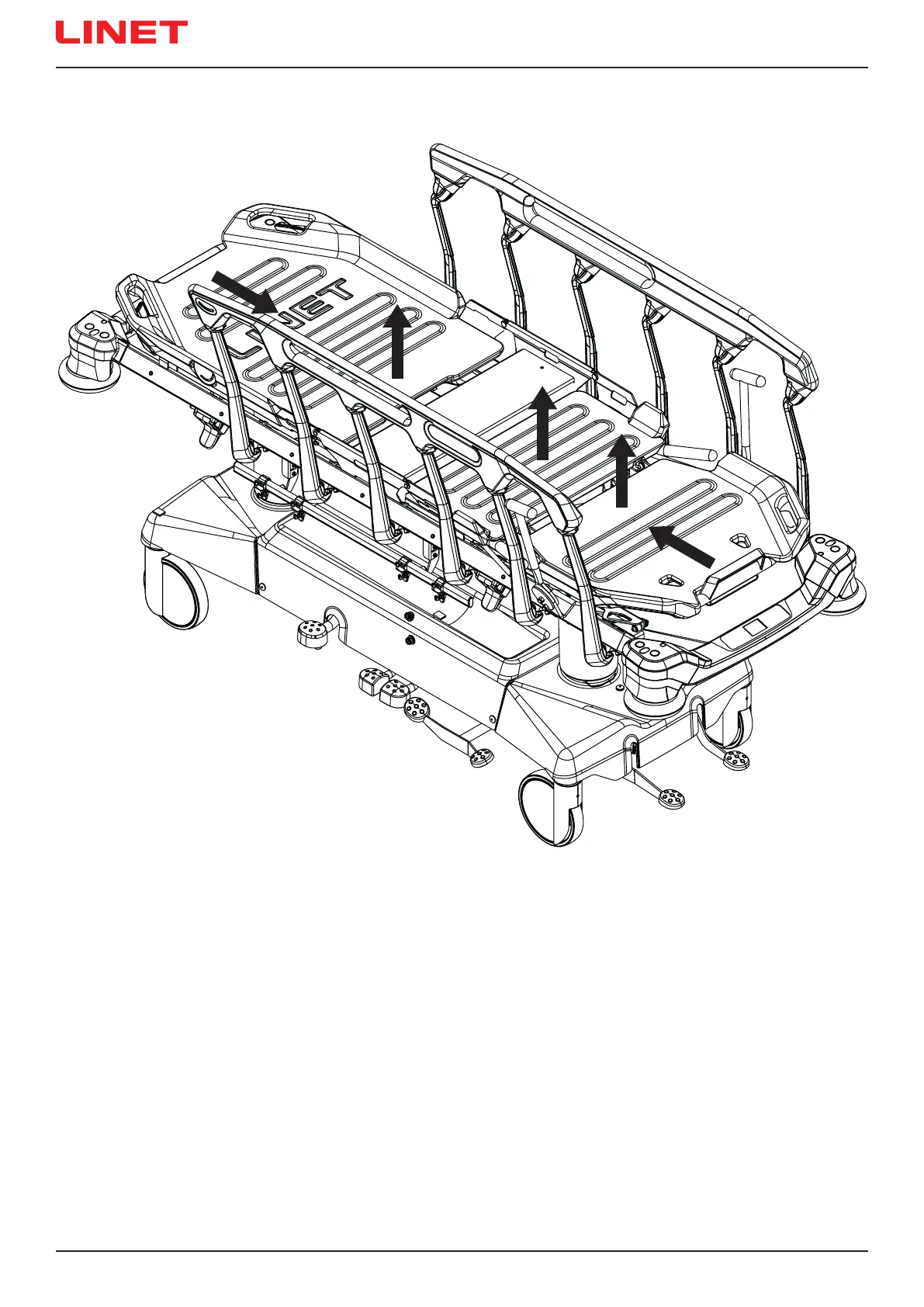

Fig. Instructions to remove the plastic mattress support platform covers

To remove Backrest plastic cover:

► Grasp the end of the Backrest plastic cover next to the Seat section and lift the Backrest plastic cover up.

► Pull the Backrest plastic cover towards the Seat section.

To remove Calfrest plastic cover:

► Grasp the end of the Calfrest plastic cover next to the Thighrest plastic cover and lift the Calfrest plastic cover up.

► Pull the Calfrest plastic cover towards the Thighrest plastic cover.

To remove Thighrest plastic cover:

► Lift the Thighrest plastic cover up.
