D9U001ES2-0101_05

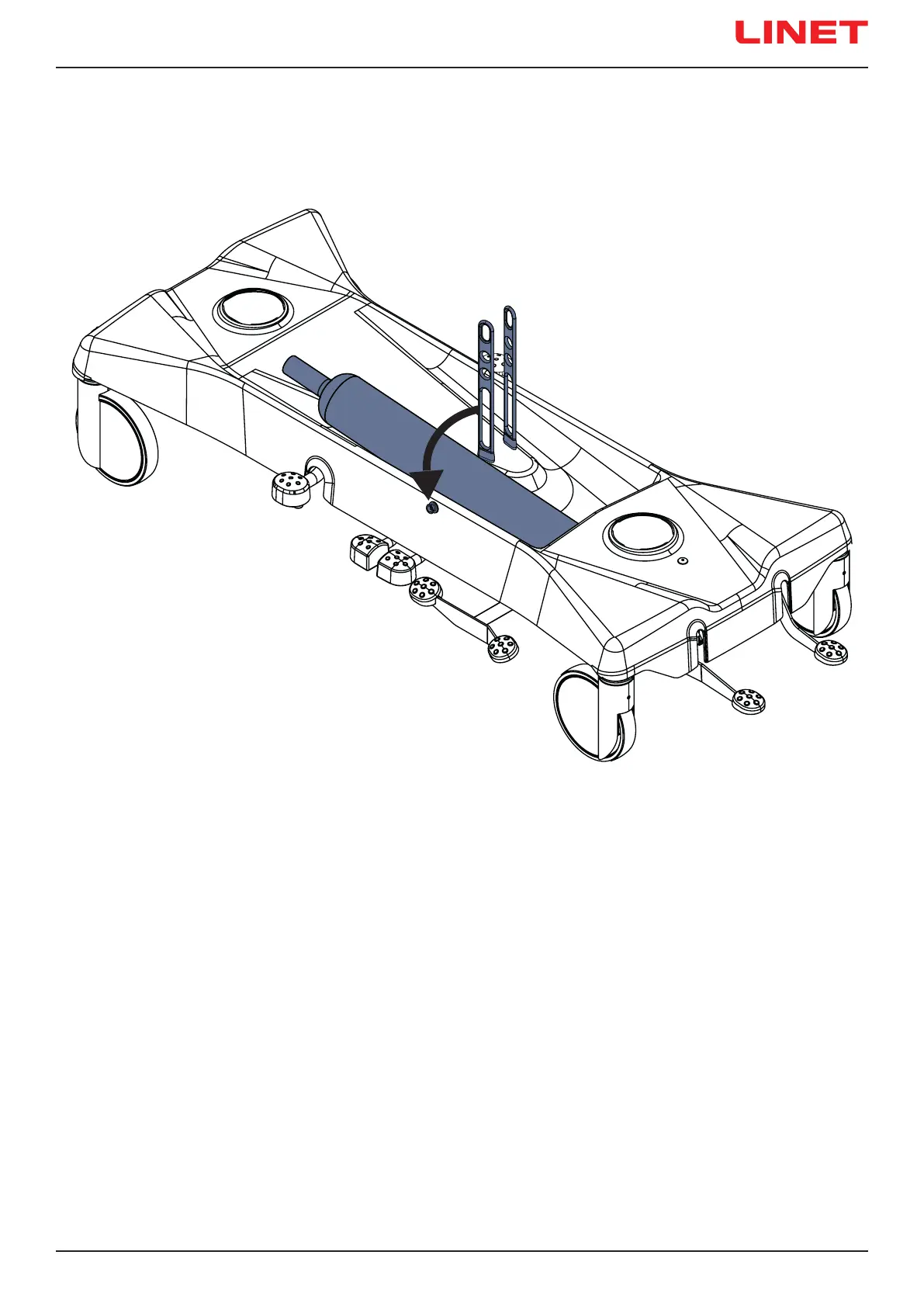

Fig. Fixation of an oxygen bottle on the undercarriage cover with straps for oxygen bottles

17.4.1 Straps for oxygen bottles

Undercarriage cover of the Sprint 200 without i-Drive Power is equipped with 2 straps for oxygen bottles.

Undercarriage cover of the Sprint 200 with i-Drive Power is equipped with 1 strap for oxygen bottle.

To x the compatible oxygen bottle on the undercarriage cover:

► Place a compatible oxygen bottle to the undercarriage cover.

► Fix the oxygen bottle with the strap for oxygen bottle so that the strap for oxygen bottle will be hooked onto the stopper

located on the undercarriage cover opposite the strap.

► Ensure the compatible oxygen bottle is xed on the undercarriage cover.
