363-206-285 Circuit Order: NTP-029
Issue 2, February 2000 Page 13 of 22
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED . . . . .FOR DETAILS, GO TO
19. At Node 1, install optical splitter in optical line between Node 1
MAIN 1 IN and Node 2 MAIN 1 OUT as shown in Figure 9.

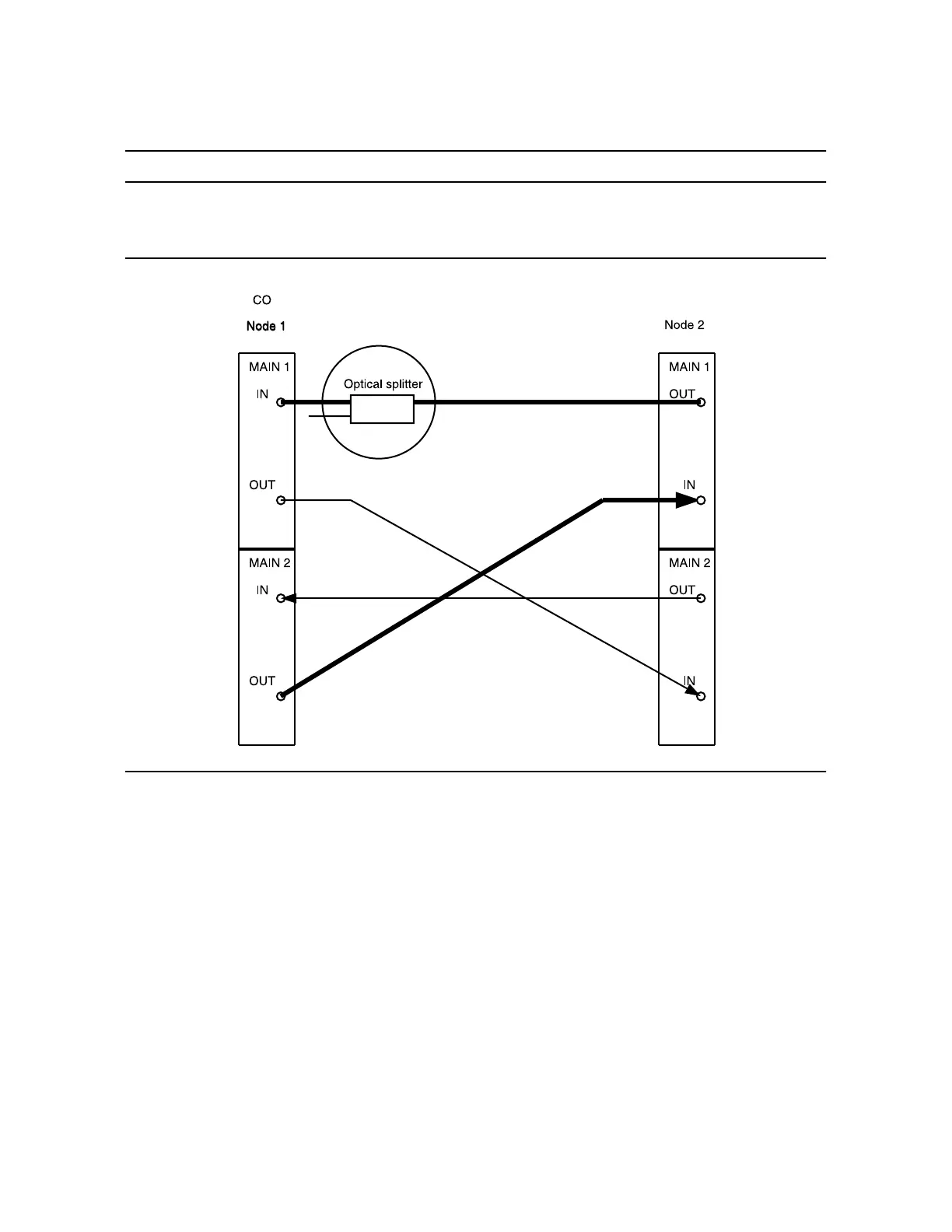

Figure 9 – DDM-2000 OC-3 Point-to-Point to Ring Upgrade
