363-206-285 Circuit Order: NTP-029
Issue 2, February 2000 Page 15 of 22
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED . . . . .FOR DETAILS, GO TO
21. Disconnect optical fiber from Node 1 MAIN 2(P) IN and connect
remaining optical splitter output to MAIN 2(P) IN. (See Figure 11.)

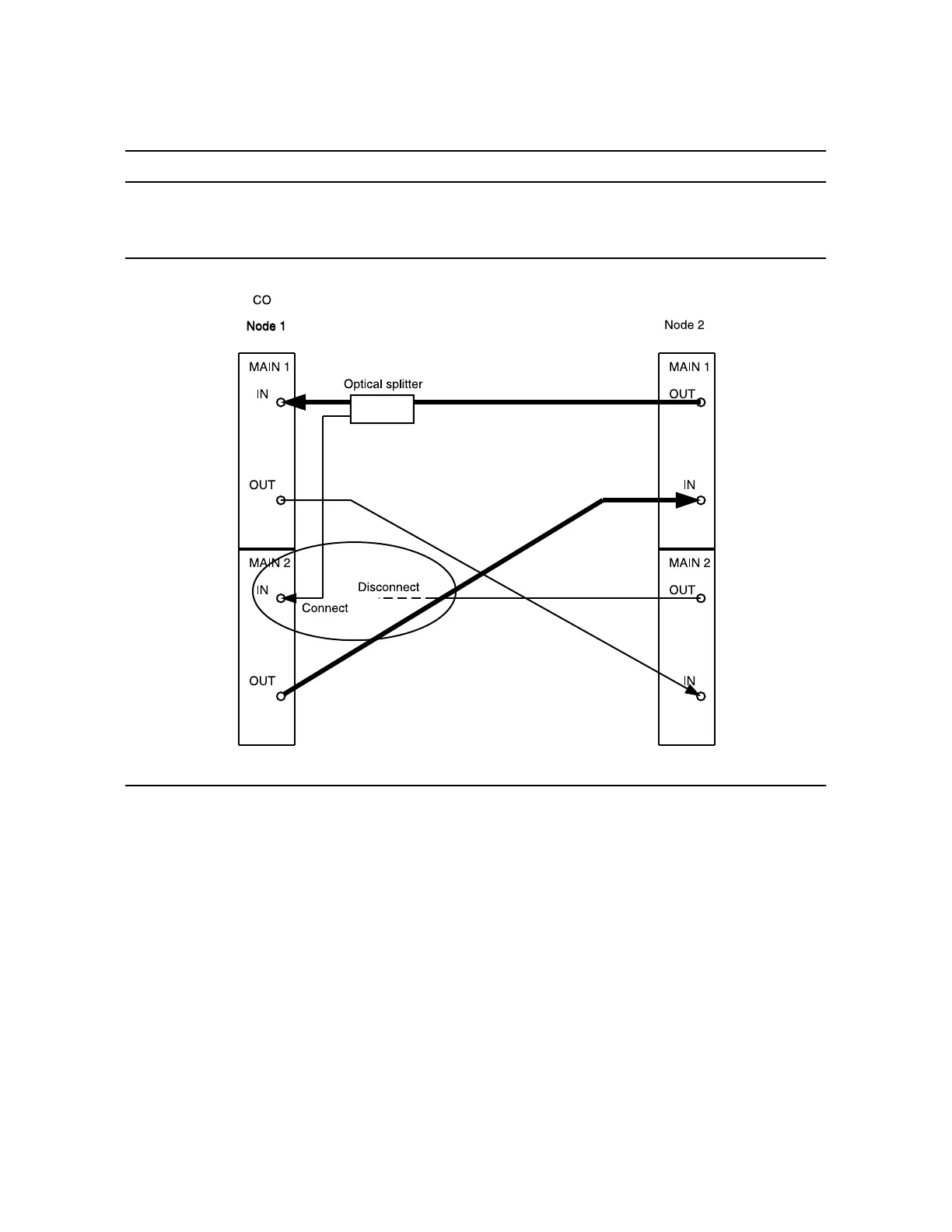

Figure 11 – DDM-2000 OC-3 Point-to-Point to Ring Upgrade
