363-206-285 Circuit Order: NTP-039
Issue 2, February 2000 Page 17 of 32
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED . . . . .FOR DETAILS, GO TO
22. Disconnect optical fiber from Node 1 MAIN 2(P) IN and connect
remaining optical splitter output to MAIN 2(P) IN. (See Figure 12.)

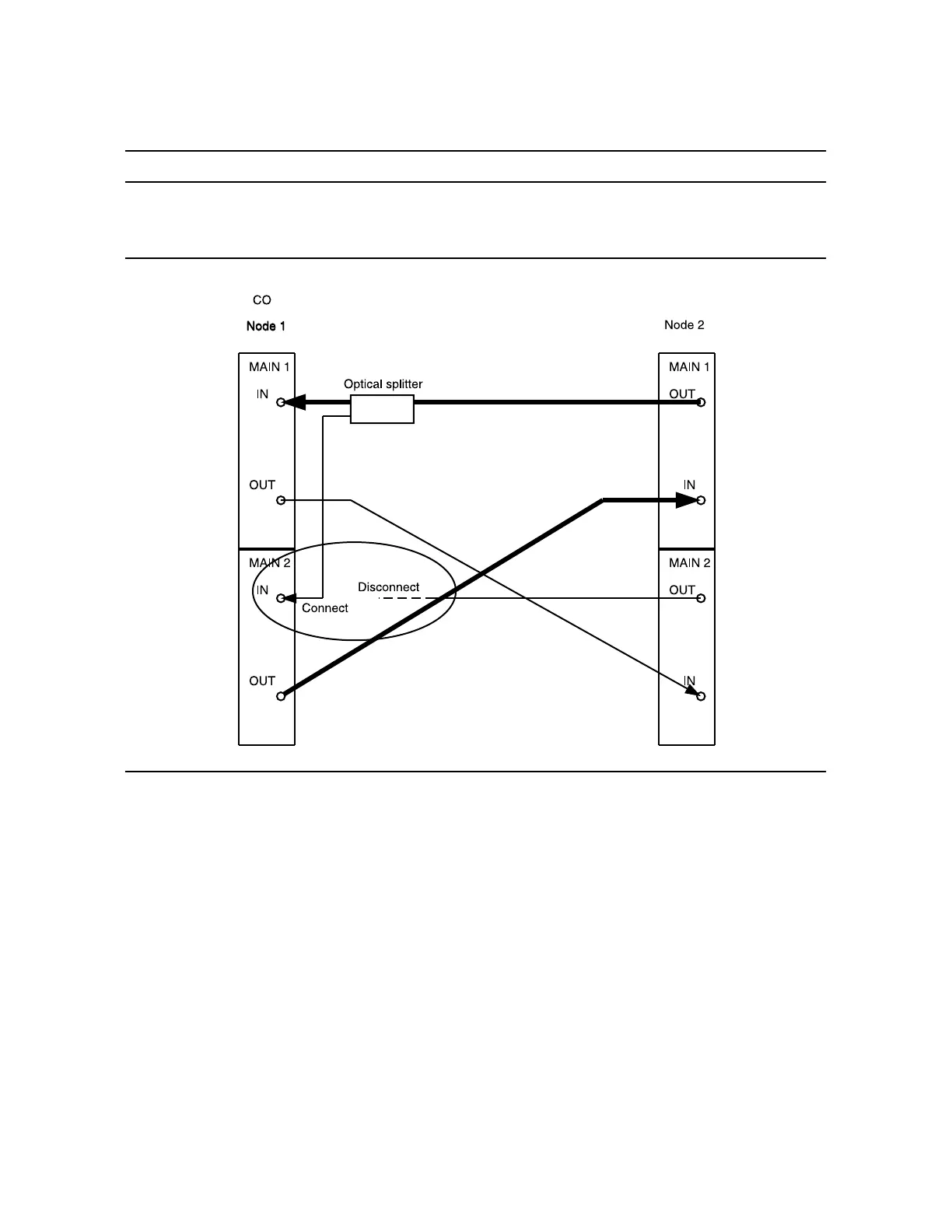

Figure 12 – DDM-2000 OC-3 Drop or Add/Drop Network to Ring Upgrade
To Next Page
