363-206-285 Circuit Order: NTP-039
Issue 2, February 2000 Page 29 of 32
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED . . . . .FOR DETAILS, GO TO
49. Repeat this procedure from Step 38 for all remaining nodes to be
converted. Figure 22 shows the completed ring configuration.

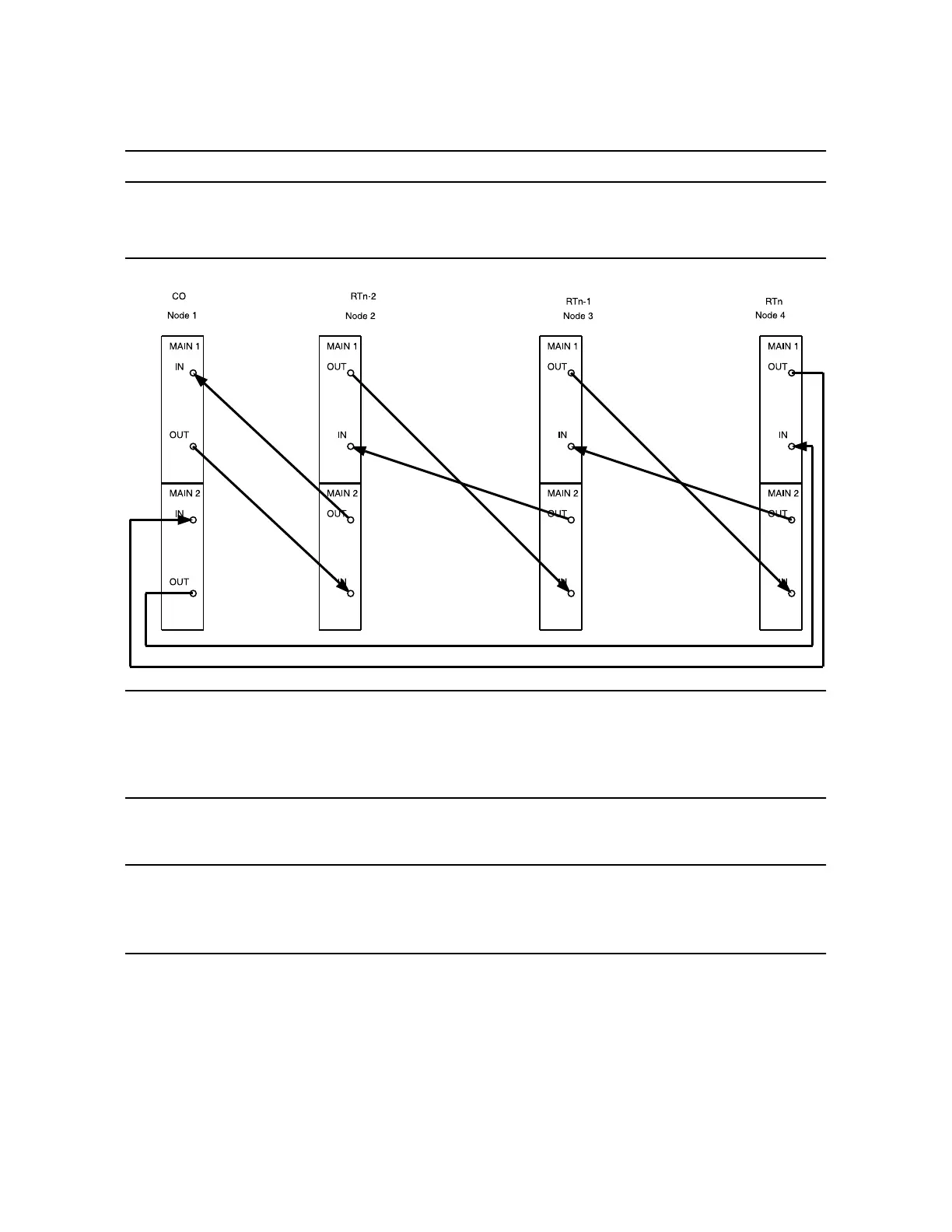

Figure 22 – DDM-2000 OC-3 Drop or Add/Drop Network to Ring Upgrade
50. Use set-fecom:dcc-all:com=enabled command at all
nodes to enable far-end communications (fecom).
51. What Release of software is installed in the system?
If Release 15 software is installed, continue with Step 52.
If Release 13 software is installed, proceed to Step 53.
To Next Page
