363-206-285 Detailed Level Procedure: DLP-513
Issue 2, February 2000 Page 17 of 20
DDM-2000 OC-3 MULTIPLEXER
BBF8 HDSL
28. Determine circuit pack option switch settings from office records or work order.
29. Set HDSL option switches per Table M and Figure 8.
30. STOP. YOU HAVE COMPLETED THIS PROCEDURE.

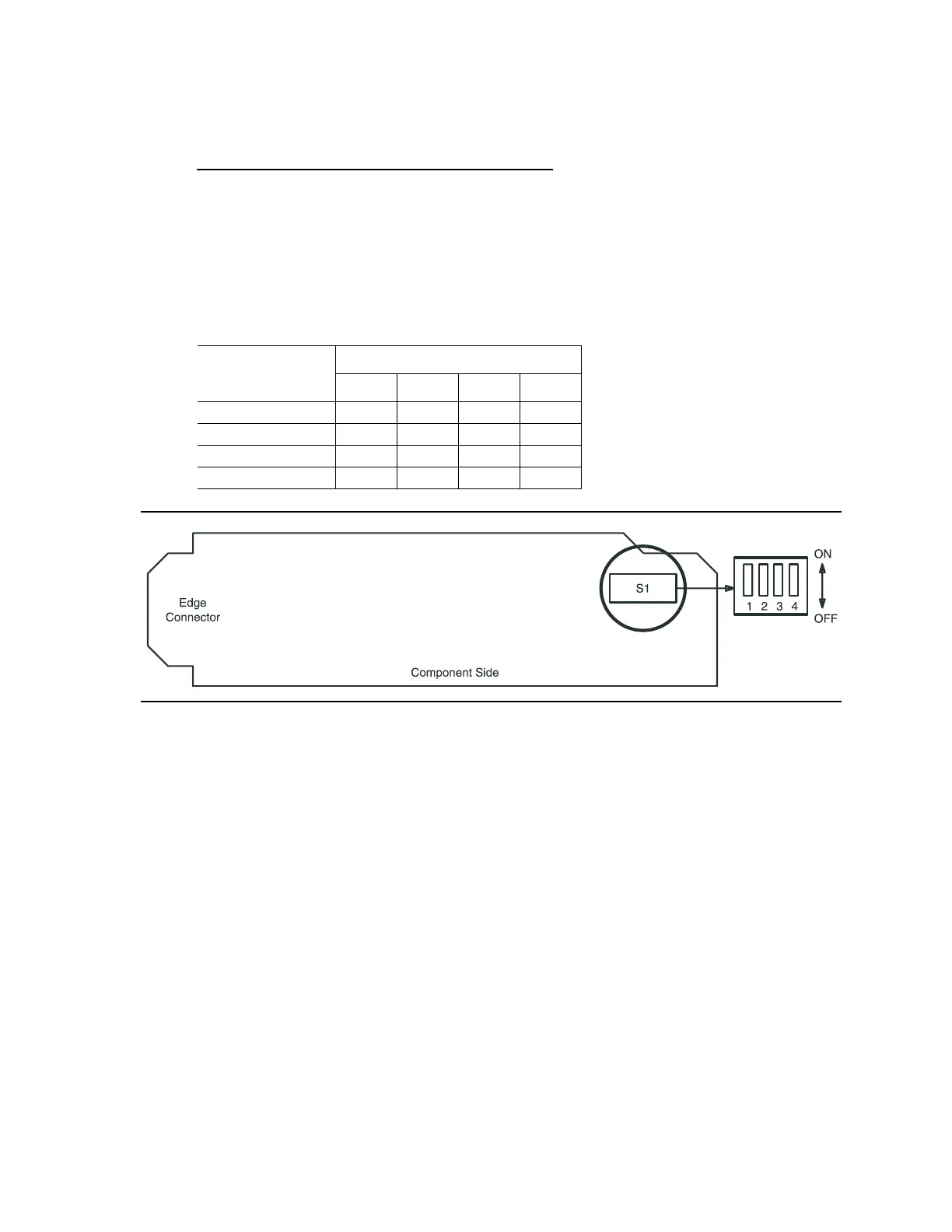

Figure 8 – BBF8 HDSL Control Switch
Table M – HDSL Control Switch Settings
Control Settings
Switch S1 Settings
S1-1 S1-2 S1-3 S1-4
Master — OFF — OFF
Slave — ON — ON
Local OFF — OFF —
Remote ON — ON —
