363-206-285 Detailed Level Procedure: DLP-523
Issue 2, February 2000 Page 6 of 30
DDM-2000 OC-3 MULTIPLEXER
Refer to Table C and Figure 1 and set the timing mode as required for the new
BBF2 TGS circuit pack(s).

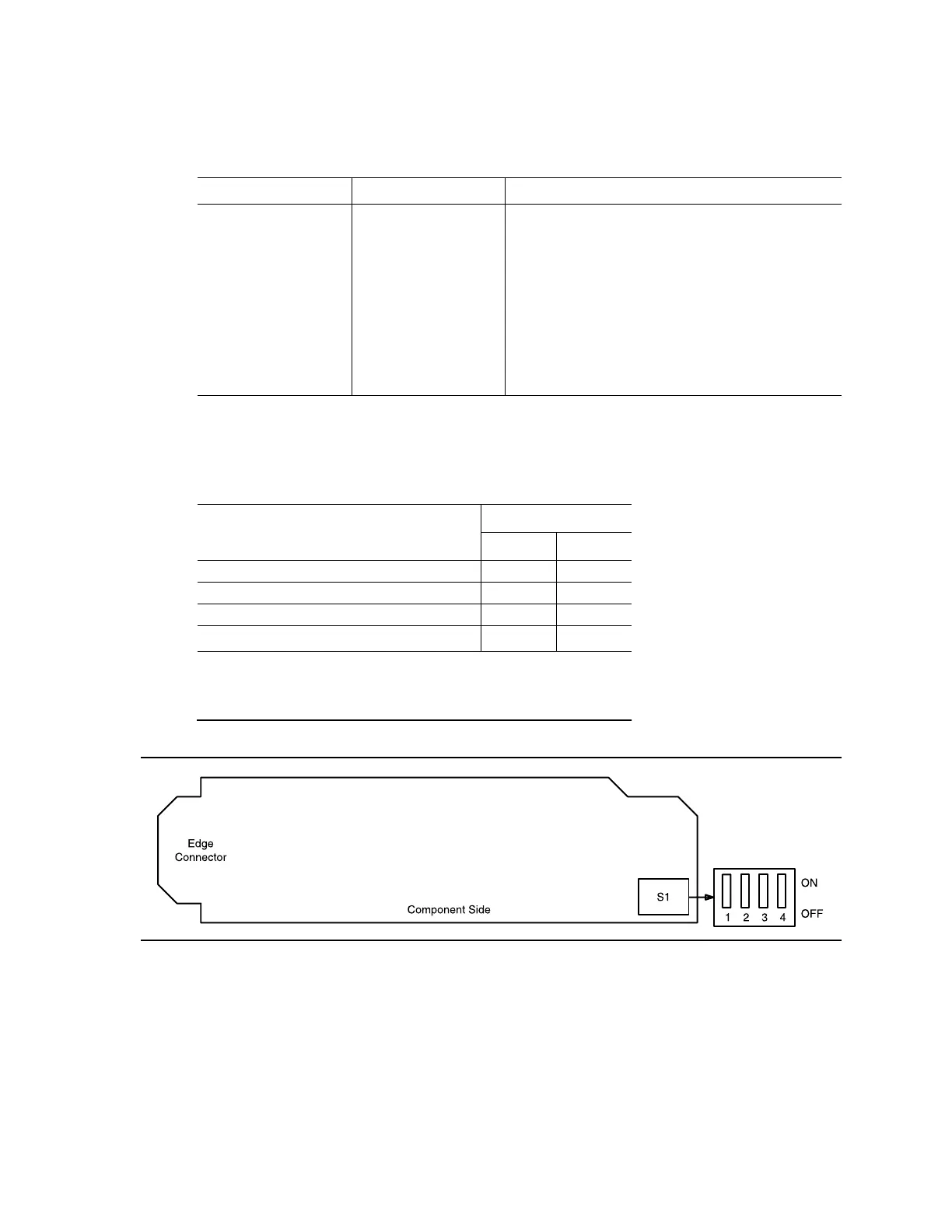

Figure 1 – BBF2 TGS Option Switch
Line Timing Line Timing Caution! This topology creates a timing loop and it
is not. supported. The NE with access to an
external timing reference traceable to a PRS, if
available, should be provisioned for External - Mult.
If the reference available is an optical reference
provision to Line Timing with the proper source
using the set-sync command. If automatic
synchronization reconfiguration is supported and
enabled in a system, both NEs will attempt to
switch to another line timing source, if available, to
prevent a timing loop.
Table C – BBF2 TGS Timing Mode Switch Setting
Timing Mode
Switch S1 Settings
S1-3 S1-4
Free Running ON ON
DS1 External, MULT Mode OFF ON
Line Timed ON OFF
Invalid
*
* If an invalid setting is selected, FAULT LED is lighted and
an unexpected CP type or unexpected CP
switches alarm is generated.
OFF OFF
Table B – BBF2 TGS Synchronization Provisioning Topologies (Contd)
NE 1 NE 2 Application Comments
