Lucent Technologies DDM-2000 OC-3 - Page 2303

363-206-285 Detailed Level Procedure: DLP-537
Issue 2, February 2000 Page 1 of 6
DDM-2000 OC-3 MULTIPLEXER
Check 197A BATTERY LOAD TEST SET
1. Obtain 197A BATTERY LOAD TEST SET. SeeFigure 1.

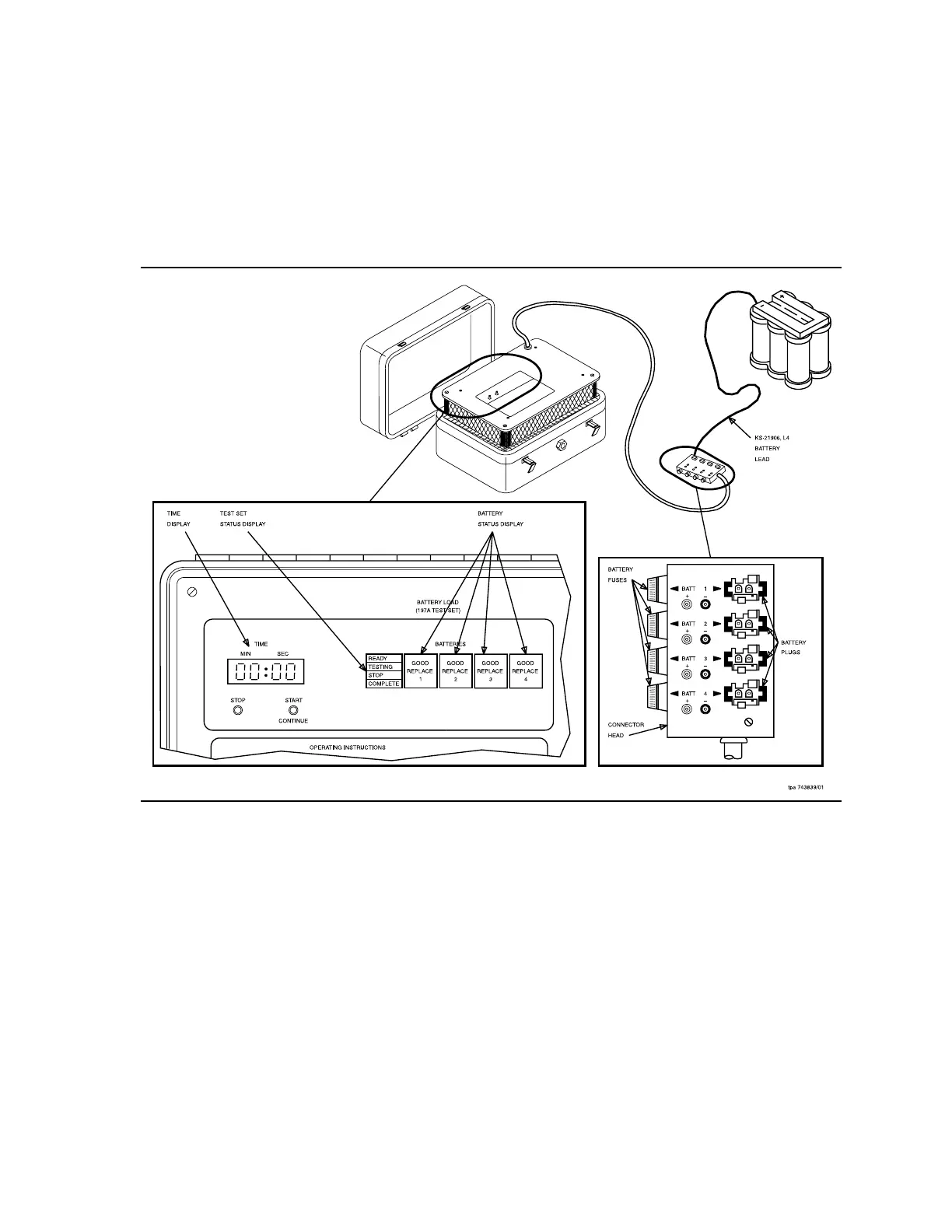

Figure 1 – 197A Battery Load Test Set Arrangement
2. Remove cover from test set.
3. At test connector head, verify battery fuse holders each contain a 20 Amp
fast-blow fuse.
4. Obtain one KS-21906, L4 battery.
