Lucent Technologies DDM-2000 OC-3 User Manual

363-206-285 Detailed Level Procedure: DLP-546
Issue 2, February 2000 Page 16 of 20
DDM-2000 OC-3 MULTIPLEXER

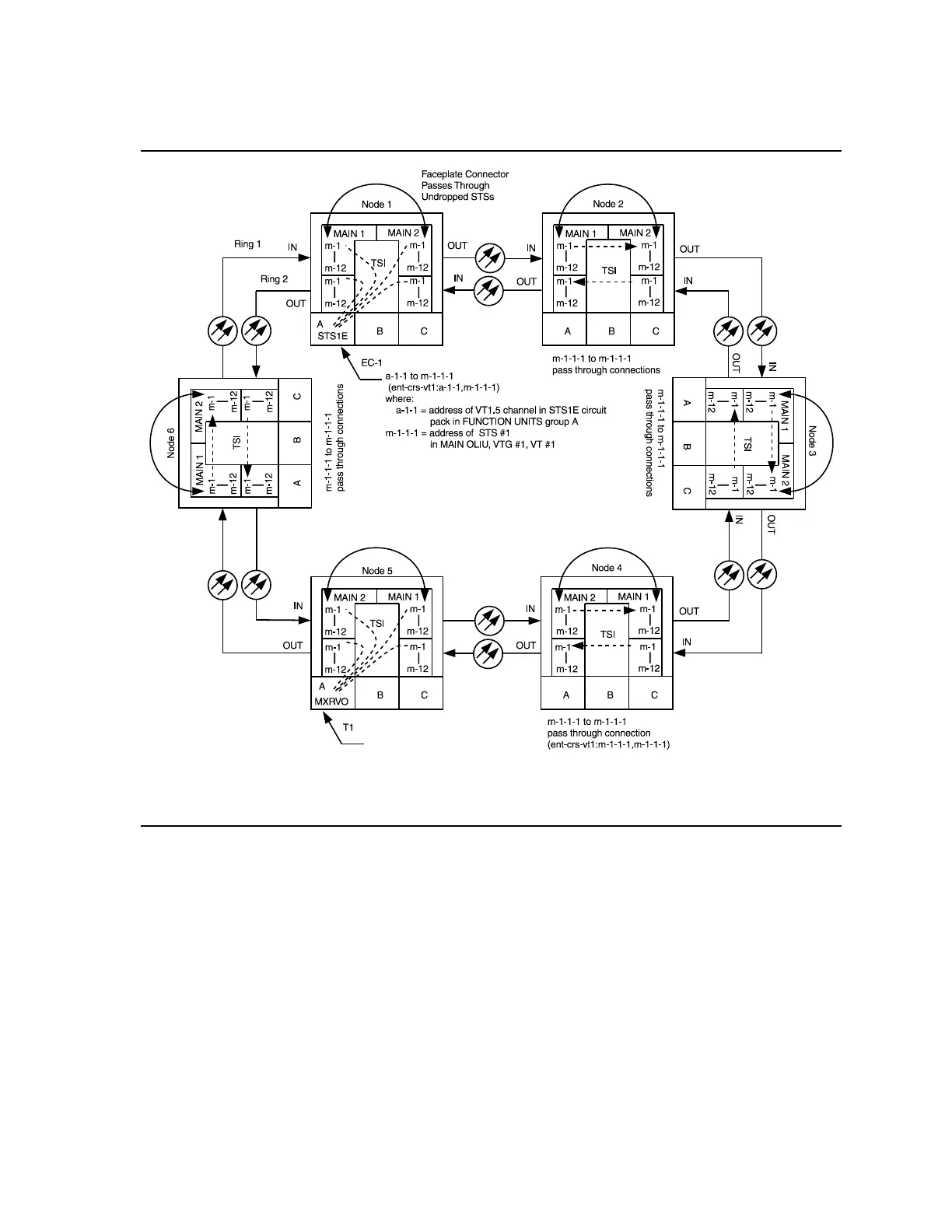

Figure 13 – Path Protected Ring OC-12 Network (OC-3 with OC-12 Optics) (T1 to
EC-1) with VT1.5 Cross-Connections
a-1-1 to m-1-1-1
(ent-crs-vt1:a-1-1,m-1-1-1)
where:
a-1-1 = address of T1 port 1, T1EXT circuit
pack 1 in LOW SPEED GROUP A
m-1-1-1 = address of STS #1 in
MAIN OLIU, VTG #1, VT #1
OC-12 Path Switched Ring with
OC-3 Shelves with OC-12 Optics
