DLP-546: Detailed Level Procedure 363-206-285
Page 17 of 20 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER

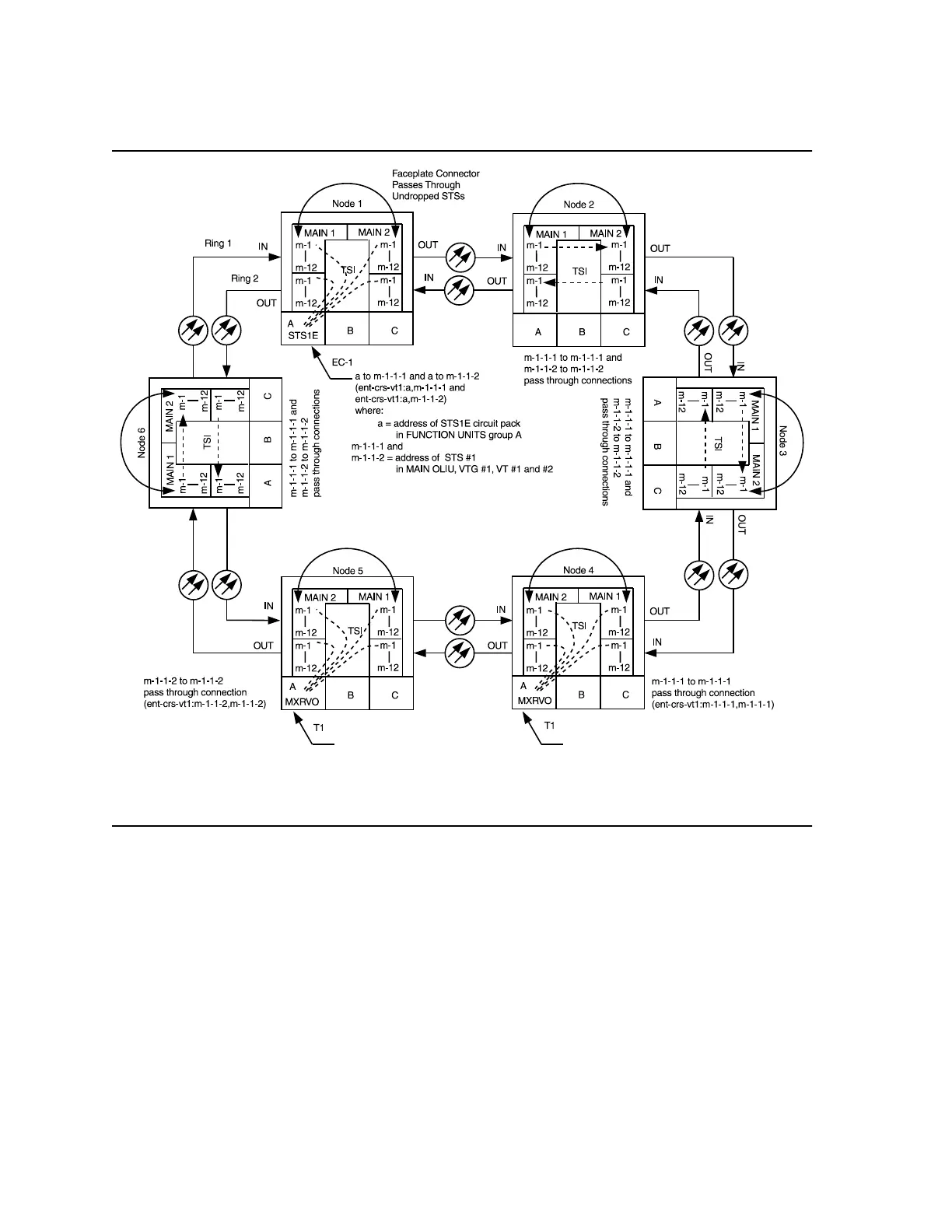

Figure 14 – Path Protected Ring OC-12 Network (OC-3 with OC-12 Optics)
(two T1s to EC-1) with VT1.5 Cross-Connections
a-1-1 to m-1-1-1
(ent-crs-vt1:a-1-1,m-1-1-1)
where:
a-1-1 = address of T1 port 1, T1EXT circuit
pack 1 in LOW SPEED GROUP A
m-1-1-1 = address of STS #1 in
MAIN OLIU, VTG #1, VT #1
a-1-1 to m-1-1-2
(ent-crs-vt1:a-1-1,m-1-1-2)
where:
a-1-1 = address of T1 port 1, T1EXT circuit
pack 1 in LOW SPEED GROUP A
m-1-1-2 = address of STS #1 in
MAIN OLIU, VTG #1, VT #2
OC-12 Path Switched Ring with
OC-3 Shelves with OC-12 Optics
