In Figure 5-23c, the DDM-2000 OC-3 Multiplexer at site C detects the incoming IC
message and sends out the IC message to site D. The DDM-2000 OC-3
Multiplexer at site C cannot switch to line time from the other rotation because it is
receiving the TLB message on that interface.
In Figure 5-23d, the DDM-2000 OC-3 Multiplexer at site D detects the incoming IC
message. Because this DDM-2000 OC-3 Multiplexer is receiving the SQU
message from site A, it will switch to line time from site A because SQU is higher
quality than IC. After the switch occurs, the TLB message is sent back to site A
and the SQU message is retransmitted to site C.

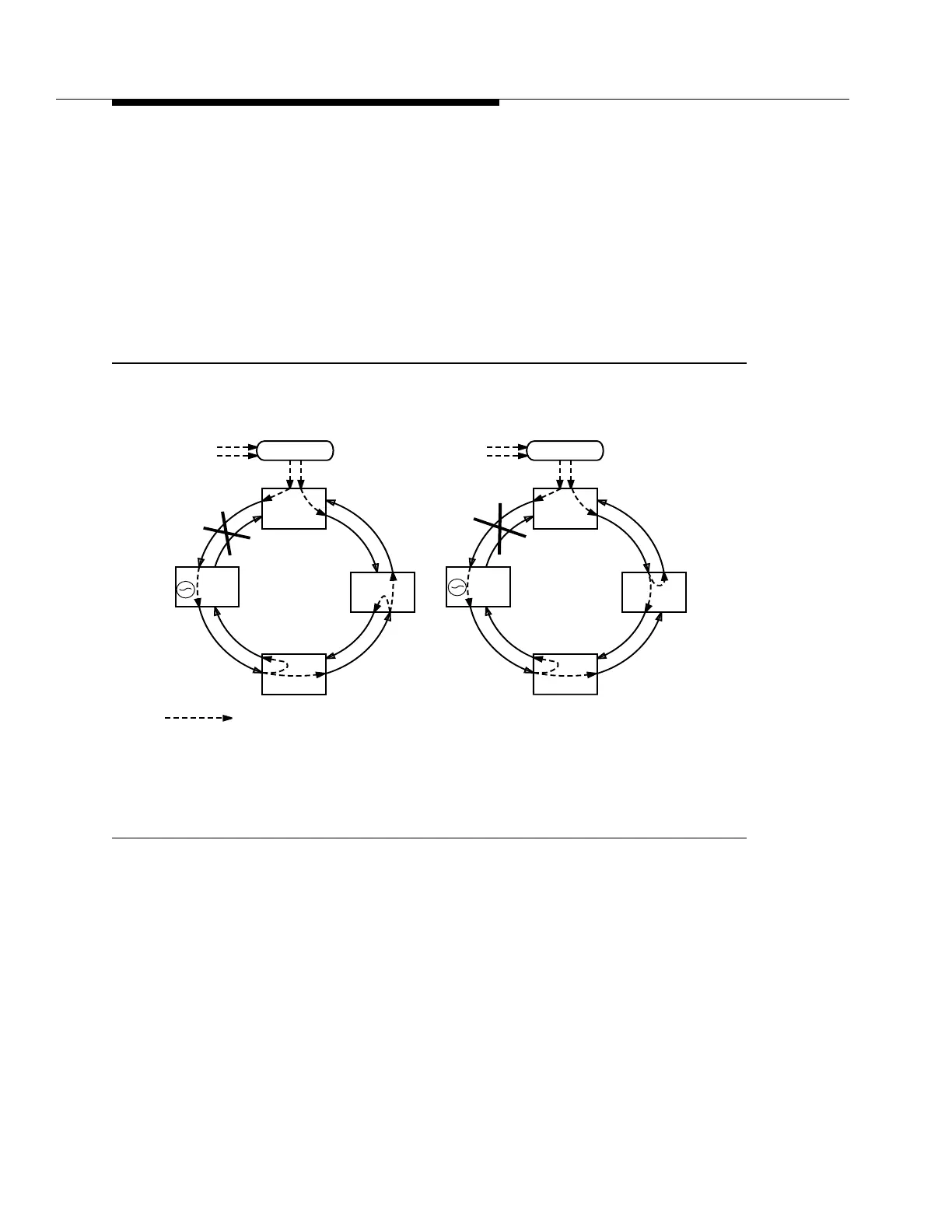

Figure 5-23. Synchronization Reconfiguration — Access Ring (Sheet 2 of 3)
PRS
Traceable
BITS
DDM-2000
DDM-2000
DDM-2000
PRS
Traceable
BITS
Sync Flow
SQU
Site A
Site D
Site B
Site C
SQU
TLB
TLB
SQU
DDM-2000
DDM-2000
SQU
Site A
Site D
Site B
Site C
SQU
TLB
SQU
c) Site C Changes Message
d) Site D Reconfigures
IC
IC
TLB
IC
DDM-2000
DDM-2000
DDM-2000
IC
STRATUM 3 if using a TG3 at Site B, or IC if using a TGS.
*
*
IC
*
