Lucent Technologies DDM-2000 OC-3 User Manual

DLP-564: Detailed Level Procedure 363-206-285
Page 1 of 2 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
Install BBF8 HDSL Circuit Packs
1.
!
CAUTION:
Take care to avoid damaging the LEDs that protrude through the opening
in the faceplate of the DS1/DS1PM circuit pack.
NOTE:
To set switch to ON, depress rocker or slide switch toward side labeled
ON in the figure. To set switch to OFF, depress rocker or slide switch
toward side labeled OFF in the figure.
Refer to Figure 1 and Table A and set option switches.

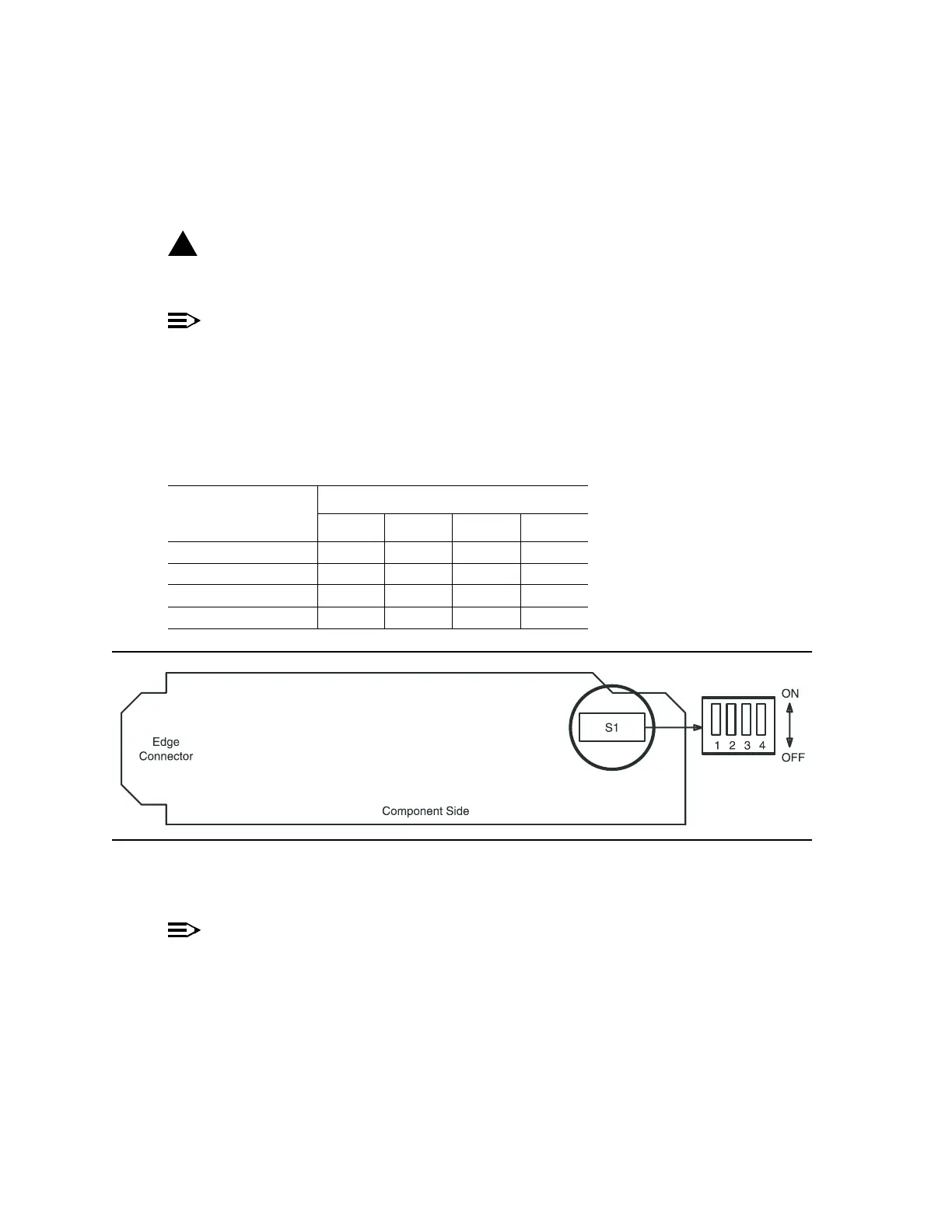

Figure 1 – BBF8 HDSL Control Switch
2.
NOTE:
A maximum of three HDSL circuit packs, including protection, can be
installed with current BBG2 MXRVO circuit packs installed in the
associated LOW SPEED group.
Table A – HDSL Control Switch Settings
Control Settings
Switch S1 Settings
S1-1 S1-2 S1-3 S1-4
Master — OFF — OFF
Slave — ON — ON
Local OFF — OFF —
Remote ON — ON —
