4.8 CONTROL LEVERS AND PEDALS M A E D A Crawler Crane
4-44 5/2020 CC1908S-1

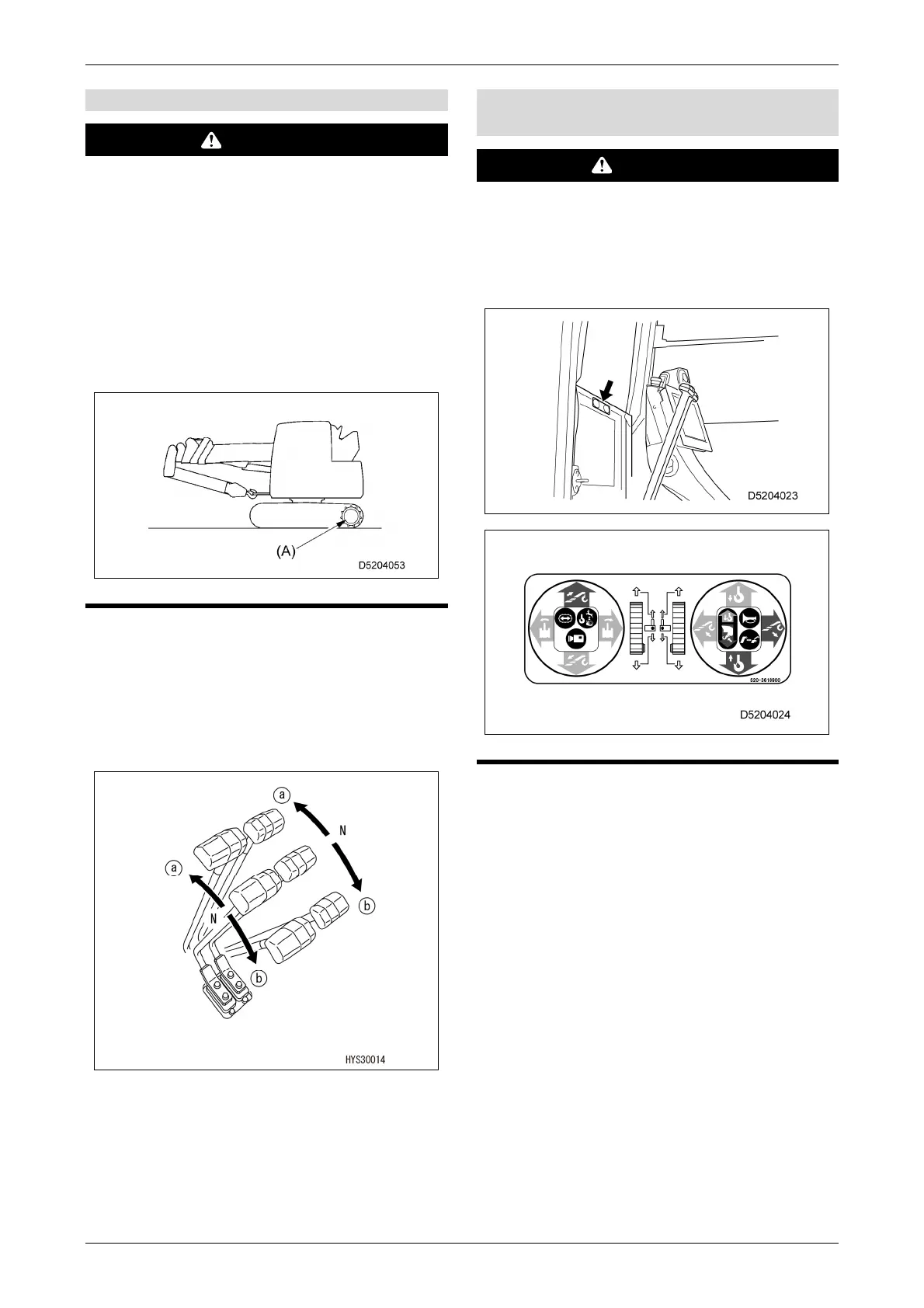

[2] Travel levers
WARNING
• When the sprocket (A) side is at the rear, the
track frame faces forward. When the track
frame faces rearward, the direction of travel
lever operation is opposite to the direction
of machine movement (both forward and
backward movement and right and left
movement).
When operating the travel levers, be sure to
check if the track frame is facing forward or
backward.
Use these levers to move the machine
forward/backward, stop, change direction, and
adjust the travel speed.
(a) Forward: Push the levers forward.
(b) Reverse: Pull the levers toward you.
(N) Neutral: Release your hand from the levers.
When the travel levers are moved from the
neutral position to forward or reverse, an
alarm sounds to warn that the machine will
start moving.
[3] Left-hand control lever
[4] Right-hand control lever
WARNING
• The operation pattern is set in accordance
with the standard operation method (ISO
pattern). If you wish to change the operation
pattern, please contact us or our sales
service agency.
