5.9 FLY JIB (OPTION) M A E D A Crawler Crane
5-62 5/2020 CC1908S-1

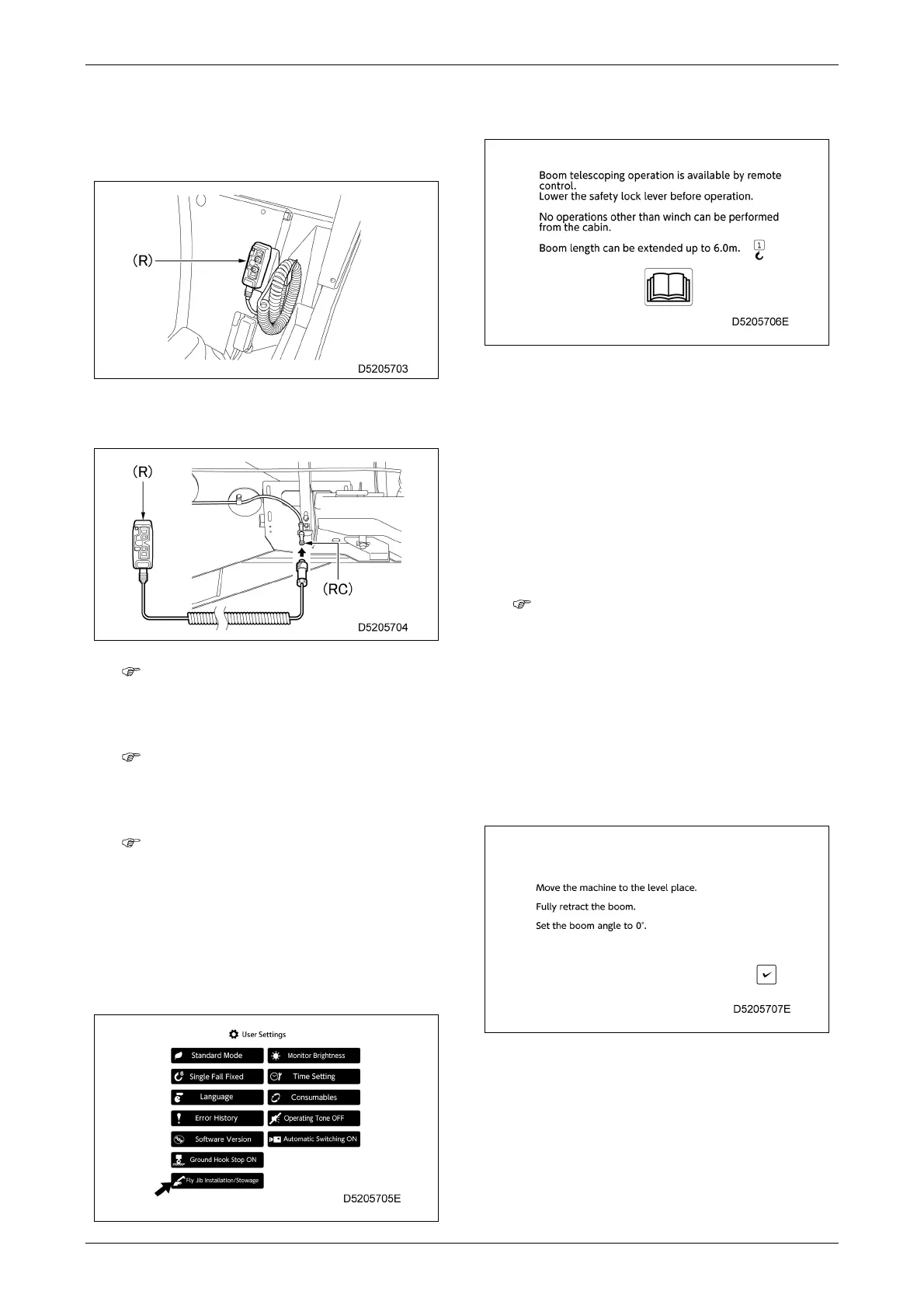

3. Take the fly jib remote controller (R) from
inside the cab.
The fly jib remote controller (R) is located
above the fuse box inside the cab.
4. Connect the fly jib remote controller (R) to
the remote control connector (RC).
For safety, operations other than
winding up and winding down are not
possible from inside the cab when the
fly jib remote controller is connected.
A magnet is fitted to the rear of the fly
jib remote controller, allowing it to be
attached to the machine body when not
in use.
Do not attach the fly jib remote
controller to the machine body where
the fly jib moves. Otherwise there is a
risk of it becoming trapped and
damaged.
5. Start the engine.
6. Select "Fly Jib Installation/Stowage" mode
on the User Settings screen.
The fly jib remote controller can be used only
while the following screen is displayed:
• Boom telescoping is possible using the
fly jib remote controller.
• Lower the safety lock lever before
operating.
• Operations other than winching are not
possible from inside the cab.
• The boom can be extended to a length of
6.0 m.
Telescoping will stop if an excessive load
is applied while telescoping the boom.
Check that the pins are properly attached
and not impeding telescoping.
If the machine is not in the correct
posture, the machine status recheck
screen will appear. If the following
screen appears, repeat the procedure
from step 1 to configure the machine in
the correct posture. The fly jib remote
controller must be disconnected from
the connector in order to operate the
crane. Touch ✓ after configuring in the
correct posture to display the screen
allowing the fly jib remote controller to
be used.
7. Place the lock lever in the free position (F).
