6.16 INSPECTION M A E D A Crawler Crane
6-32 5/2020 CC1908S-1

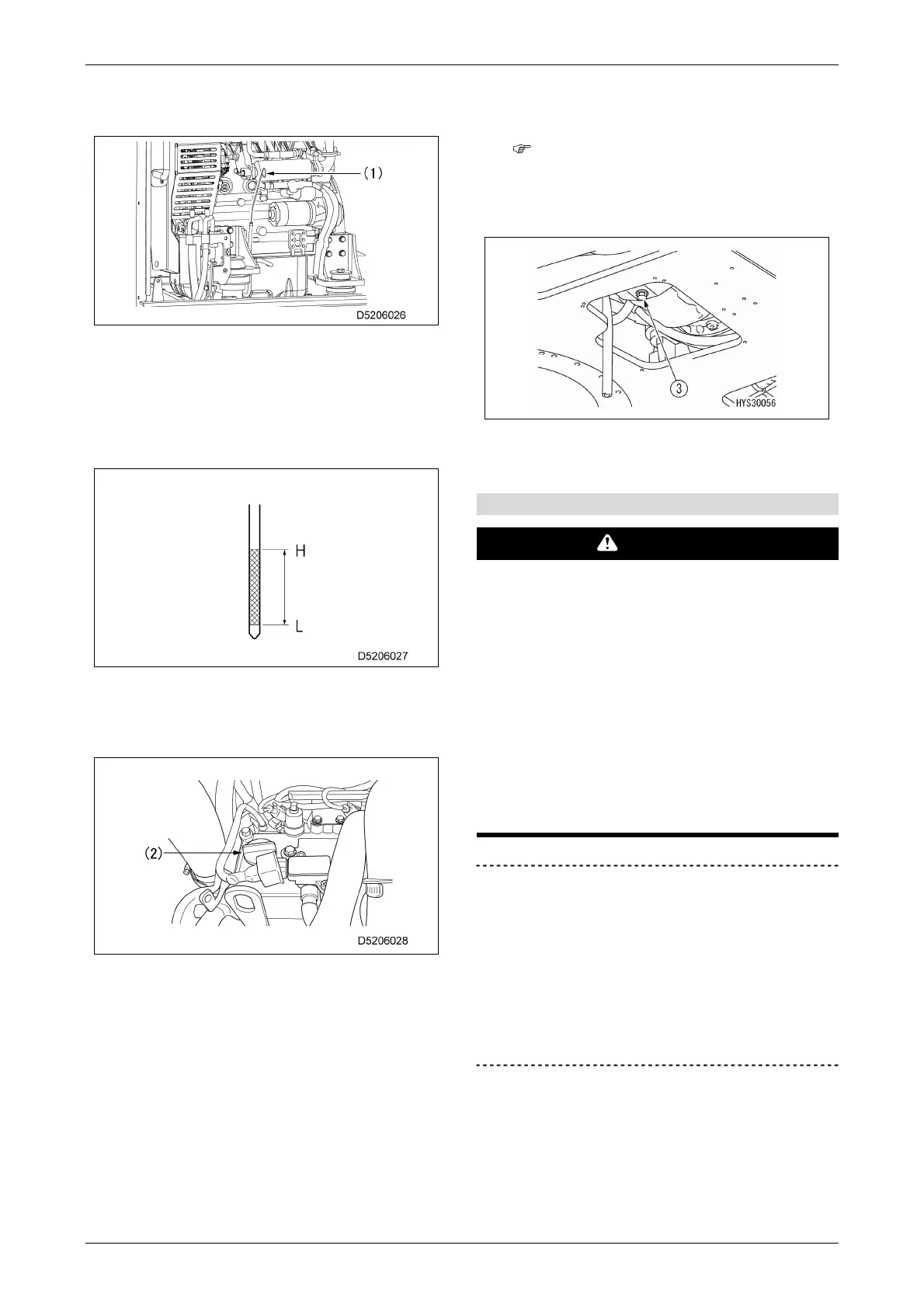

3.
Pull out the oil level gauge (1), and wipe off
the oil with a cloth.
4.
Insert the oil level gauge (1) into the gauge
guide as far as it will go, then pull it out.
5.
If the oil level is between the "H" mark and "L"
mark on the oil level gauge (1), the oil level is
normal.
6.
If the oil level is below the "L" mark, remove
the orange oil inlet cap (2) and replenish the
engine oil via the oil inlet opening.
7.
After refilling with oil, securely reattach the oil
level gauge (1) and oil inlet cap (2).
If the oil level is above the "H" mark,
remove the under cover below the
engine, drain the excess amount via the
drain bolt (3), and check the oil level
again.
8.
Close the machinery cover.
[3] Fuel level inspection/refilling
DANGER
• Be extremely careful of naked flames,
including cigarettes.
• Always stop the engine before refuelling.
Refuelling while the engine is running may
cause leaked fuel to be ignited by hot parts
such as the exhaust pipe.
• Overfilling with fuel will cause fuel to spill
and is therefore dangerous. Do not fill above
the specified upper limit level.
Always wipe away any fuel spills.
• Securely close the tank cap after refuelling.
IMPORTANT
• For details on the fuel used, refer to “6.5.1
USE OF FUEL AND LUBRICATING OIL
DEPENDING ON TEMPERATURE" on P.
6-11.
• Be careful to avoid allowing any foreign
matter into the oil inlet opening when
refuelling.
1.
Stop the machine on a level surface.
To Next Page
