M A E D A Crawler Crane 3.3 RATED TOTAL LOAD CHARTS
5/2020 CC1908S-1 3-9
The rated total load charts provide the maximum loads that the crane is capable of hoisting depending on
the boom length by working radius.

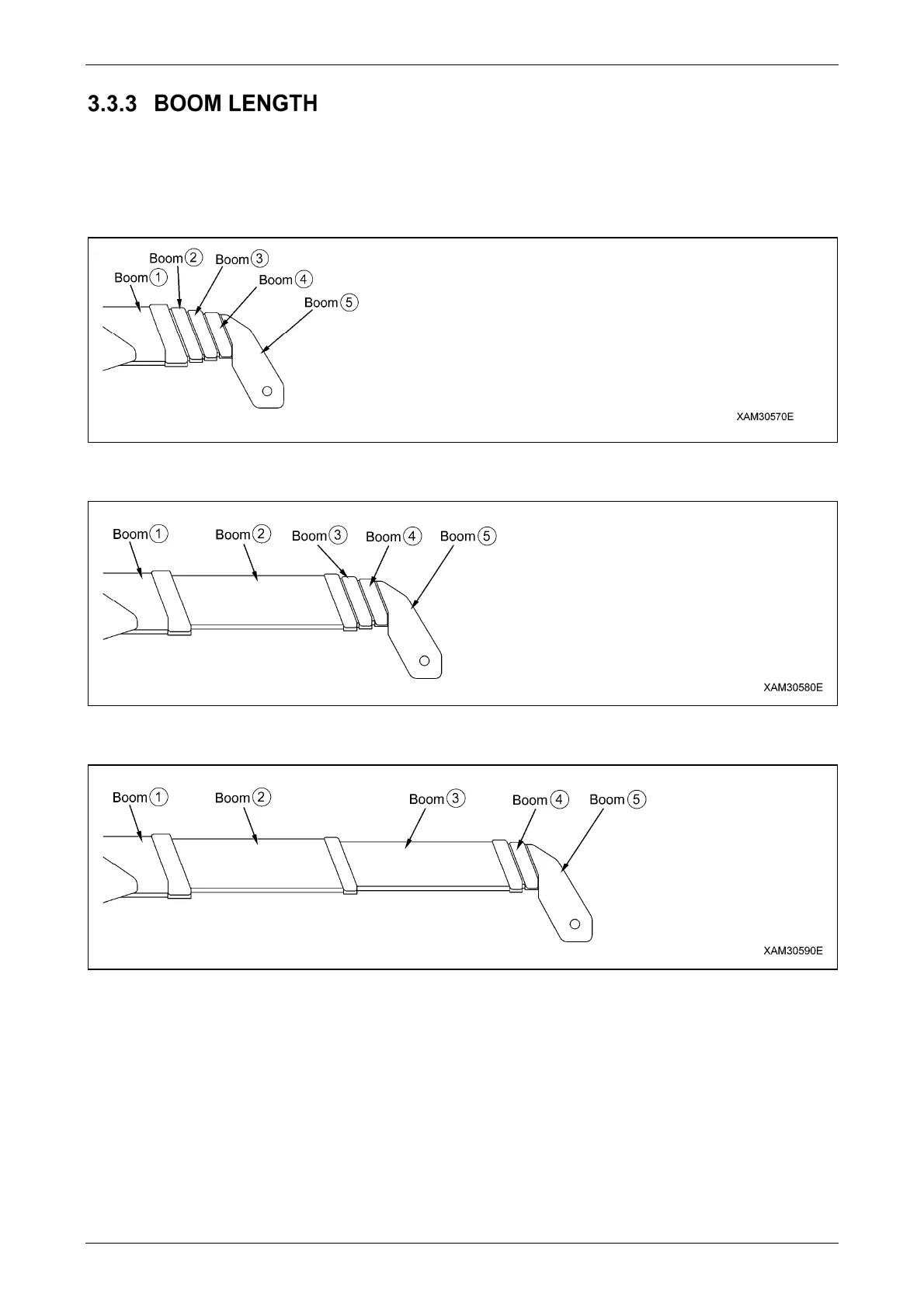

In the rated total load charts, the "5.52 m boom (1)", "8.99 m boom (2)", "12.46 m boom (3)", "15.93 m
boom (4)" and "19.40 m boom (5)" columns at the top denote the respective states of the following figures:
1. "5.52 m boom (1)": All the booms are retracted.
2. "8.99 m boom (2)": Booms (3), (4) and (5) are retracted, while boom (2) alone is fully extended.
If boom (2) is extended even by a small amount, work within the capacity indicated in this column.
3. "12.46 m boom (3)": Booms (4) and (5) are both retracted, while booms (2) and (3) are fully extended.
If boom (3) is extended even by a small amount, work within the capacity indicated in this column.
